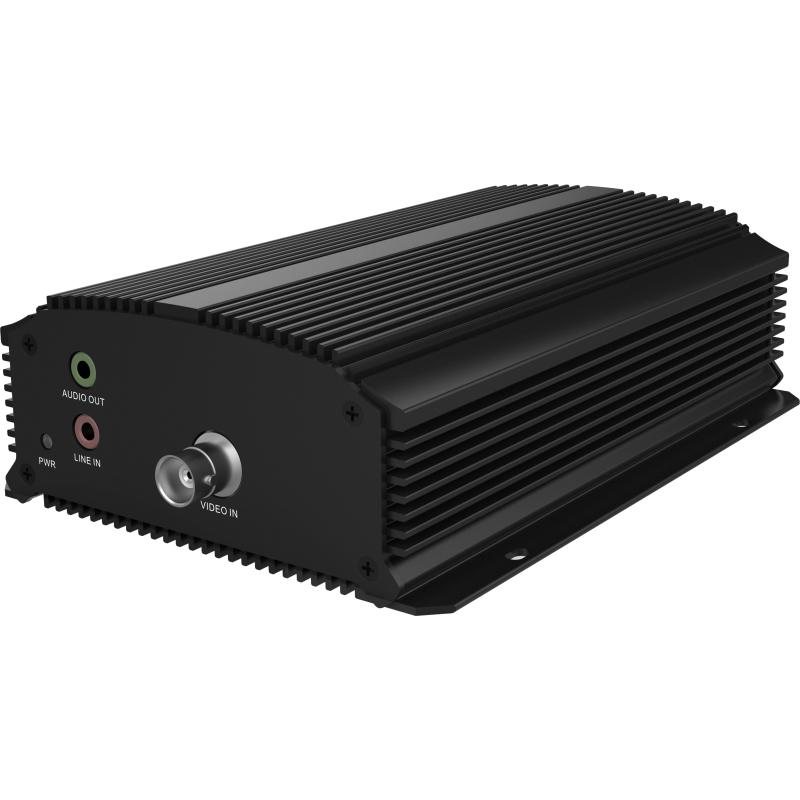

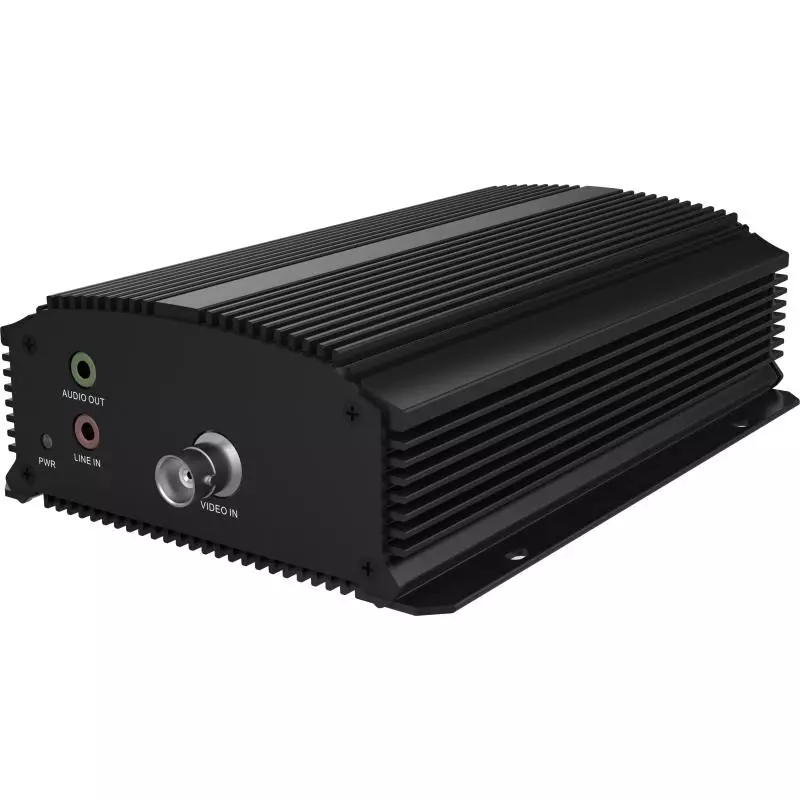

Hikvision DS-6701HUHI

Analog Video Input

1-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

Audio Input

1-ch, 3.5mm interface (2.0 Vp-p, 1 kΩ) (LINE IN);

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)

Synchronous Playback

1-ch

Video Compression

MJPEG (sub-stream)/H.265+/H.265/H.264+/H.264

Frame Rate

Main stream: ;5 MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N);Sub-stream: ;WD1/4CIF/CIF@25fps (P)/30fps (N)

Encoding Resolution

5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Video Bitrate

32 Kbps to 10 Mbps

Dual-stream

Support

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Network Protocol

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS, ONVIF profile S

Network Interface

1, RJ45 10M/100Mself-adaptive Ethernet interface

SD Card

1 Micro SD card slot, support Micro SD card

Capacity

8G Up to 128 GB

Serial Interface

RS-485 (half-duplex); RS-232

Alarm In/Out

1/1

Power Supply

12 VDC, 1.25 A

Consumption

≤ 15W

Working Temperature

-10 °C to +55 °C (+144 °F to +131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

114 × 165 × 48 mm(4.5 × 6.5 × 1.9 inch)

Weight

≤ 1.5 kg (3.3 lb)
