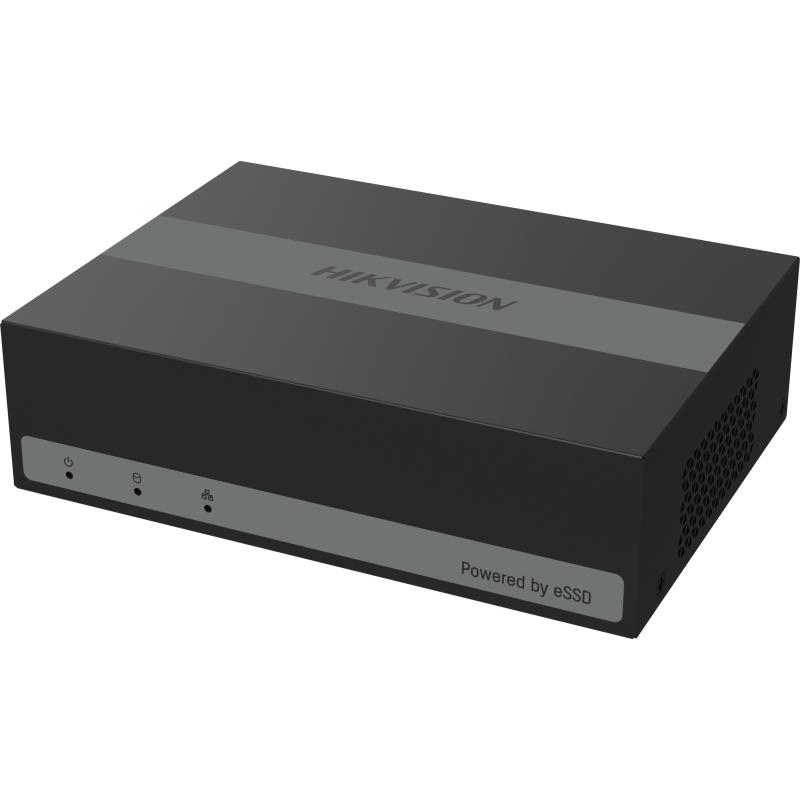

Hikvision iDS-E04HQHI-B

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;;Quick search by object or event type is supported;

Human/Vehicle Analysis

Up to 2-ch

IP Video Input

1-ch ;Up to 6 MP resolution;Support H.265+/H.265 IP cameras

Analog Video Input

4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fsp, 720p@50 fps, 720p@30 fps, 720p@25 fps

AHD Input

4 MP/30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

4 MP/30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

4-ch via coaxial cable

Audio Output

1-ch via HDMI

Synchronous playback

4-ch

Video Compression

H.265 Pro/H.265

Encoding Resolution

When 1080p Lite mode is not enabled:;3K Lite/5 MP Lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;;When 1080p Lite mode is enabled:;3K Lite/5 MP Lite/4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:;When 1080p Lite mode not enabled:;For 3K stream access: 3K Lite@12 fps; 4 MP Lite/1080p@15 fps;;720p/WD1/4CIF/VGA/CIF@20 fps;For 5 MP stream access: 5 MP Lite@12fps; 4 MP Lite/1080p@15 fps;;720p/WD1/4CIF/VGA/CIF@20 fps;For 4 MP stream access: 4 MP Lite/1080p@15 fps; 720p/WD1/4CIF/VGA/CIF@25 fps;(P)/30 fps (N);For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps;(N);For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N);When 1080p Lite mode enabled:;3K Lite/5 MP Lite@12fps; 4 MP Lite@15 fps; 1080p Lite/720p;Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N);*: 3K Lite/5 MP@12 fps is only available for channel 1.;Sub-stream:;WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video Bitrate

According to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.

Stream Type

Video, Video & Audio;Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Total Bandwidth

72 Mbps;Incoming bandwidth: 4 Mbps

Remote Connection

32

Network Protocol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Capacity

Built-in 1024 GB eSSD (960 GB available);Note:;The device can store about 4 weeks videos for 4-ch analog cameras (default parameters), this estimation is for reference only

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

OPTIONAL 4/1

Power Supply

12 VDC, 1 A

Consumption

≤ 5.4 W (with eSSD)

Working Temperature

-10 °C to 45 °C (14 °F to 113 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)

Weight

≤ 0.5 kg (with eSSD, 1.1 lb.)
