Hikvision DS-QAE0A240G1-VB6 — 240W 6-Zone аналоговый усилитель
Hikvision DS-QAE0A240G1-VB6 — 240W 6-Zone аналоговый усилитель
По запросу
Запрос цены- Audio
- Frequency Response200 Hz-15 KHz
- THD and SNRTHD: ＜1% (1KHz)
SNR: ≥55 dB - Related Current120mA（Remote emergency MIC),250mA(Connected to 3 zone expansion).
- Max. DistanceRecommend to use CAT-5E FTP , The MAX distance can reach 100 meters.
- Max. Extension Quantity3 PCS
- LINKA RJ45 port used to connect with device»DSQAE0MP0G1/EN / DS-QAE0MP0G2/EN» to
interact with cascaded devices based on 24V related voltage.(communication range=100 meters) - RD INA RJ45 port used to connect with device «DS-QAE0A360G1-V6/EN» to communicate
with the host based on 24 related voltage. (communication range=100 meters) - USBA type-B port used to connect with PC to place voice files (only support MP3 format) .
- Bottom Connection CableA 10PIN flat cable used to connect with zone expander «DS-QAE0MP0G1/ENEX» in
order to select or control more zones
- Interface
- Volume KnobMIC volume control, Voice volume control
- General
- Power15 to 40 VDC, Powered by fire broadcasting host or outer power supply.
- Dimension243x170x75 mm
- 0.72 kg

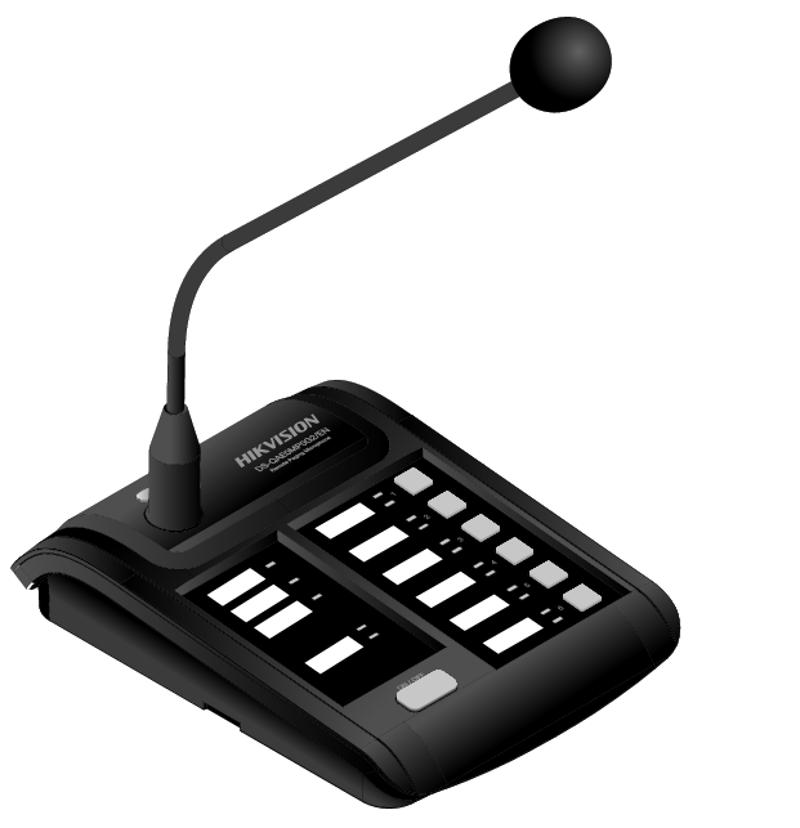

- Packing ListRemote Paging Microphone x1; Microphone x1; Power Adapter x1;
- Operating Temperature-5°C~45 °C
