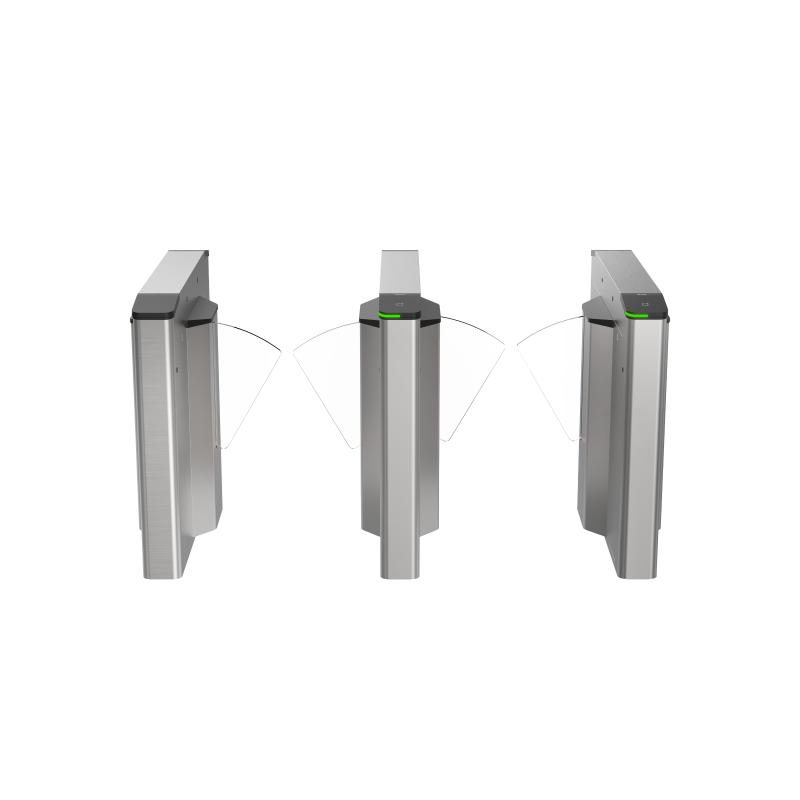

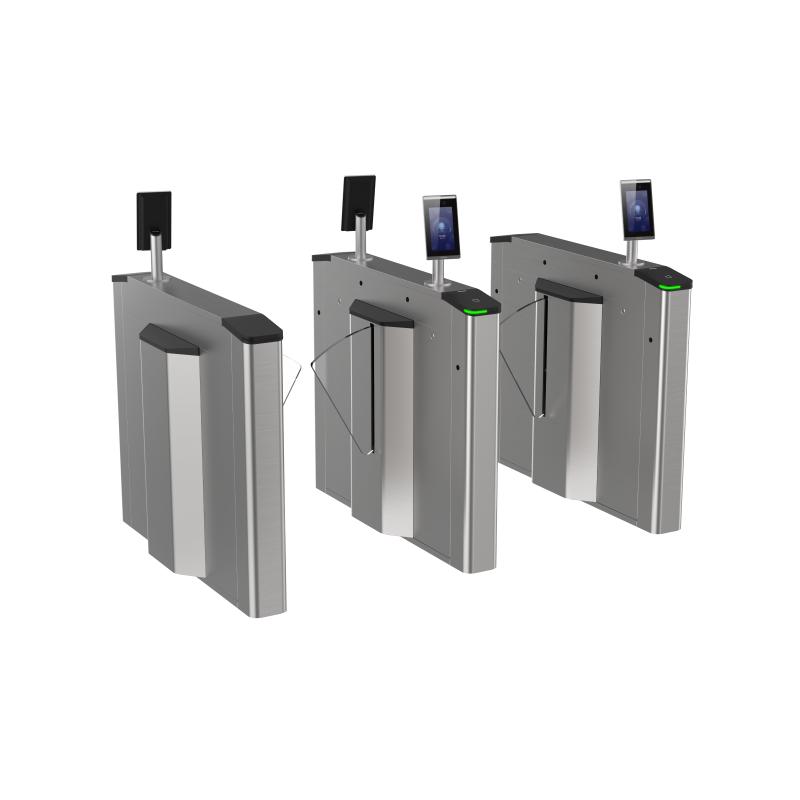

Hikvision DS-K3Y220LX

Motor

Brushless motor

MCBF

≥ 3 million

Exit button

2

Alarm input

1

Throughput

20 to 60 persons per minute;The actual throughput is affected by the person passing rate and passing method.

IR light detectors

4 pairs

Lane width

550 mm (18.15»)

Barrier material

Acrylic glass

Pedestal material

SUS304 stainless steel

Built-in access controller

No

Power supply

100 to 240 VAC; 50 to 60 Hz

Power consumption

75 W (stand by)

Working temperature

-30 °C to 65 °C (-22 °F to 149 °F)

Working humidity

10% to 95% (No Condensing)

Dimensions

With packaging: 1300 mm (51.2») × 245 mm (9.65») × 1100 mm (43.3») ; ;Without packaging: 1205 mm (47.44») × 146 mm (5.75») × 1000 mm (39.37»);

Weight

(Net) Left: 30.15 kg (66.5 lbs); Middle: 38.27 kg (84.4 lbs); Right:29.58 kg (64.8 lbs);;(Rough) Left: 49.15 kg (108.4 lbs); Middle: 56.27 kg (124.1 lbs); Right: 37.85 kg (107.1 lbs);

Application environment

Indoor and outdoor

Module selection

NO

Base

YES

Base model

DS-K3Y220X-BASE

Product type

Flap barrier
