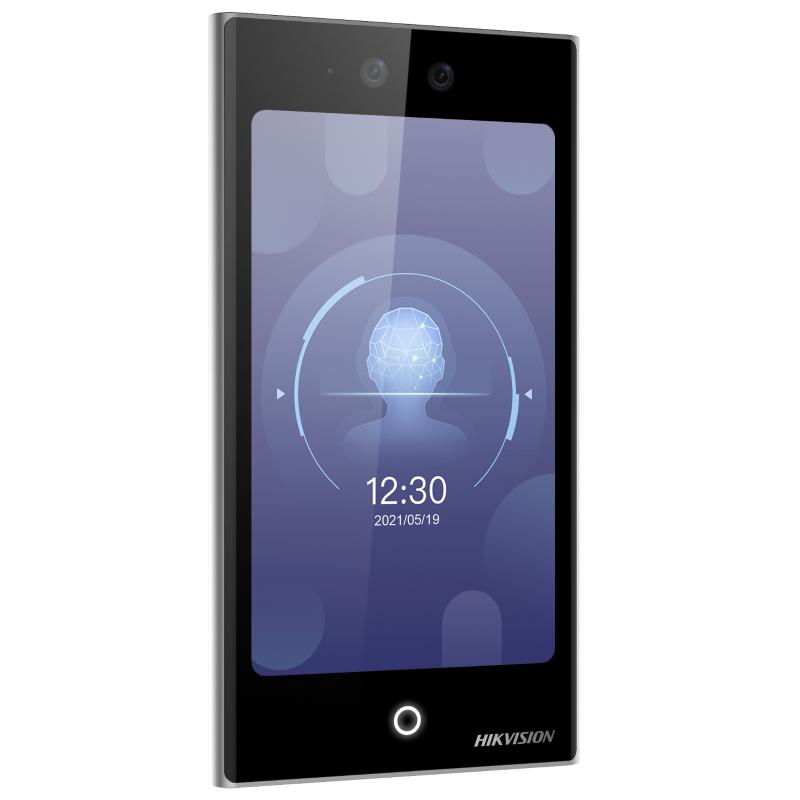

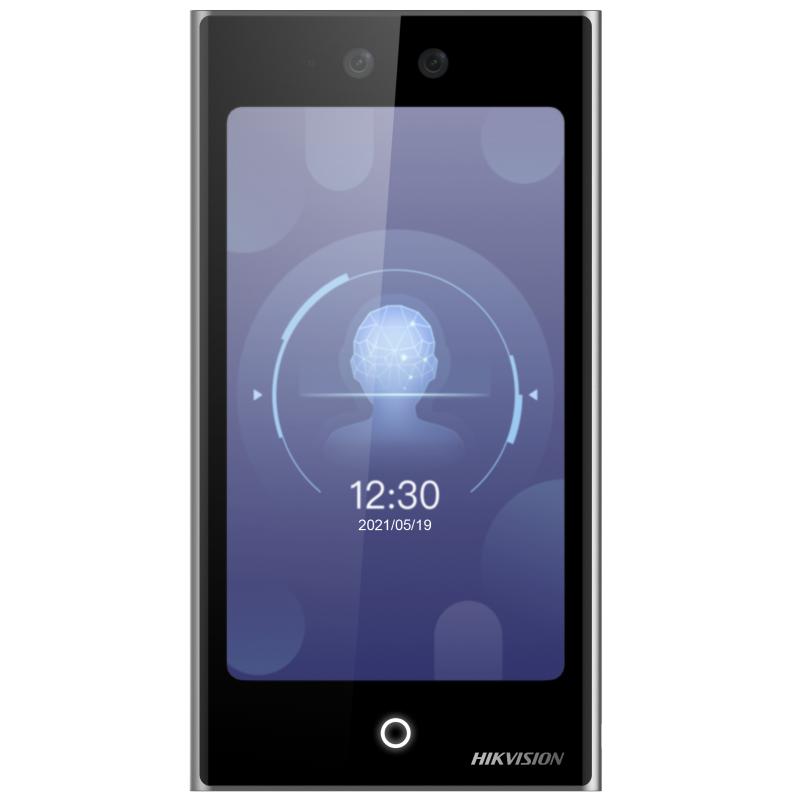

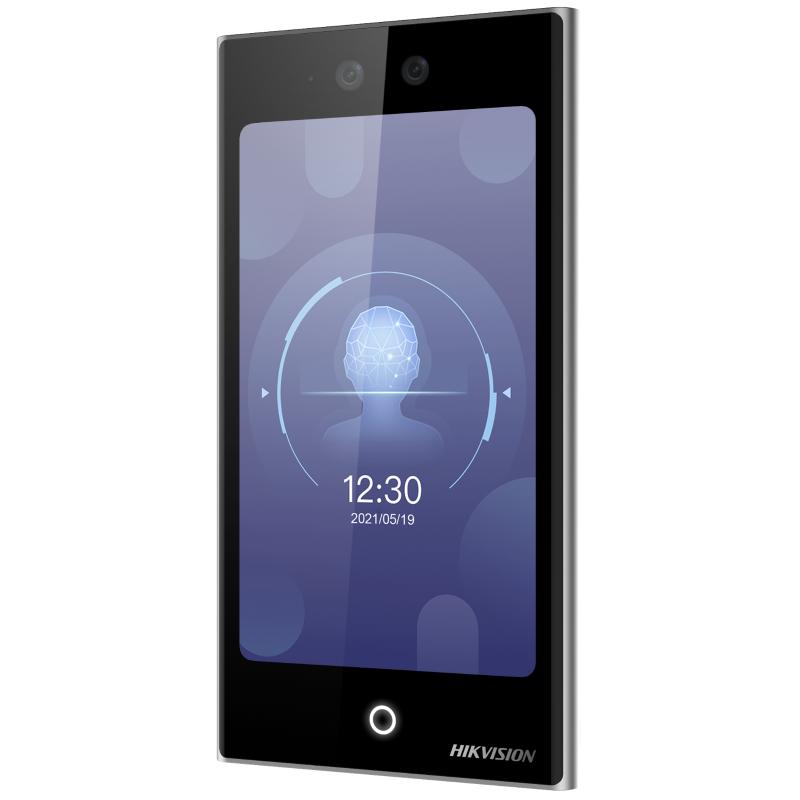

Hikvision DS-K1T673DX

Screen size

7 inch

Operation method

Capacitive touch screen

Type

IPS

Resolution

600 × 1024

Lens

2

Resolution

2 MP

FOV

HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°

Audio quality

Built-in omnidirectional microphone

Wired network

Support

Network interface

1 RJ-45, 10/100/1000 M self-adaptive

Lock control

1

Exit button

1

Door contact input

1

Alarm input

2

Alarm output

1

TAMPER

1

RS-485

1 RS-485 (Half duplex, HIKVISION)

Wiegand

1 Wiegand(Hik 26bit,Hik 34bit)

USB

1 (For Module)

Audio output interface

1 (3.5 mm)

Card type

M1 card;DESfire card;Felica card

Power supply

12 VDC to 24 VDC, 2 A

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

0 to 90% (no condensing)

Protective level

IP 65

Dimensions

110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)

Weight

Gross Weight：1.06 kg (2.34 lb);Net Weight：0.57 kg (1.26 lb)

Language

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean

Fingerprint capacity

10,000 (With fingerprint module)

Face anti-spoofing

Support
