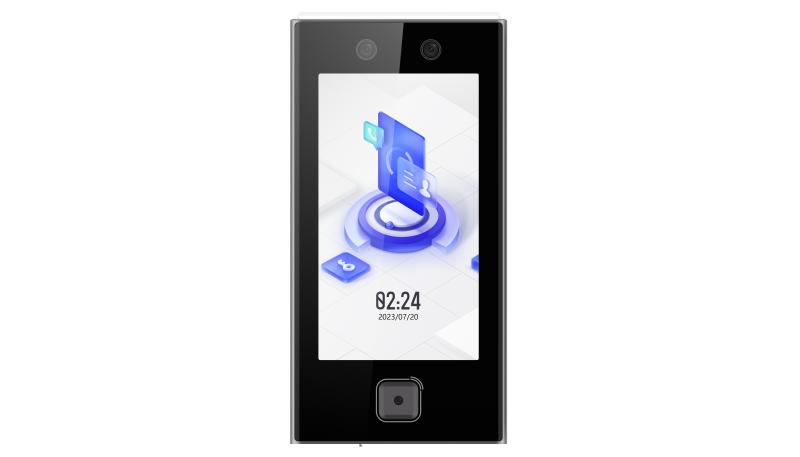

Hikvision DS-K1T670MX-QR

Operation system

Linux

Resolution

600 × 1024

Size

7-inch

Type

Touch screen

FOV

HFOV= 88°; VFOV= 44°

Pixel

2 MP

Lens

Dual-lens

WDR

Support

Video standard

PAL (Default)/NTSC

Wired network

Support 10/100/1000 Mbps self-adaptive

Alarm input

2

Alarm output

1

USB

1 Type-A (For Module)

Network interface

1

RS-485

1

Wiegand

1

Lock output

1

Exit button

1

Door contact input

1

TAMPER

1

User capacity

6000

Card capacity

50,000

Face capacity

6000

Event capacity

150,000

Face recognition accuracy rate

≥ 99%

Card type

M1 card

Card reading distance

0 to 5 cm

Card reading duration

＜ 1 s

Face recognition duration

＜ 0.2 s per person

Face recognition distance

0.3 to 3 m

Power supply

12 VDC/2 A

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

10 to 90% (no condensing)

Power consumption

≤ 10 W

Protective level

IP65

Dimensions

110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)

Language

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean

Weight

Gross Weight：1.06 kg (2.34 lb);Net Weight：0.57 kg (1.26 lb)

Configuration via Web browser

Support

Hik-Connect

Support

Two-way audio

Support

QR code recognition

Support

Face mask recognition

Support

Time synchronization

Support

Face recognition

Support

Face anti-spoofing

Support

Live view

Support

Audio prompt

Support
