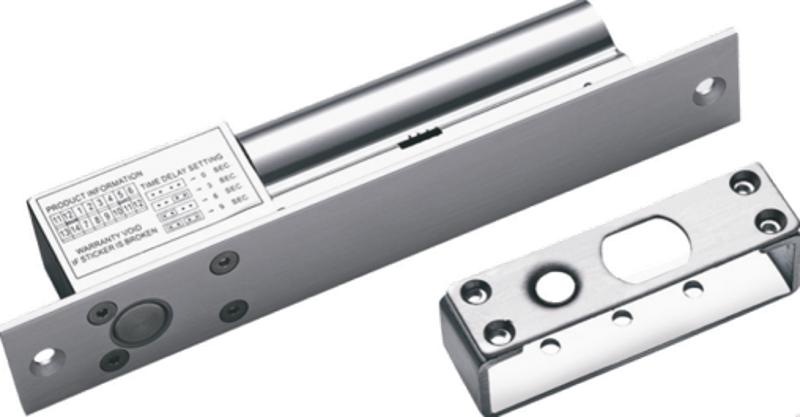

Hikvision DS-K4T108

Power supply

12 VDC; ≤ 1.2 A (Startup Current) 0.2 A (Standby)

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

0 to 95 % (relative humidity)

Dimensions

Lock Body: 205 mm × 34 mm × 42mm (8.1″ × 1.3″ × 1.7″)

Weight

0.74kg (1.6 lb)

Material

Shell: Hard Anodizing Electroplating Operated

Signal output

Dry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;

Delay duration

0/3/6/9s optional

Door type

Wooden Door, glass door, metal Door

Unlockmethod

Current Interruption

Surface temperature

≤ Ambient Temperature +10 °C (50 °F)

Suitable door

Wooden Door, Glass Door, and Metal Door
