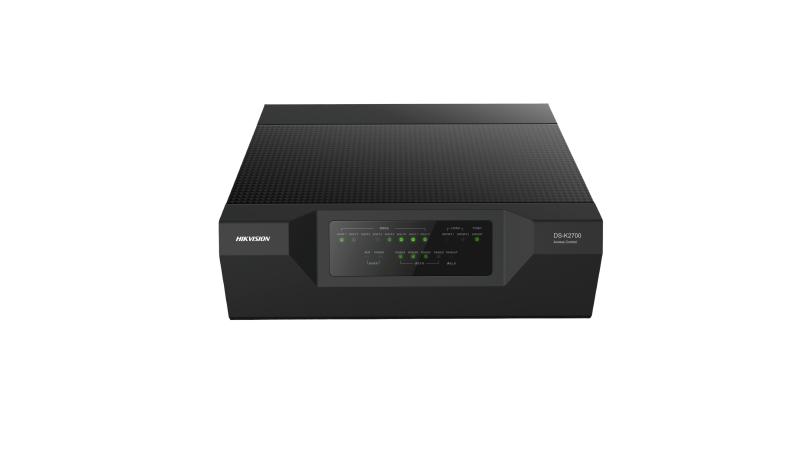

Hikvision DS-K2700

Door Amount

Max. 64 Distributed Access Controller, Max. 128 Doors

Capacity for Card/Offline Events

Card: 200,000 Event: 600,000

Holiday Schedule

1024

Holiday Group

255

Week Plan

255

Template

255

Fire-Fighting Linkage

1 Interface for Fire-Fighting Detection

Special Function

Anti-passing back, Multiple Authentication, Multi-Door Interlocking

Response Time

≤ 1s

Uplink Communication

TCP/IP Communication (Dual Network Interfaces) RS-485 Communication (RS-485 Interfaces)

Downlink Communication

RS-485 Communication (4 RS-485 Loops)TCP/IP Communication (1 10M/100M Network Interfaces)

Alarm Iutput

16

Alarm Output

8

USB Interface

1 USB Interface for the Device Upgrade and Date Importing/Exporting

Working Temperature

-20°C to +70°C (-4°F to 158°F)

Structure

Wall Mounting with 19-in 3U Standard Cabinet

Ingress Protection Level

Indoor: IP 54

Battery

Supported

Zone Disconnected Alarm

Supported

Zone Short Circuited Alarm

Supported

Tamper-Proof Alarm

Supported
