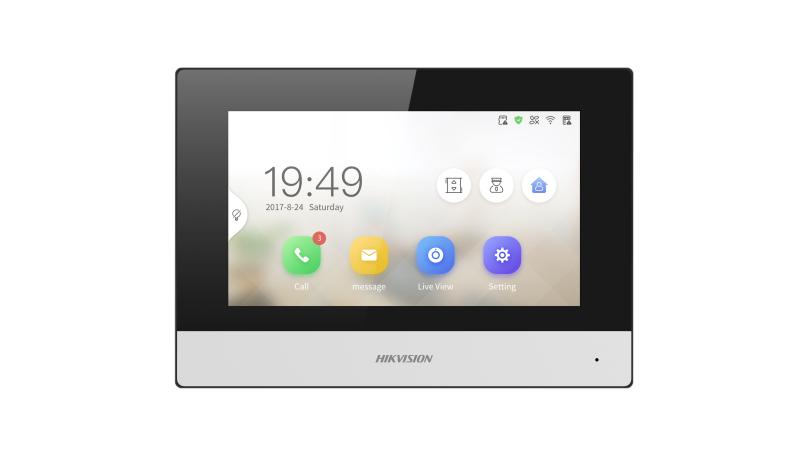

Hikvision DS-KH6320-WTDE1

Operation system

Linux

ROM

32 MB

RAM

128 MB

Processor

Embeded high performance processor

Screen size

7-inch

Operation method

Capacitive touch screen

Type

Colorful TFT

Resolution

1024 × 600

Lens

/

Resolution

/

FOV

/

Wide dynamic range (WDR)

/

Focal length

/

Audio input

1 built-in omnidirectional microphone

Audio compression standard

G.711U, G.711A

Audio output

1 built-in loudspeaker

Audio compression bitrate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Volume adjustment

Adjustable

Message capacity

200 captured pictures (with TF card); 200 alarm records;2 MB RAM (without TF card) reserved for events

Notice capacity

200

Linked network camera capacity

16

Linked indoor extensions capacity

16

Linked doorphone capacity

2 analog doorphones, 15 network doorphones

Network protocol

TCP/IP, SIP, RTSP

Wi-Fi

2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n

Bluetooth

/

3G/4G

/

Zigbee

/

Alarm input

2

Network interface

1 RJ-45 10/100 Mbps self-adaptive

TAMPER

/

RS-485

1 RS-485 (Half duplex)

USB

/

TF card

Support TF card, up to 128 G

Alarm output

2

Lock control

2 relays, Max. 30 VDC 0.3 A

Four-Wire interface

2

Button

/

Installation

Surface mounting

Indicator

/

Weight

Net weight: 340 g (0.75 lb);Gross weight: 709 g (1.56 lb)

Protective level

/

Working temperature

-10 °C to 55 °C (14 °F to 122 °F)

Working humidity

10% to 90% (no-condensing)

Dimension (W × H × D)

200 mm × 140 mm × 23.6 mm (7.9″ × 5.5″ × 0.9″)

Battery

/

Power supply

12 VDC, IEEE802.3af, standard PoE

Application environment

Indoor

Power consumption

≤ 5 W

Language

English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
