Hikvision DS-3WR12C

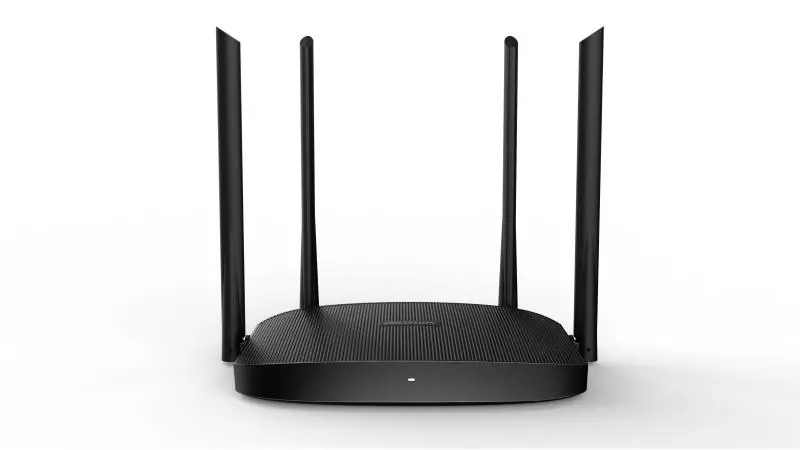

Hikvision DS-3WR12C — AC1200 simsiz router.

Əsas xüsusiyyətlər

• Four 5-dBi amplified antennas
• Beamforming optimizes signal
• Dual band – Smart signal switching
• Broadband account synchronization

Texniki parametrlər

• Product Dimension (W × H × D): 248.40 mm × 154.80 mm × 213.34 mm (9.78″× 6.09″× 8.40″)
• Package Dimension (W × H × D): 306 mm × 290 mm × 59 mm (12.05″× 11.42″× 2.32″)
• Net Weight: 0.222 kg (0.489 lb)
• Packing List: Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
• Packing Method: Single pack
• Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity: 10% to 90% RH non-condensing
• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity: 5% to 90% RH non-condensing
• Installation Mode: Desktop installation
• Max. Power Consumption: ≤ 9 W
• Gross Weight: 0.722 kg (1.592 lb)
• Data Rate: ≤ 1167 Mbps
  2.4 GHz: 300 Mbps
  5 GHz: 867 Mbps
• Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
• Working Frequency Band: 2.4 GHz，5 GHz
• Transmitting Power: CE:
  <20 dBm(2.4G)
  <23 dBm(5G)
• Wireless Performance: 4 × 4 MU-MIMO supported
  Beamforming supported
• Receiving Sensitivity: 58 ± 2 dB@AC80 -MCS9
  84 ± 2 dB@AC80 -MCS0
• Antenna: 4 high gain antennas
• Operating Frequency: 2.4 GHz: US/2412-2472 MHz(CH1-CH13)
  5 GHz: US/5180-5240 MHz(CH36-CH48)
  5 GHz: US/5740-5805 MHz(CH149-CH161)
• EIRP Power(Max.): 2.4 GHz: 19.86 dBm
  5 GHz: 22.96 dBm
• Network Interface: 1*10/100Mbps WAN port 3*10/100Mbps LAN ports
• LED Indicator: LED indicator
• Reset: Reset button
• Power Supply Method: 9 VDC, 1 A power adapter power supply
• Power Specifications: 9 VDC, 1 A
• Application function: Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
  DHCP Server supported
  Guest Network Configuration supported
  Signal Adjustment supported
  WiFi Schedule supported
• Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
• Security Mechanism: Hide SSID
• Management Method: Web
