Hikvision DS-3WF3000-SI-5ACG/2P

Artikul: HC-DS-3WF3000-SI-5ACG/2P

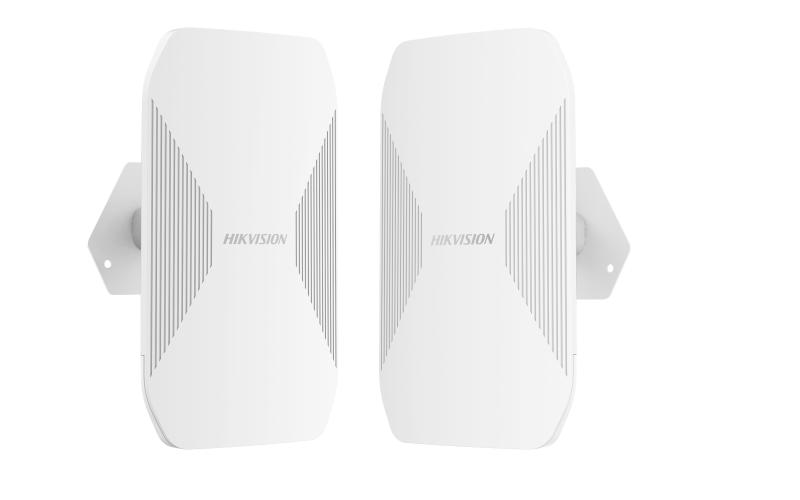

Hikvision DS-3WF3000-SI-5ACG/2P — 5Ghz 867Mbps 3KM simsiz Bridge Kit

Product Dimensions (W × H × D): 134.21 mm × 235.00 mm × 58.73 mm (5.28” × 9.25” × 2.31”)
Package Dimensions (W × H × D): 341 mm × 360 mm × 100 mm (13.43″ × 14.17″ × 3.94″)
Net Weight: 0.54 kg (1.19 lb) per device
Gross Weight: 2.76 kg (6.08 lb)
Packing List: Wireless Bridge x 2, PoE Adapter (48.0V, 0.625A) x 2, Power Cord x 2, Universal Joint Nut x 2, Universal Joint x 2, Mounting Bracket x 2, Screw Pack x 2, Hose Clamp x 2, Quick Start Guide x 1, Regulatory Compliance and Safety Information x 1
Packing Method: Packing in pairs
Working Temperature: -30 °C to 65 °C (-22 °F to 149 °F)
Working Humidity: 5% to 95% (no condensation)

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

General
Product Dimensions (W × H × D)134.21 mm × 235.00 mm × 58.73 mm (5.28” × 9.25” × 2.31”)
Package Dimensions (W × H × D)341 mm × 360 mm × 100 mm (13.43″ × 14.17″ × 3.94″)
Net Weight0.54 kg (1.19 lb) per device
Gross Weight2.76 kg (6.08 lb)
Packing ListWireless Bridge x 2, PoE Adapter (48.0V, 0.625A) x 2, Power Cord x 2, Universal Joint Nut x 2, Universal Joint x 2, Mounting Bracket x 2, Screw Pack x 2, Hose Clamp x 2, Quick Start Guide x 1, Regulatory Compliance and Safety Information x 1
Packing MethodPacking in pairs
Working Temperature-30 °C to 65 °C (-22 °F to 149 °F)
Working Humidity5% to 95% (no condensation)
Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity5% to 95% (no condensation)
Installation ModeWall Mounting,Pole Mounting
Ingress ProtectionIP55
Power Consumption3.5 W for typical (1-ch 2MP IPC), Max. 7.7 W

Wireless Parameter
Max. Transmission Rate of Air Interface≤ 867 Mbps
Wireless StandardIEEE 802.11/a/n/ac
Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
Antenna Gain13 dBi
Antenna Angle(H) Beamwidth [3 dB] 32° (V), Beamwidth [3 dB] 32°
Transmitting Power29 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity-88 ±2dBm@AC80-MCS0
Throughput RatePTP:270 Mbps/1 KM(AC80), 240 Mbps/3 KM(AC80), PTMP(1 to 8): 120 Mbps/3KM(AC80)

Hardware Parameter
Network Interface3 × 100/1000 Mbps RJ45 ports
LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
ResetHardware resetting button
Power Supply48V PoE/12~24V DC;Check the physical interface image below for more details.

Software Function
Application FunctionIFM,IPM,DFS,TPC
Channel Width20/40/80 MHz
Channel SelectionAuto/manual selection
Security ModeWPA2-PSK
Security MechanismWireless network name hidden
Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Management MethodHCP,Web,iVMS-4200,HPP
System LogSyslog,Control center information
UpgradeWeb,iVMS-4200,HCP,HPP
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate.
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning
8. PoE output management

PoE Power Supply
PoE PortAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT, LAN3 802.3 af PoE OUT
Max. Port Power22 W
PoE Power Budget22 W
PoE Distance100 m

Approval
EMCCE-EMC(EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4, EN 55035)
SafetyCB (IEC 62368-1),CE-LVD (EN 62368-1)
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
RadioEN 301 893,EN 300 440,EN 301 489-3,EN 301 489-17,EN IEC 62311,EN 301 489-1
