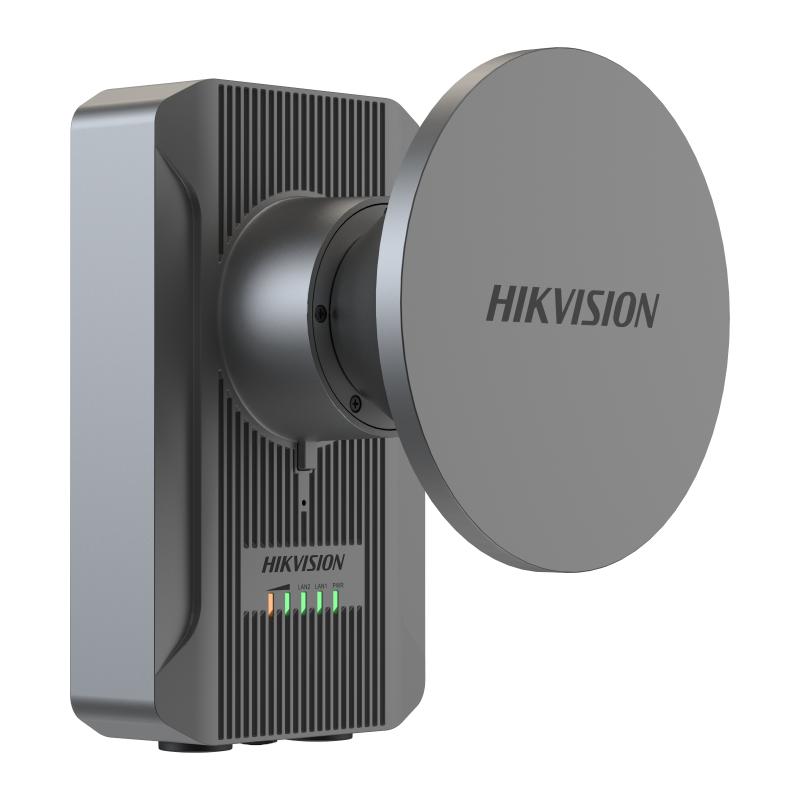

Hikvision DS-3WF15KS-SI-5ACG/H

Artikul: HC-DS-3WF15KS-SI-5ACG/H

Hikvision DS-3WF15KS-SI-5ACG/H — 5Ghz 867Mbps 15KM Industrial simsiz Bridge

Product Dimensions (W × H × D): 134mm × 224.09 mm × 96.58 mm（without antenna）
Package Dimensions (W × H × D): 392 mm × 392 mm × 155 mm (15.43″ × 15.43″ × 6.10″)
Net Weight: 1.6 kg (3.52 lb) per device
Gross Weight: 4.2 kg (9.24 lb)
Packing List: Wireless Bridge × 1,PoE Power Supply × 1,AC Cord × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Antenna x 1，Waterproof plug x 3，Mounting bracket x 1
Packing Method: Single unit packing
Working Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Note: The actual operating temperature range of the entire device depends on the power adapter. The default adapter supports a maximum of 65°C (149°F). To achieve the full 70°C (158°F) operating range, an optional industrial-grade power adapter must be used.
Working Humidity: 5% to 95% (no condensation)

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

General
Product Dimensions (W × H × D)134mm × 224.09 mm × 96.58 mm（without antenna）
Package Dimensions (W × H × D)392 mm × 392 mm × 155 mm (15.43″ × 15.43″ × 6.10″)
Net Weight1.6 kg (3.52 lb) per device
Gross Weight4.2 kg (9.24 lb)
Packing ListWireless Bridge × 1,PoE Power Supply × 1,AC Cord × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Antenna x 1，Waterproof plug x 3，Mounting bracket x 1
Packing MethodSingle unit packing
Working Temperature-40 °C to 70 °C (-40 °F to 158 °F)
Note: The actual operating temperature range of the entire device depends on the power adapter. The default adapter supports a maximum of 65°C (149°F). To achieve the full 70°C (158°F) operating range, an optional industrial-grade power adapter must be used.
Working Humidity5% to 95% (no condensation)
Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity5% to 95% (no condensation)
Installation ModePole Mounting
Ingress ProtectionIP68
Power Consumption4 W for typical (1-ch 2MP IPC), Max. 7 W
ESD Protection±15 kV(Air) / ±8 kV(Contact)
Surge Protection6 kV

Wireless Parameter
Max. Transmission Rate of Air Interface≤ 867 Mbps
Wireless StandardIEEE 802.11/a/n/ac
Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.)
Antenna Gain15 dBi
Antenna Angle(H) Beamwidth [3 dB] 30° (V) Beamwidth [3 dB] 30°
Transmitting Power29 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity-88 ±2dBm@AC80-MCS0
RF DesignThe band-pass filters are used to remove unwanted frequencies from the singal.
Throughput RatePTP:300 Mbps/5 KM(AC80), 180 Mbps/10 KM(AC80), 110 Mbps/15 KM(AC80); PTMP(1 to 8): 110 Mbps/5KM(AC80)

Hardware Parameter
Network Interface2 × 10/100/1000 Mbps RJ45 ports
LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
ResetHardware resetting button
Power Supply24 V Passive PoE/9~36 V DC;Check the physical interface image below for more details.

Software Function
Application FunctionIFM,IPM,DFS,TPC
Channel Width20/40/80 MHz
Channel SelectionAuto/manual selection
Security ModeWPA2-PSK
Security MechanismWireless network name hidden
Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
Management MethodHCP,Web,iVMS-4200,HPP
System LogSyslog,Control center information
UpgradeWeb,iVMS-4200,HCP,HPP
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning

Approval
EMCCE-EMC(EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4, EN 55035)
SafetyCB (IEC 62368-1),CE-LVD (EN 62368-1)
ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
RadioEN 301 893,EN 300 440,EN 301 489-3,EN 301 489-17,EN 301 489-1, EN 61000-3-3, EN IEC 61000-3-2, EN IEC 62311
