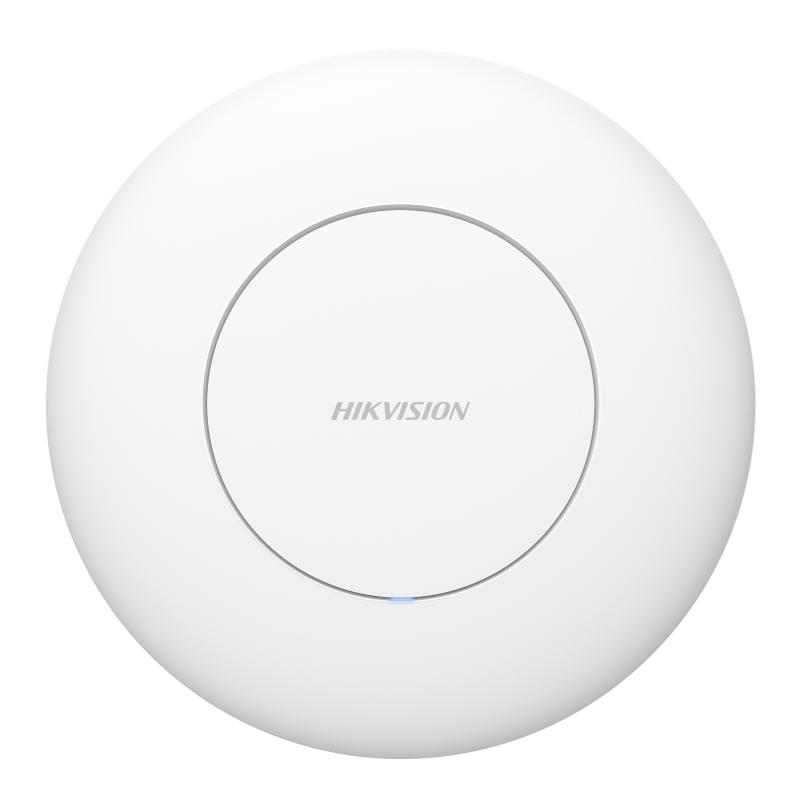

Hikvision DS-3WAP522-SI — Wi-Fi 5 1200M Ceiling Access Point
Hikvision DS-3WAP522-SI — Wi-Fi 5 1200M Ceiling Access Point
Sorğu əsasında
Qiymət sorğusu- General
- Net Weight0.36 kg (0.79 lb)
- Gross Weight0.6 kg (1.32 lb)
- Installation ModeCeiling Mounting
- Working Temperature0°C to 40°C (32°F to 104°F)
- Working Humidity10% to 90% (no condensation)
- Storage Temperature-40°C to 70°C (-40°F to 158°F)
- Storage Humidity5% to 95% (no condensation)
- Product Dimensions (W × H × D)Ø220 mm × 49.7 mm (excluding bracket）
- Packing List1200 M Access Point × 1, Screw Pack × 1, Installation bracket × 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
- Power Supply MethodDC power supply: 12 V, 1.5 A;
PoE power supply: IEEE 802.3at; - Power ConsumptionStandby Power Consumption: 4W
Typical Power Consumption: 9W
Maximum Power Consumption: 18W
- Wireless Parameter
- Wireless SpeedMax: 1167 Mbps;
2.4G: 300 Mbps;
5G: 867 Mbps; - Wireless StandardWi-Fi 5
- Working Frequency BandRadio 1: 5G (11a/n/ac);
Radio 2: 2.4G (11b/g/n); - Bandwidth2.4G: Auto/20/40 MHz;
5G: Auto/20/40/80 MHz; - Recommended Coverage RangeRecommended Coverage Range: 140 m², the radius in an open environment is 25 meters.
Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above – mentioned values are for reference only. - ModulationOFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM - Max. Number of Connected Clients128
- Recommended Number of Connected Clients80
- Transmitting Power2.4G: Combined power: 28 dBm;
5G: Combined power: 28 dBm;
Note: The actual transmission power varies according to regulations in different countries and regions; - Wireless SecurityWPA2-PSK, WPA-WPA2-PSK
- Antenna2.4 GHz: 2 built-in omnidirectional antennas
5 GHz: 2 built-in omnidirectional antennas - Antenna Gain2.4 GHz: 3.5 dBi
5 GHz: 4.5 dBi - RF DesignDual-radio
4 spatial streams
2.4G: 2 × 2, MU-MIMO
5G: 2 × 2, MU-MIMO - FEM2.4 GHz: 2 x eFEM
5 GHz: 2 x eFEM
- Hardware Specifications
- Ports1 × Gigabit PoE in port, 1 × Gigabit RJ45 port
- RESET1 × Reset hole
- Software Specifications
- Max. Number of Wireless SSIDs7
- Internet Access ModeDHCP,Static
- VLAN ID Range1~4000
- Max. Number of VLANs8
- Software Features
- Operation ModeAP mode (default);
Routing mode; - Wireless ManagementSupport wireless configuration;
Support RF configuration;
Support Health Mode;
Support guest SSID;
Support wireless 802.11k/v roaming;
Support wireless optimization;
Support wireless SSID speed limit;
Support wireless RF speed limit;
Support wireless intelligent speed limit;
Support wireless terminal speed limit;
Support weak signal access control;
Support weak signal to kick offline;
Support roaming sensitivity adjustment;
Support wireless access control;
Support wireless terminal association;
Support Band steering;
Support AP load balancing;
Support smart antenna technology (beamforming), improving the signal’s strength on clients; - InterfaceSupport uplink port VLAN;
Support MAC address modification;
Support LAN configuration;
Support Port VLAN; - IP ServicesSupport DHCP Client;
Supports DHCP Server;
Support LLDP;
Support SADP; - Service and SupportSupport NAT Traversal;
Support Audit Log;
Support Fault Diagnosis;
Support Fault Alarm;
Support One-Click Fault Collection;
Support Network Diagnostic Tools;
Support SSH;
Support Cloud Service Diagnosis;
Support Local Upgrade;
Support Online Upgrade;
Support Cloud Service;
Support App Management;
Support CAPWAP DTLS encryption;
- Approval
- EMCCE-EMC (EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 EN IEC 61000-3-2:2019/A2:2024 EN 61000-3-3:2013/A2:2021 EN 50130-4:2011/A1:2014)
- SafetyCB (IEC 62368-1: 2018), CE-LVD (EN 62368-1:2014/A11:2017)
- ChemistryCE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
- RadioEN 300 328, EN 300 440, EN 301 893, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 61000-3-3: 2013+ A1:2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 62311: 2020
