Hikvision DS-2TD2136T-25

Artikul: HC-DS-2TD2136T-25

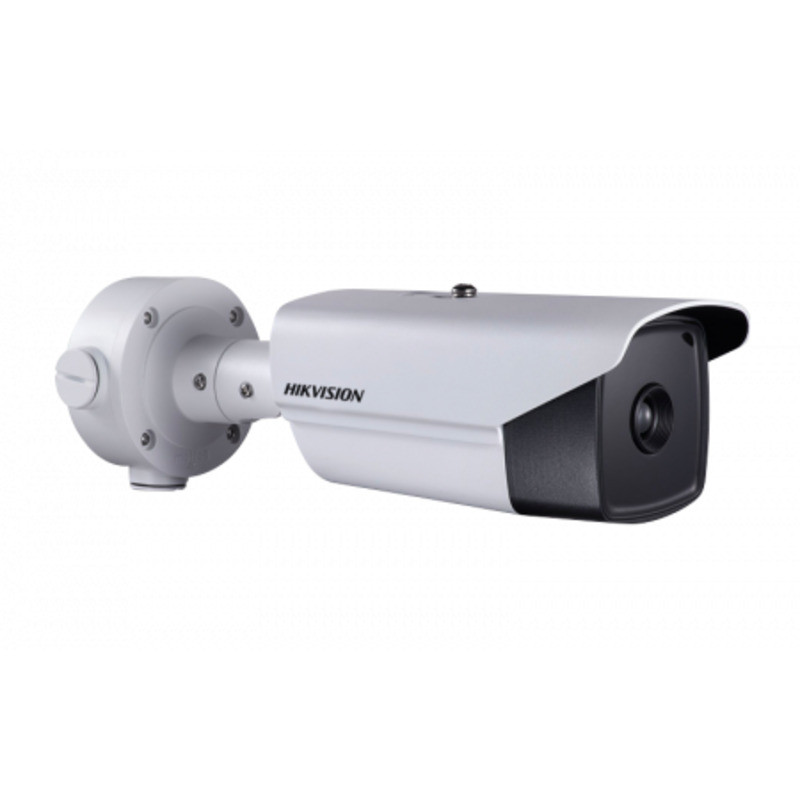

Hikvision DS-2TD2136T-25 — Thermographic Network Bullet (silindrik) kamera

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Smart Function
VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range-20° C to 550° C (-4°F to 1,022°F)
Temperature AccuracyMax (± 2 °C, ± 2%)
Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

Network
Main Stream50fps (384×288)
Sub stream50fps (384×288)
Third stream50fps (384×288)
Video compressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio compressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous live viewUp to 20
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Alarm Input2-ch inputs (0-5V DC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionPreset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio OutputLinear Level; Impedance: 600Ω
Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
ClientiVMS-4200
Web BrowserIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

General
Menu LanguageEnglish
PowerDynamic fire point detection, up to 10 fire points detectable.
Power Consumption24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.7 A, max. 8W (20W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
Work Temperature/Humidity-40 °C to 65 °C (-40 °F to 149 °F), 90% or less
Protection LevelIP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
Dimensions352.4mm × 113.5mm × 113mm (13.9″ × 4.45″ × 4.45″)
Approx. 2kg (4.41lb)
