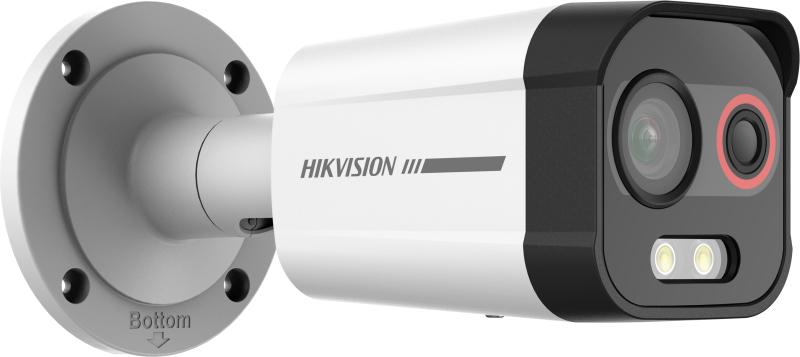

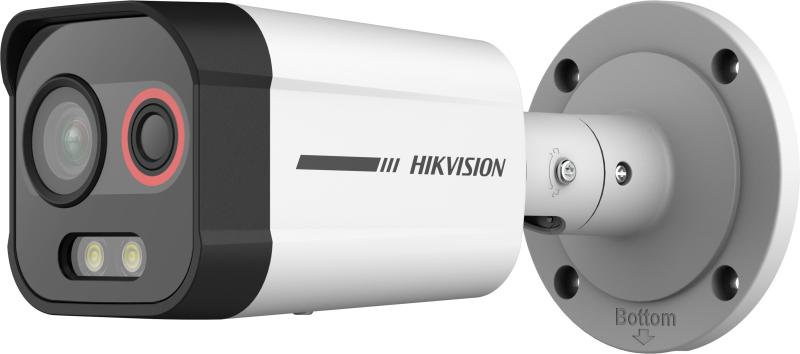

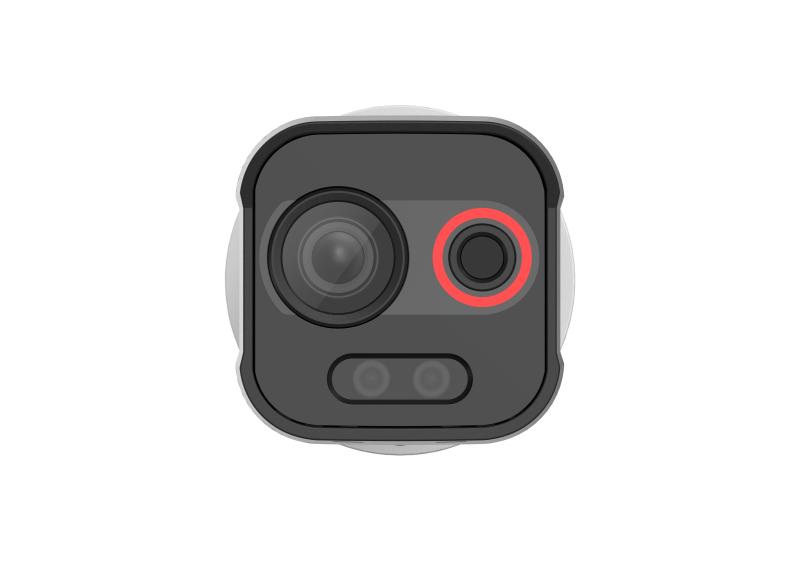

Termal və Optik Bi-Spektrli Şəbəkə Turret Kamerası
Termal və Optik Bi-Spektrli Şəbəkə Turret Kamerası
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution96 × 72
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD< 55 mK (25°C, F1.0)
- Focal Length1.35 mm
- IFOV8.89 mrad
- Field of View50.0° × 37.5° (H × V)
- Min. Focusing Distance0.05 m
- ApertureF1.0
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/1.8″ Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0003 Lux @（F1.0，AGC ON）, 0 Lux with Light
- Shutter Speed1 s to 1/100,000 s
- Focal Length4 mm
- Field of View94.0° × 50° (H × V)
- Aperture (Range)F1.0
- WDR120 dB
- Illuminator
- Light SupplementWarm Light
- Light Supplement Distance30 m
- Audible and Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- Audio alarm
Yes
1 preset voice alerts
6 importable user-defined voice alerts
- Smart Function
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 300°C (-4°F to 572°F)
- Temperature Accuracy
Max (±4°C/7.2°F, ±4%), for ambient temperature 15°C to 35°C (59°F to 95°F)
Max (±8°C/14.4°F, ±8%)，for other ambient temperature
- Fire DetectionSupport
- Smoking DetectionSupport
- Video and Audio
- Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288，320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-stream
Thermal:
25 fps (704 × 576, 352 × 288, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,SSL
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +,macOS10.13 +,Safari 12+
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
- Power Consumption
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 95% or less
- Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Dimensions211.5 mm × 105 mm × 105 mm (8.32″ × 4.13″ × 4.13″)
- 869.2 g (1.92 lb)
