Hikvision DS-2TD1117-3/PA

Artikul: HC-DS-2TD1117-3/PA

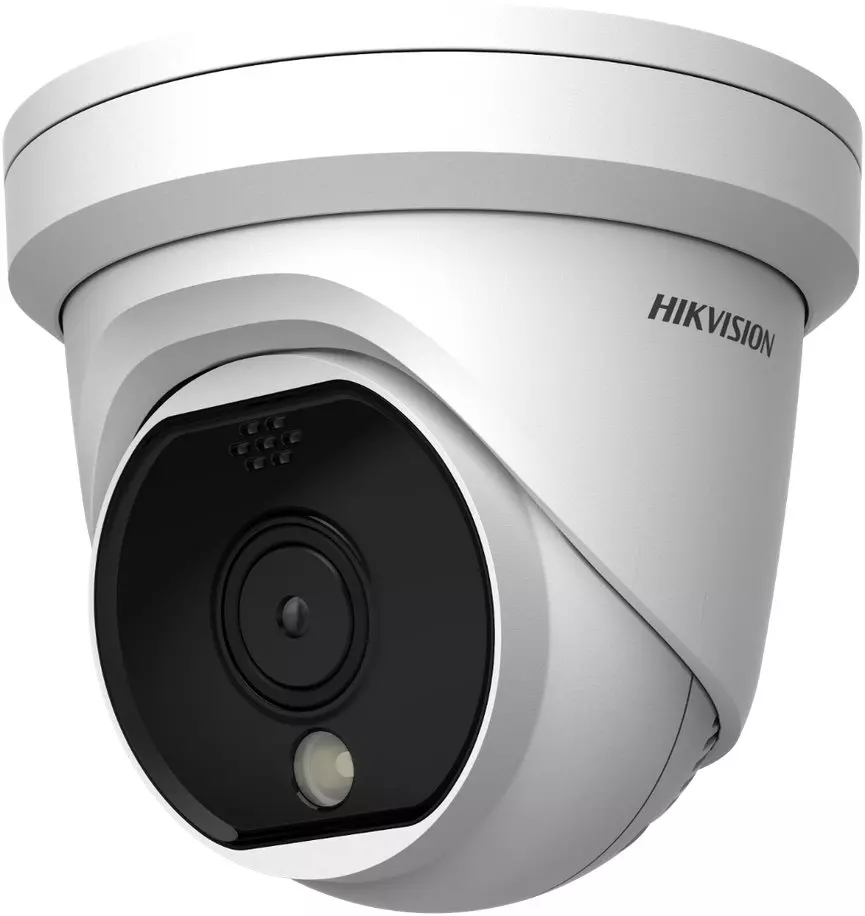

Hikvision DS-2TD1117-3/PA — Thermal Network Turret kamera

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Audible and Visual Alarm
White Light RangeUp to 30 m
Visual AlarmYes. White light used as the visual alarm, flashing frequency adjustable
Audio alarmYes. 6 audio alarms are supported to cover all kinds of alarm.

Smart Function
VCA4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-stream50 Hz: 25 fps (704 × 576, 352 × 288, 320 × 240)
Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288, 320 × 240)
Video CompressionMain Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Simultaneous Live ViewUp to 20 channels
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
Network StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

Interface
Alarm Input1-ch inputs (0-5 VDC)
Alarm Output1-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface

General
Web Client Language32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply12 VDC ± 20%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption12 VDC ± 20%: 0.4 A, max. 4.5 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W
Working Temperature/Humidity-40 °C to 65 °C (-40 °F to 149 °F)
95% or less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions138.3 mm × 138.3 mm × 123.1 mm (5.45 ” × 5.45″ × 4.85 “)
920 g (2.03 lb)
