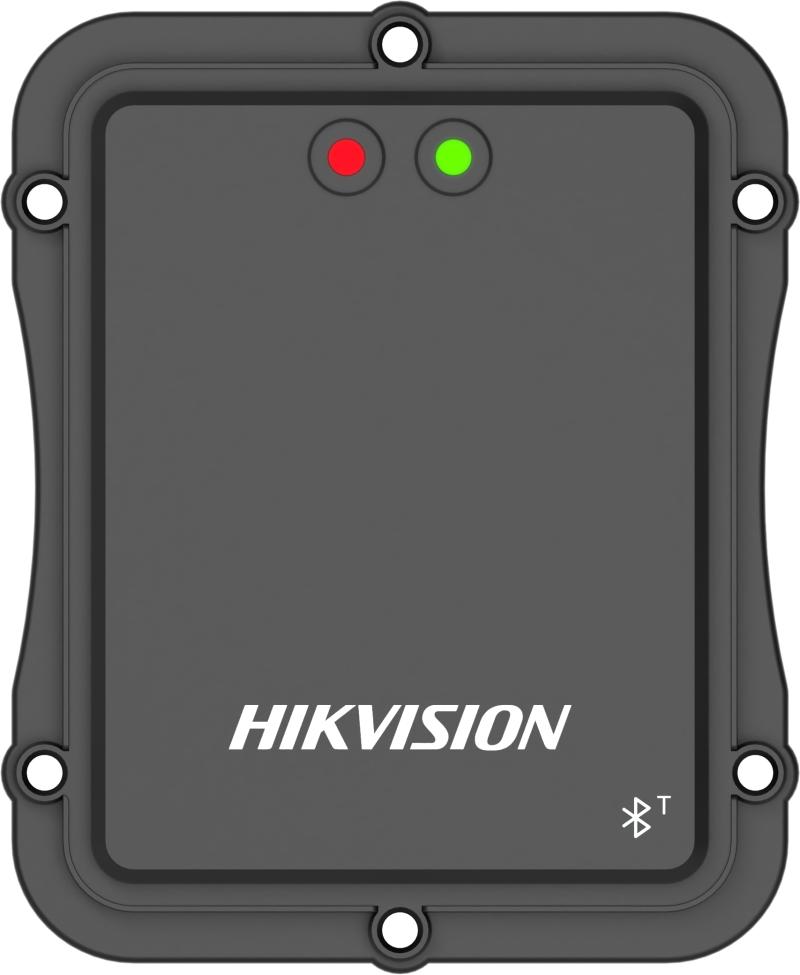

- Entrance and Exit Radar
- Transmitting Frequency60GHz
- BeamwidthVertical 10°, Horizontal 38°
- Response Time (ms)50ms
- Trigger Distance (m)0.3 to 6 m (adjustable)
- Detection Area (m)Horizontal width: 0 to 2 m (adjustable)
- Detection TargetTigger Mode:Vehicle/Person
Anti-fall Mode：Vehicle/Person - Online Debug60GHz:Serial port/Bluetooth
- Online UpgradeSerial port upgrade
- Transmitting Power≤ 10mW
- Area Vehicle FollowingDistinguish following distance of vehicle: 0.5 to 2 m (adjustable)
- General
- Working Temperature and Humidity-40℃~+85℃；
- Working Current＜ 0.25A
- Working Voltage 9 to 12 VDC (With power adapter)
- Power Consumption＜ 3W
- Dimensions136.9 × 112.4 × 29 mm (5.4 × 4.4 × 1.1 inch)
- 0.4 kg (0.88 lb.)
- Weight (with Package)1.1 kg (2.4 lb.)
- Dimensions (with Package)Trigger Radar: 160× 160 × 850 mm (6.3 × 6.3 × 33.5 inch)
Anti-fall Radar: 160 × 160 × 80 mm (6.3 × 6.3 × 32 inch)
