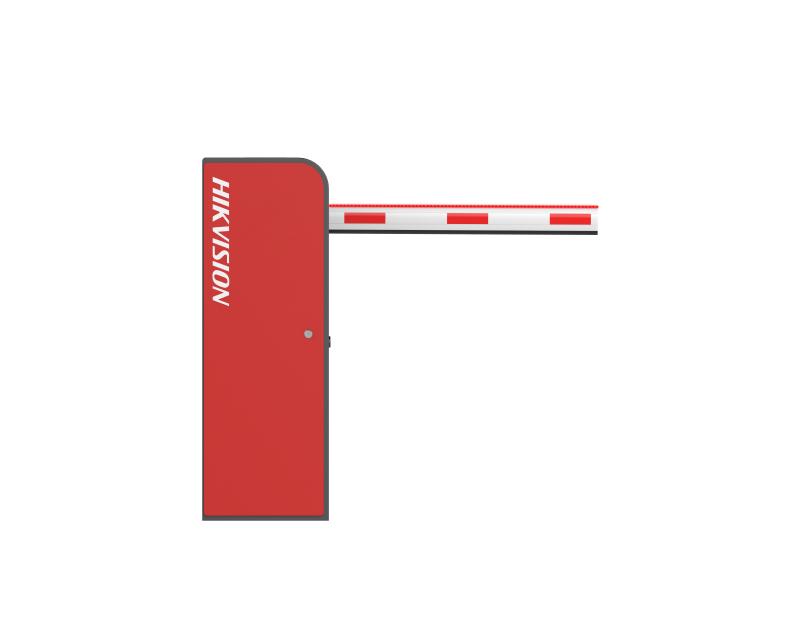

Qiymət sorğusu- Barrier Housing
- Barrier Housing MaterialSGCC
- Barrier Housing Thickness1.5 mm
- Barrier Housing Door Thickness1.2 mm
- Barrier Housing ColorIron gray
- Barrier Housing Door ColorOrange red
- Boom Pole Installation Height885 mm
- Body Indicatorswith body indicator. Green: arrow indicator. Red: prohibition indicator
- Barrier Gate General
- Rising/Falling Speed
3m light pole, right by default, direction switchable
Rising Speed: 3 S
Falling Speed: 3 S
4m light pole, right by default, direction switchable
Rising Speed: 3 S
Falling Speed: 3 S
- Boom Pole Directionright by default, direction switchable
- Motor TypeDC brushless motor
- Matched Boom Pole TypeOctagonalstraight boom pole: 3 to 4 m
- Boom Pole Falling Delay10 s by default (configurable), min. 2 s (every 2 s followed a gap)
- Number of Cycles5,000,000
- Working Voltage220 VAC
- ConsumptionMax. 139 W
- Temperature and HumidityTemperature: -30 °C to 60 °C (-22 °F to 140 °F),Humidity: ≤ 90%
- Rising Boom Pole for PoweroffOptional, not supported by default
- Barrier Gate
- Duty Cycle100%
- Interface
- RS-4851 group
- Rising to Limit1 group
- Falling to Limit1 group
- Open1 group
- Close1 group
- Stop1 group
- IR/Vehicle Detector/Radar1 group
- Traffic Signal Light1 group, external power supply required, max. 220 VAC supported
- Boom Pole
- Boom Pole ColorWhite background with red bar
- Boom Pole Weight
3 m boom pole with LED strip light: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.)
4 m boom pole with LED strip light: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.)
- Boom Pole Dimensions (with Package)
3 m boom pole with LED strip light: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch)
4 m boom pole with LED strip light: 100 × 60 × 4035 mm (3.94 × 2.36 × 159.45 inch)
- Boom Pole Weight (with Package)
3 m boom pole with LED strip light: 4.0 ± 0.3 kg (8.82 ± 0.66 lb.)
4 m boom pole with LED strip light: 5.2 ± 0.3 kg (11.46 ± 0.66 lb.)
- Color of Boom Pole with LED Strip Light
with LED strip light, green indicator for boom pole opening status
Boom pole other status: red indicator
Photometric parameters:
Red: luminous flux 39.44 lm, light effect 17.86 lm/W
Green: luminous flux 107.56 lm, light effect 45.65 lm/W
Working life (lighting time): 5800 h
- Boom Pole Dimensions
3 m boom pole with LED strip light: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch)
4 m boom pole with LED strip light: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch)
- Boom Pole MaterialAL6061
- Approval
- RF
CE-RED
EN 300220-1 V3.1.1
EN 300220-2 V3.1.1
EN 301489-1 V2.2.3
EN 301489-3 V2.1.1
EN IEC 62311: 2020
- EMC
CE-EMC：
EN 55032: 2015/A11: 2020 + A1: 2020,
EN IEC 61000-3-2: 2019/A1: 2021,
EN 61000-3-3: 2013 + A1: 2019/A2: 2021,
EN 50130-4: 2011 + A1: 2014
- Security
CE-LVD:
EN 62368-1: 2014/A11: 2017
CB:
IEC 62368-1: 2014
IEC 62368-1: 2018
- EnvironmentROHS
- ProtectionIP54, IK09
- Package
- Barrier Housing Dimensions(L × W × H)1060 × 370 × 262 mm (41.73 × 14.57 × 10.31 inch)
- Body Weight43 ± 3 kg (94.8 ± 6.61 lb.)
- Body Dimensions (with Package, Without Boom Pole)(L × W × H)1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch)
- Body Weight (with Package, Without Boom Pole)47 ± 3 kg (103.61 ± 6.61 lb.)
