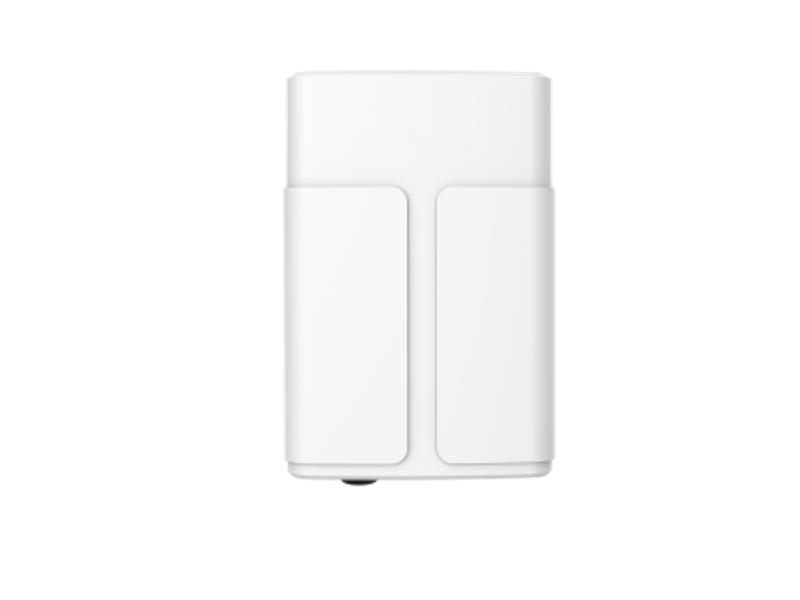

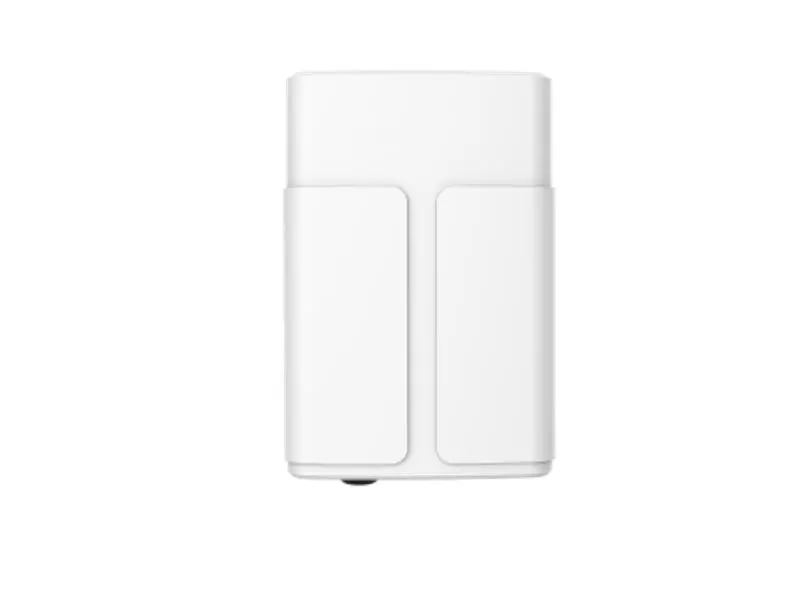

Hikvision DS-TDP210-LT

Antenna

Two N type female external antenna interfaces, characteristic impedance 50Ω

Channel

8(Full duplex/Half duplex)

Frequency Band

Default EU868, Support CN470/IN865/RU864/US915/AU915/KR920/AS923-1&2&3&4)

Receiving Sensitivity

-140 dBm @292 bps

Transmitting Power

27 dBm Max

Protocol

V1.0 Class A/Class B/Class C 和 V1.0.2 Class A/Class B/Class C

Frequency Range

860-930 MHz

Gain

5 dBi

Voltage Standing Wave Ratio

≤2.0

Polarization Type

Vertical

Horizontal Beamwidth

360°

Vertical Beamwidth

45°

Out-of-Roundness

1.5 dB

Interface Type

N -Male

Input Impedance

50 Ω

Power Capacity

20 W

Dimensions

Φ25×800mm

Antenna Housing Material

Fiberglass

Application

Outdoor

Network

Ethernet port,1 x 10/100/1000 Mbps(Support 802.3af standard PoE power supply),transmission mode:Full duplex/half duplex adaptive

Wi-Fi

Antennae：1 built-in antenna, characteristic impedance 50Ω；Standards and frequency bands：IEEE 802.11 b/g/n，2.4GHz；Work pattern：Client mode, AP mode；Security encryption：WEP/WPA/WPA2 authentication, supporting WEP/TKIP/AES encryption.

Cellular Network

Antennae:1 built-in antenna, characteristic impedance 50 Ω;Sim port:1 个(2FF);Network type:Seven mode full Netcom, support mobile/Unicom/telecom 2G, 3G, 4G;

GPS

Antennae:1 built-in antenna, characteristic impedance 50 Ω；Location technique:GPS;Sensitivity:167DBM@tracking mode, -149DBM@capture mode, -161DBM@Recapture mode;Horizontal positioning accuracy:Self-positioning less than 2.5m CEP.

Reset Button

1 interface

Debug Serial Port

1 x Type-C interface

Built-in Interface

Watchdog, real-time clock, timer

Working Temperature and Humidity

-40 ℃~70 ℃ Under25 ℃ 0%~95%(non-condensing)

Power Supply

802.3 af standard PoE power supply or DC 12 V power supply (M12 air interface)

Power Consumption

≤4.8 W

Dimensions

240 × 164 × 90.9 mm (9.45 × 6.45 × 3.58 inch)

Installation Mode

Wall hanging or pole mounting

Storage Temperature and Humidity

-40 ℃~85 ℃,under25 ℃ 0%~95%(No condensation)
