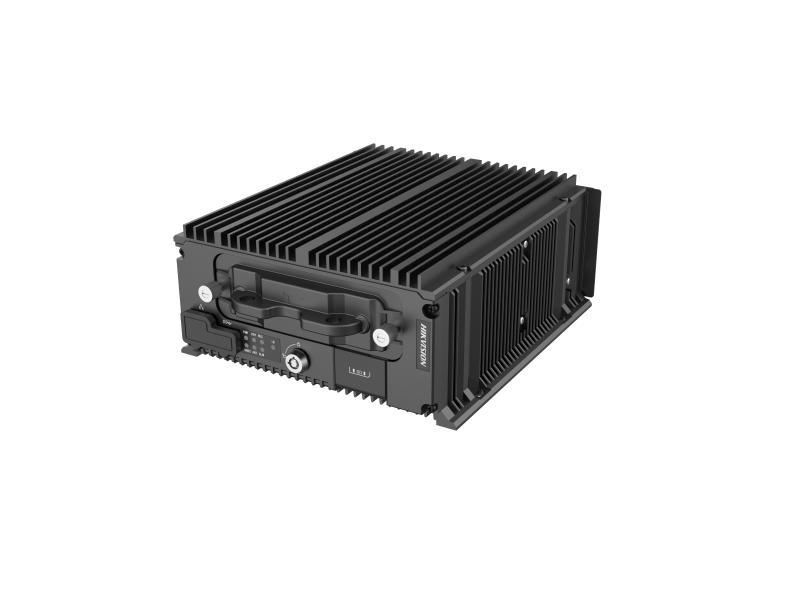

Hikvision AE-MH0804(RJ45)

Artikul: HC-AE-MH0804(RJ45)

Hikvision AE-MH0804(RJ45) — AE-MH0804

Analog Camera: 8-ch HIK wiring sequence analog camera, Max. 1080P
IP Camera: 4-ch connected via PoE interfaces
Two-way Audio: 1, integrated in EXT.DEV interface
Audio Output: 1, integrated in EXT.DEV interface
Video Output: Main output: 1, integrated in EXT.DEV interface Aux output：1，4-pin aviation connector VGA: 1
Video Compression: H.265,H.264
Audio Compression: G.711a/G.711u/G.722.1/G.726
Audio Bit Rate: 16 Kbps to 64Kbps

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Video/Audio Output
Audio Output1, integrated in EXT.DEV interface
Video OutputMain output: 1, integrated in EXT.DEV interface
Aux output：1，4-pin aviation connector
VGA: 1

Encoding/Decoding Parameters
Video CompressionH.265,H.264
Audio CompressionG.711a/G.711u/G.722.1/G.726
Audio Bit Rate16 Kbps to 64Kbps
Stream TypeVideo, video & audio
Dual StreamSupported
Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
Encoding ResolutionMain stream: 1080P/720P/WD1/4CIF
Sub-stream: 720P/WD1/4CIF/2CIF/CIF

Storage
SD Card Storage1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）
HDD/SDD2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
HDD/SSD data can be exported locally via this converter (optional)
Hard Disk Case with heating function (optional)

Auxiliary Interface
Wi-FiWI2.4G model: 1 × 2.4 G Wi-Fi antenna,
WI5.8G model: 2 × 5.8 G Wi-Fi antenna
(Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is
needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC
module.)
Network InterfaceFront panel :1 ×10M/100M RJ45
Rear panel: 1 × 10M/100M/1000M RJ45
Serial Port3 × RS-232(harness is optional). 2 × RS-485. 1 × RS-485 (integrated in EXT.DEV interface)
USB InterfaceFront panel: 1 × USB 3.0
Rear panel: 1 × USB 2.0 (5-pin aviation connector)
Sensor-in4 high/low level signal inputs
Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Alarm Output2 relay signal outputs
CAN Interface2

Positioning
GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna

Smart Function
Advanced Driving Assistance System (ADAS)Supports detection and alerts for FCW/LDW/SLW/HMW/PCW/TSR
Driving Status Monitoring (DSM)Supports detection and alerts for distraction/fatigue/calling/smoking/unfastened seat belt/yawning/absence from post/IR-blocking sunglasses/occlusion, with switchable A-pillar algorithm and formal attire algorithm
Blind Spot Detection (Right)Supports right blind spot detection and alerts
Driver IdentificationSupports driver modeling, driver detection & comparison, driver change alerts, abnormal identity detection & reporting, and attendance tracking

General
Power Supply+9 to +36 VDC
Power ConsumptionStandby: ≤ 0.5 W
Full load: ≤ 90 W
Note: Without peripheral and storage media ≤ 20 W
Operating Temperature-25 °C to +70 °C (-13 °F to +158°F)
Operating Humidity10% to 95% (non-condensing)
Operation MethodMouse, IR remote control, Web control, and display screen
Product Dimension202 × 267.6 × 93.9 mm (7.95 × 10.54 × 3.7 inch)
Weight (Without Storage Media)3.31 kg (7.3 lb)
