Hikvision DS-2XM6122G0-I(D)(M)(/ND)(AE)

Artikul: HC-DS-2XM6122G0-I(D)(M)(/ND)(AE)

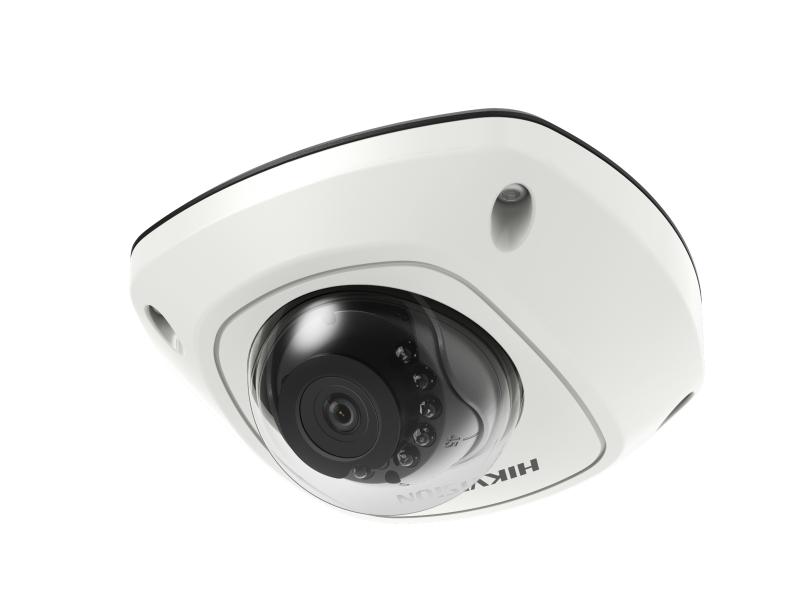

Hikvision DS-2XM6122G0-I(D)(M)(/ND)(AE) — 2MP 1/2.8 Mobile Dome (günbəz) kamera

Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: No
Wide Dynamic Range: 120 dB
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0° to 30°, tilt: 0° to 75°, rotate: 0° to 355°
Focal Length & FOV: 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Lens
Focal Length & FOV4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91°
6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°
Lens MountM12
ApertureF1.6

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Third Streamno
Video Compression Main Stream: H.265/H.264
Sub-Stream: H.265/H.264
Video Bit Rate256 Kbps to 8 Mbps
H.264 TypeBaseLine Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding

Network
ProtocolsTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SNMP, QoS, FTP，SMTP，HTTPS
Simultaneous Live ViewUp to 8 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
User/HostUp to 32 users,3 levels: Administrator, Operator and User
Network StoragemicroSD/SDHC/SDXC card (up to 128 GB),
ClientNo
Web BrowserPlug-in required live view: IE10;

Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule
Image EnhancementBLC, 3D DNR,
DNR 3D DNR

Interface
Ethernet InterfaceWithout -M: 1 RJ45 10M/100M self-adaptive Ethernet port
-M: 1 four-core M12 aviation plug
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Audio 1 built-in mic, mono sound
Alarm No
Reset KeyYes

General
Camera DimensionCamera：99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)
With package：252 × 160 × 95mm (9.9″ × 6.3″ × 3.7″)
Camera WeightCamera: Approx. 430 g (0.9 lb.)
With package: 780 g (1.7 lb.)
Startup and Operating Conditions -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
General Function Anti-flicker, heartbeat, mirror,
Power Supply-ID: 9-36V, Ø5.5 mm coaxial power plug
-IM/ND: PoE (802.3af, 36 V to 57 V)
