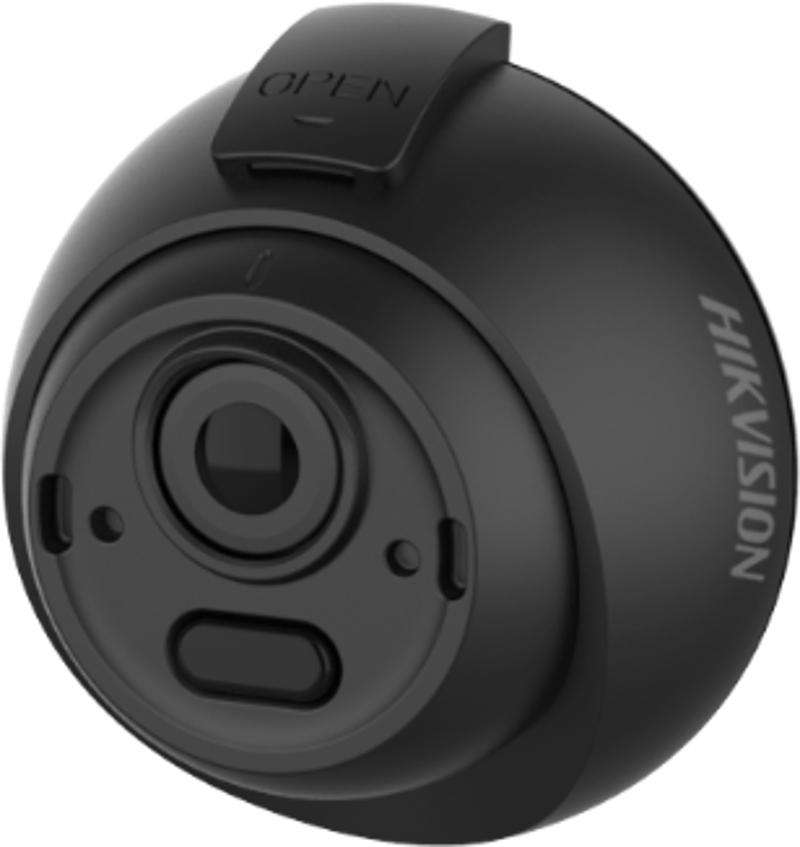

Analoq Kameralı 720P 1/2.9 düymlük CMOS IR Kvadrat Kamera
Analoq Kameralı 720P 1/2.9 düymlük CMOS IR Kvadrat Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image SensorProgressive Scan CMOS
- Min. Illumination0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1/25 s to 1/50,000 s
- Day & NightAuto Day & Night
- Angle AdjustmentHorizontal: -35° to 35°, vertical: 0° to 70°, rotate: 0° to 360°
- Lens
- Focal Length2.1mm，2.8mm, 3.6mm optional
- Focal Length & FOV2.1 mm, horizontal FOV 126°, vertical FOV 66°, diagonal FOV 154°
2.8 mm, horizontal FOV 96°, vertical FOV 51°, diagonal FOV 115°
3.6 mm, horizontal FOV 75°, vertical FOV 44°, diagonal FOV 90° - Lens MountM12
- Illuminator
- IR Range10 m
- Video
- Frame Rate1080p @25fps
- Image
- SNR42 dB
- Interface
- Video Output1, Vp-p Composite Output (aviation plug)
- Audiobuilt-in Microphone
- General
- Product Dimension59.8 mm × 63.1 mm × 37.6 mm (2.36″ × 2.48″ × 1.48″)
- Power SupplyDC 9V~16V
- Power ConsumptionMax. 2.2 W
- Startup and Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F)
- 200 g (0.44 lb.)
