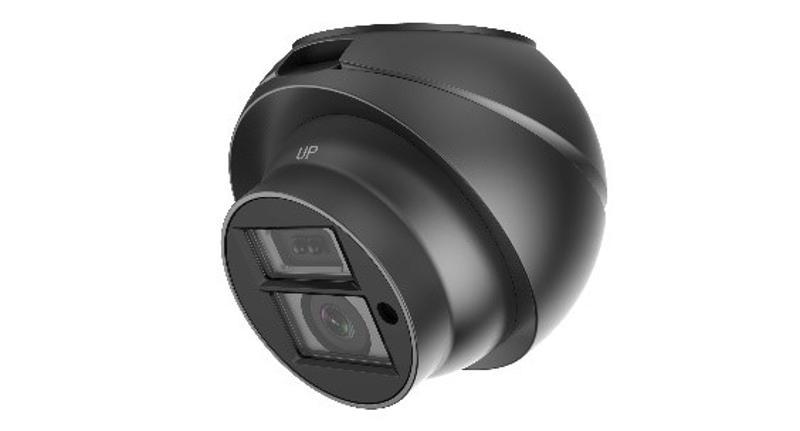

Analoq Kameralı 720P 1/2.9 düymlük CMOS IR Kvadrat Kamera
Analoq Kameralı 720P 1/2.9 düymlük CMOS IR Kvadrat Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image SensorProgressive Scan CMOS
- Shutter Speed1/25 s to 1/50,000 s
- Resolution1920×1080
- Day & NightElectronic
- Lens
- FOV2.1mm, horizontal: 117°, vertical: 66°, diagonal: 143°
2.8mm, horizontal: 96°, vertical: 50°, diagonal: 115°
3.6mm, horizontal: 75°, vertical: 44°, diagonal: 90° - Lens MountM12
- Illuminator
- IR Range10 m
- Video
- Frame Rate1080P@25fps
- Audio
- Built-in MicYes
- Image
- SNR42 dB
- Interface
- Video Output1, Vp-p Composite Output (aviation plug)
- AudioAudio output: 1, aviation plug (linear resistance: 1 kΩ)
Audio Input: Build-in MIC - Interface TypeAviation Pin Order
1: Video, 2: Audio, 3: Power, 4: Ground
- General
- Product Dimension74 mm × 64.5 mm × 71.1 mm (2.9″ × 2.5″ × 2.8″)
- Power Supply9 to 16 V DC
- Power ConsumptionMax. 2.2 W
- Startup and Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F), humidity 90% or less
- Approx. 200 g (0.44 lb.)
