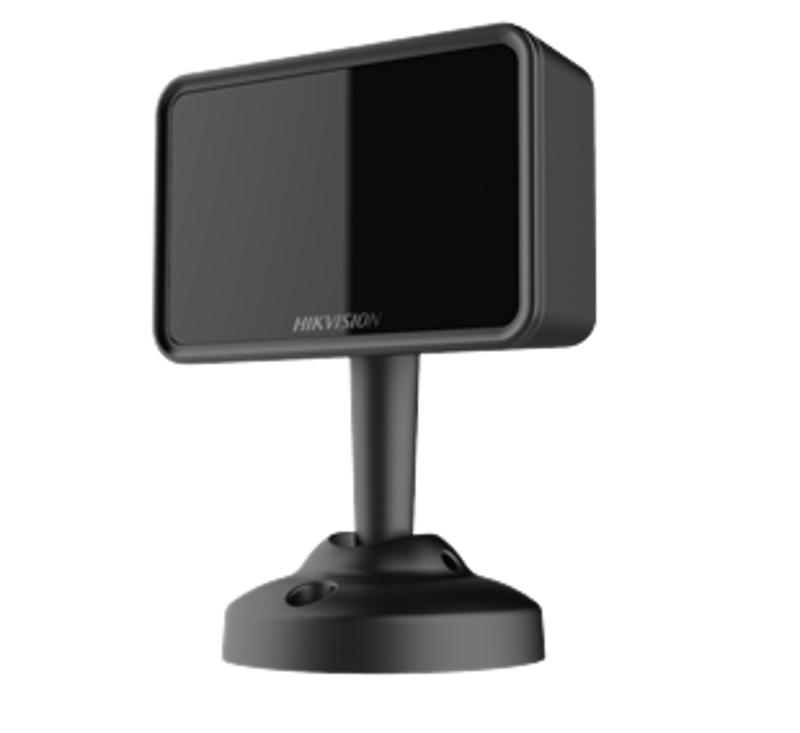

Analoq Kameralı 720P 1/2.9 düymlük CMOS IR Kvadrat Kamera
Analoq Kameralı 720P 1/2.9 düymlük CMOS IR Kvadrat Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image SensorProgressive Scan CMOS
- Min. Illumination0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1/25 s to 1/30,000 s
- Case TypeSquare
- P/NAviation head：PAL
BMW head：NTSC - Resolution1280×720
- Day & NightNA
- Lens
- FOV6mm: horizontal: 60, vertical: 52°, diagonal: 28°
- Lens MountM12
- Lens Type6 mm
- Illuminator
- IR Range2 m
- Video
- Frame RateAviation head：720P@30 fps
BMW head：720P@25 fps
- Audio
- Built-in MicYes
- Built-in SpeakerNo
- Image
- Wide Dynamic Range (WDR)NA
- SNR42 dB
- Interface
- Video Output1-way coaxial HD, conforming to HDTVI
- AudioYes
- Interface Type1 Vpp Composite Output (aviation plug or BM4F plug)
aviation plug A:1: power, 2: ground, 3: audio, 4: video
aviation plug B:1: video, 2: Audio, 3: power, 4: ground
BM 4F plug: 1:power ,2：ground，3：Video，4：Audio
- General
- Product Dimension66 mm x 44 mm x 34.1 mm
- ProtectionNA
- Power Supply9 to 16 V DC
- Power ConsumptionMax. 2.5 W
- Camera MaterialMetal
- Startup and Operating Conditions-40 °C to 75 °C (-40 °F to 167 °F), humidity 90% or less
