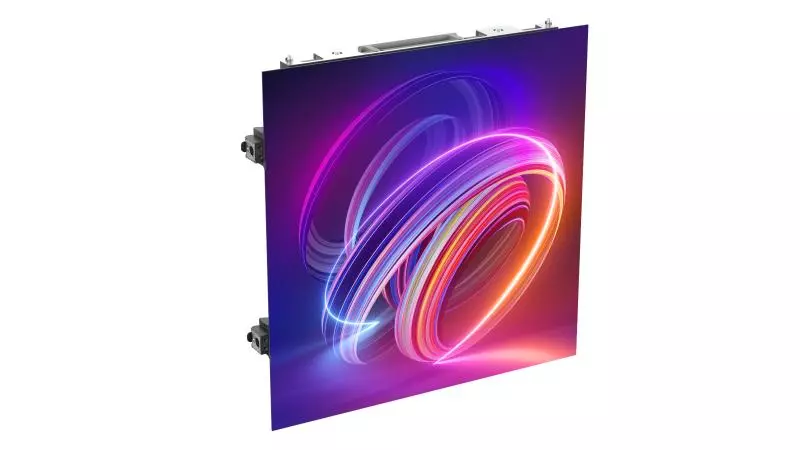

Hikvision DS-D4629CE22-1AB — icarə üçün LED ekran
- Pixel Configuration: SMD Triad LED
- Pixel Pitch Category: P2.9
- Pixel Pitch: 2.9762 mm
- Modules Component: 2 × 2
- Dimensions (W × H × D): 500 (W) mm × 500 (H) mm × 69 (D) mm (19.69” × 19.69” × 2.72”)
- Resolution: 168 × 168
- Area: 0.25 m²
- : 7.4 kg (16.31 lb.)
- Pixel Density: 112896 dots/m²
- Lamp Board Housing: With housing
- Cabinet Material: Die-casting Aluminium
- Maintenance Method: Front & Rear maintenance
- Protection Level: IP40
- White Balance Brightness: 1000 cd/㎡
- Color Temperature: 6500K adjustable
- Viewing Angle: Horizontal 160°, vertical 140°
- Contrast Ratio: ≥ 6000:1
- Color Uniformity: ≤ ± 0.004Cx, Cy
- Brightness Uniformity: ≥ 97％
- Driving Method: 1/21
- Frame Frequency: 50/60 Hz
- Refresh Rate: 7680 Hz
- Grey Level: 14 bit
- Lamp Encapsulation: SMD2020
- Control System: Hikvision
- Power Supply: AC: 110 to 220 V ± 15%
- Max. Consumption: ≤460 W/m² (1000nits)
- Average Consumption: ≤154 W/m²
- Working Temperature: -20 ℃ to 45 ℃ (-4 ℉ to 113 ℉)
- Working Humidity: 10% RH to 90% RH (No condensation)
