Qiymət sorğusu- Display
- White Balance Brightness
4500 nit (Factory preset brightness)
5000 nit (Peak)
- Color Temperature9300K adjustable
- Viewing AngleHorizontal 160°, vertical 128°
- Contrast Ratio≥ 5000:1
- Color Uniformity≤ ± 0.004Cx，Cy
- Brightness Uniformity≥ 95％

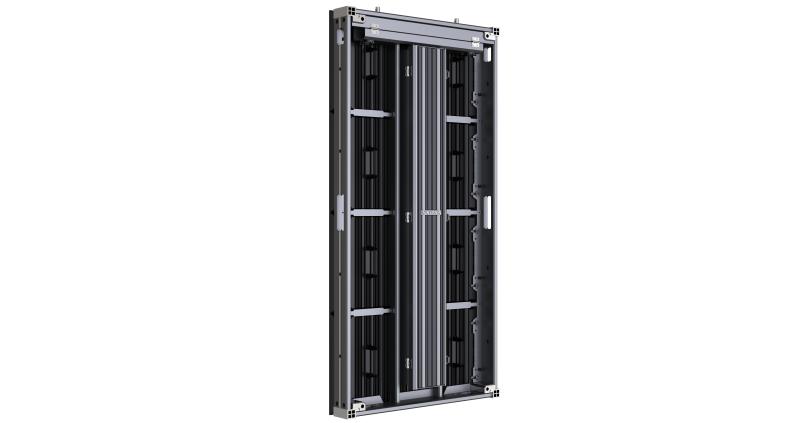

- Cabinet
- Pixel ConfigurationSMD Triad LED
- Pixel Pitch CategoryP4.8
- Pixel Pitch4.8 mm
- Modules Component1 × 4
- Dimensions (W × H × D)500 mm × 1000 mm × 97 mm （19.69″ × 39.37″ × 3.82″）
- Resolution104 × 208
- Area0.5 m²
- 18.24 kg
- Pixel Density43264 dots/m²
- Lamp Board HousingWith housing
- Cabinet MaterialAluminum Profile
- Maintenance MethodFront and Rear maintenance
- Cabinet Flatness0.8 mm
- Protection LevelIP66
- Processing Performance
- Driving MethodConstant current driving
- Frame Frequency50/60 Hz
- Refresh RateUp to 3840 Hz
- Grey Level14 bit adjustable
- Key Material
- Control SystemHikvision
- Power
- Power Supply110 to 220 VAC ± 15%
- Max. Consumption≤ 521 W/㎡ （5000nits）
- Average Consumption≤ 174 W/㎡ （5000nits）
- Working Environment
- Working Temperature-40 ℃to 60 ℃(-40 ℉ to 140 ℉)
- Working Humidity10%~95%RH (No condensation)
- Storage Humidity10%~95%RH (No condensation)
- Storage Temperature-40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)
- Relative HumidityNotice：If used in the following scenarios, please communicate with headquarters for customization：1）Seaside 2）Swimming pool3）Ambient temperature ≤-40℃
- General
- Gross Weight20.6 kg/1 in 1
- Package Dimension (W × H × D)1108 mm x 165 mm × 606 mm（38.25″ × 6.50″ × 23.86″）
- Packing ListThree-in-one document (Certificate of Conformity / Warranty Card / Material Safety Data Sheet), accessory list × 1
- LifespanLamp 100,000 hours
