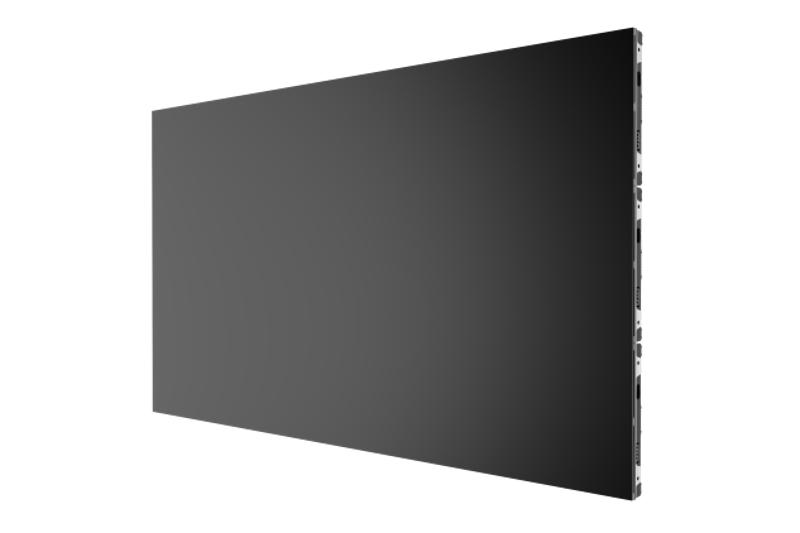

Yüksək Parlaqlıqlı LED Blok P1.2 COB 2-ci Nəsil
Yüksək Parlaqlıqlı LED Blok P1.2 COB 2-ci Nəsil
Sorğu əsasında
Qiymət sorğusu- Cabinet
- Pixel ConfigurationFlip-chip COB
- Pixel Pitch CategoryP0.7
- Pixel Pitch0.78 mm
- Modules Component2 Panel
- Dimensions (W × H × D)600 mm × 337.5 mm ×45.6 mm （ 23.62” x 13.29” x 1.80” ）
- Resolution768 × 432
- Area0.2025 m²
- 6.5 Kg ( 14.3 lb )
- Pixel Density1638400 dots/m²
- Lamp Board HousingNo housing
- Cabinet MaterialDie-casting Aluminum
- Maintenance MethodFront & Rear
- Cabinet Flatness0.1 mm
- Protection LevelFront protection level IP65
- Display
- White Balance Brightness600 cd/m²
- Color Temperature3000 K to 10000 K adjustable
- Viewing AngleHorizontal 160°, vertical 160°
- Contrast Ratio15000 ：1
- Color Uniformity≤ ± 0.003Cx，Cy
- Brightness Uniformity≥ 97％
- Processing Performance
- Driving MethodConstant current driving
- Frame Frequency60 Hz
- Refresh RateUp to 3840 Hz
- Grey LevelUp to 16 bit
- Display Color281 trillion
- Power
- Power SupplyAC100～240V(50-60Hz)
- Max. Consumption≤ 470 W/m²
- Average Consumption< 157 W/m²
- Working Environment
- Working Temperature-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
- Working Humidity10%~80%RH
- Storage Humidity10%~80%RH
- Storage Temperature-40 °C to 60 °C (-40 °F to 140 °F)
- General
- Gross Weight14.5 Kg ( 32.0 lb )
- Package Dimension (W × H × D)712 mm × 362 mm ×448 mm (1 Package 4)( 28.03” x 14.25” x 17.64”)
- LifespanLamp 100,000 hours
