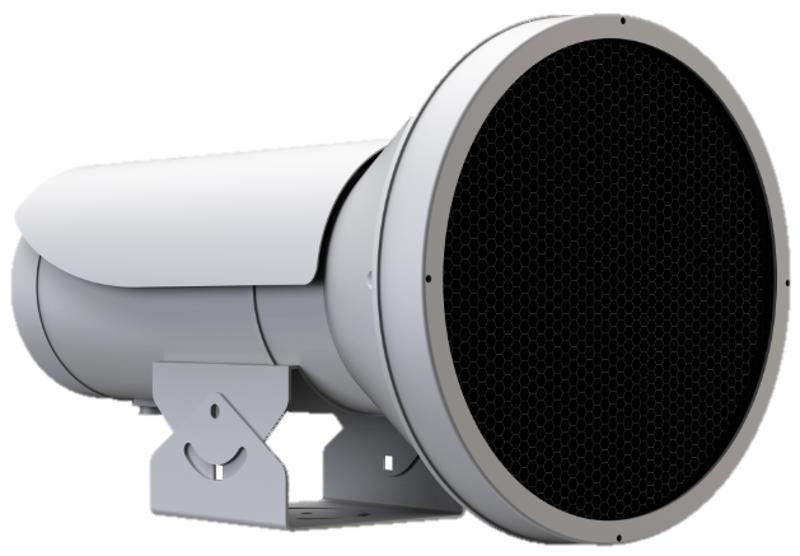

Qiymət sorğusu- Supplement Light
- Light TypeWhite light
- Center Illuminance3000 lx
- Angle of Light10°
- Effective Distance 16 to 25 m
- Response Time ≤ 67 ms
- Color Temperature3000 K
- Trigger Manner TTL level (switch trigger optional)
- Trigger Level 5 to 12 V(High level trigger)
- Trigger Frequency0.5 Hz
- Flash Energy200 J
- Service Life≥ 20 million Times
- Coverage1 lane(s)
- Interface
- RS-4851 RS-485
- Flash Trigger Input1 Flash trigger input
- Function
- Day and Night Function Supports ambient brightness detection and auto startup at low illumination (optional)
- Brightness Control0 to 100 levels of brightness
- Remote Control Support
- General
- Power
AC 220 V ±20%, 3.5 A, max. 60 W, two-core terminal block
- MaterialAluminium alloy
- Dimensions469 mm × 269.5 mm × 270.76 mm (18.46″ × 10.61″ × 10.66″) (L × W × H)
- Package Dimensions536 mm × 345 mm × 355 mm (21.10″ × 13.58″ × 13.98″) (L × W × H)
- Weight Approx. 5.2 kg (11.53 lb.)
- With Package WeightApprox. 6.6 kg (14.48 lb.)
- Operating Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (non-condensing)
- Storage Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (Non-condensing)
- Approval
- EMCEN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
- Safety
CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014,
CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection
IP65: IEC 60529: 1989+A1: 1999+A2: 2013
