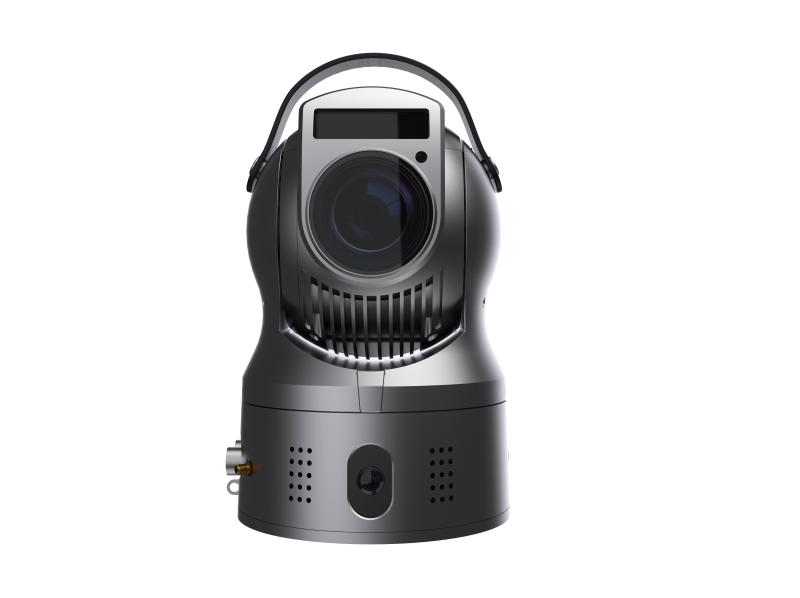

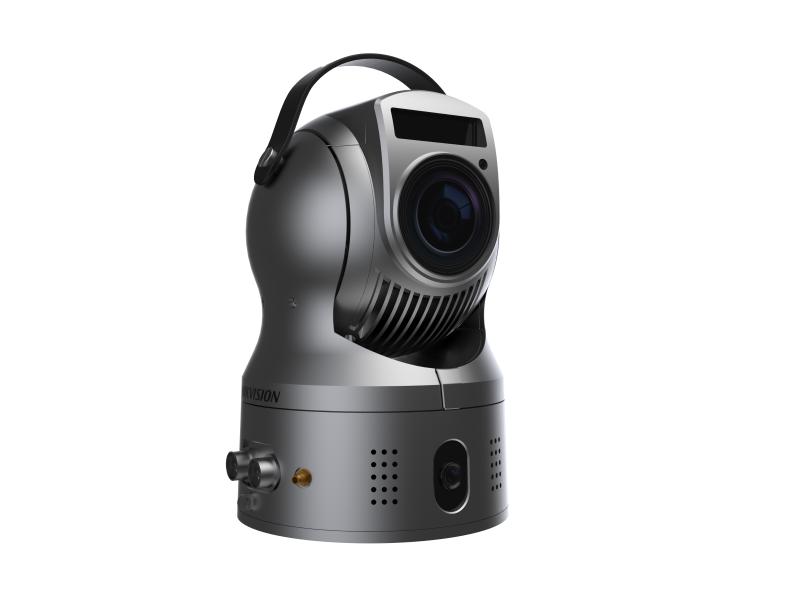

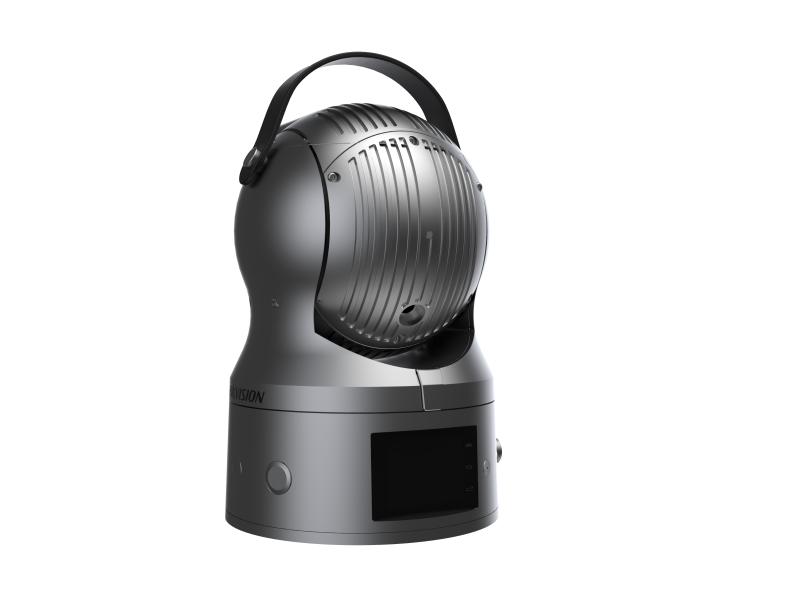

4G Portativ İkiqat Linzalı ANPR Sürətli Günbəz Kamerası
4G Portativ İkiqat Linzalı ANPR Sürətli Günbəz Kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image SensorLens 1: 1/1.8″ progressive scan CMOS
Lens 2: 1/1.8″ progressive scan CMOS - Zoom36x Optical, 12x Digital
- Max. Resolution3840 × 2160
- Min. IlluminationLens 1: Color: 0.005 Lux @ (F1.3，AGC ON) ; Black: 0.0005 Lux @(F1.3，AGC ON)
Lens 2: Color: 0.02Lux @ (F1.7，AGC ON) ; Black: 0.02Lux @(F1.7，AGC ON) - Day & NightSwitch IR Cut Filter Automatically
- Optical Image StabilizationSupported
- Lens
- Focal LengthLens 1: 6~216 mm
Lens 2: 2.8 mm fixed lens - ApertureLens 1: F1.3 – F4.6
Lens 2: F1.7 - FOVLens 1: Horizontal FOV: 59° to 2.0°, Vertical FOV: 34.2° to 1.1° , Diagonal FOV: 67.1° to 2.3°
Lens 2: Horizontal FOV: 102°, Vertical FOV: 56°, Diagonal FOV: 123° - Zoom SpeedApprox. 4.6 s (optical lens, wide-tele)
- Video
- Video CompressionH.264, H.265, MJPEG
- Video FormatPS
- Main StreamLens 1: 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 720 × 576)
Lens 2: 60 Hz: 30 fps (3840 x 2160, 3072 x 1728, 704 × 240, 352 x 240) - Sub StreamLens 1: 60 Hz: 12fps(1920 x 1080); 30 fps (1280 × 720, 704 x 480, 704 × 240, 352 x 240)
Lens 2: 60 Hz: 30 fps (1280 x 720, 704 × 240, 352 x 240)
- Audio
- Audio CompressionG.711ulaw, G.711alaw, G.722.1
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1)
- Image
- Wide Dynamic Range (WDR)120 dB
- Image Enhancement 3D DNR, Defog, EIS
- Image FormatJPEG
- Screen
- Screen TypeLCD
- TouchscreenSupported
- Screen Size2.0″
- Resolution320 × 240
- Storage
- RAM2 GB
- ROM4 GB
- IR
- IR RangeUp to 100 m
- IR Wavelength850 nm
- Wireless Network
- Positioning ModeGPS
- Wi-Fi Frequency Band2.412 to 2.472 GHz, 5.15 to 5.25 GHz, 5.725 to 5.875 GHz
- Wi-Fi Protocol 802.11 a/b/g/n/ac
- Cellular NetworkOnly available for models with /GLE :
GSM: 850/900/1800
WCDMA: B1/B5/B8
FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE: B38/B40/B41 - BluetoothBT4.0
- Network
- ProtocolHTTPS, RTSP, NTP, FTP
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- Interface
- Indicator1 status indicator: charging/power on/power off
- ButtonPower on/off
- SIM CardAvailable for models with ‘/GLE’: 1 slot (fit for Micro-SIM)
- Ethernet1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
- Aviation Plug10-Core Aviation Plug: supporting RS-232, RJ45 and power input
9-Core Aviation Plug: supporting RS-485, LINE IN/LINE OUT，5V output，Alarm I/O - Extended StorageBuilt-in 2 memory card slots, supporting TF card, up to 256 GB for each
- Event
- License Plate RecognitionSupported
- Smart EventVehicle recognition, face recognition, helmet detection, phone call, workwear detection, smoking detection, area invasion, intrusion detection (supports 4 areas)
- PTZ
- Preset256 arming locations
- Movement Range (Pan) 360° endless
- Movement Range (Tilt) -20° to 90° (Auto-flip)
- Patrol Scan8 patrols
- General
- Operating Condition-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
- Operating SystemLinux
- Storage Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Light SensorSupported
- MICSupported
- Speaker2 Built-in speakers, Max. power consumption: 2.5 W, Max. sound pressure level: 102 dB (10 cm)
- ClientHik-Connect, HikCentral Pro, HikCentral Master
- Web BrowserPlug-in required live view: IE 10+
- Dimension175 mm×175 mm×262 mm (6.9″×6.9″×10.3″)
- Power12 VDC, 5.0 A, max. 60 W
- 4.35 kg (9.59 lb.)
- Installation MethodWall-Mounted, Tripod-Mounted, Movable Bracket
- Packing List1×AC power cord
1×Lithium ion battery
1×Adapter
1×Safety rope
1×C92-screwdriver
1×Composite cable
- Battery
- Battery LifeUp to 9h in 4MP resolution¹
- Battery TypeLithium-ion battery, dismountable
- Capacity13400 mAh
- Charging Time≤ 4 h
- Approval
- RFCE-RED : EN 301 489-1 V2.2.3:2019; EN 301 489-3 V2.2.2:2019; EN 301 489-17 V3.2.4:2020; EN 301 489-19 V2.2.1:2022; EN 301 489-52 V1.2.1:2021; EN 55032:2015/A11:2020; EN 55035:2017/A11:2020; EN 50130-4:2011/A1:2014; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021; EN 300 328 V2.2.2:2019; EN 301 893 V2.1.1.1:2017; EN 301 440 V2.1.1:2017; EN 301 908-1 V15.1.1:2021; EN 301 908-2 V13.1.1:2020; EN 301 908-13 V13.2.1:2022; EN 303 413 V1.2.1:2021; EN 62479:2010; EN 50663:2017; EN 50385:2017; EN IEC 62311:2020; EN 62311:2008; EN 62368-1:2014/A11:2017
- EMCCE-EMC: EN 55032:2015/A11:2020; EN 55035:2017/A11:2020; EN 50130-4:2011/A1:2014; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021
- SafetyCB: IEC 62368-1:2018
CE-LVD: EN 62368-1:2014/A11:2017 - EnvironmentCE-RoHS: 2011/65/EU
- ProtectionIP66
- Warranty
- Warranty
2 years for the device, 1 year for the battery
