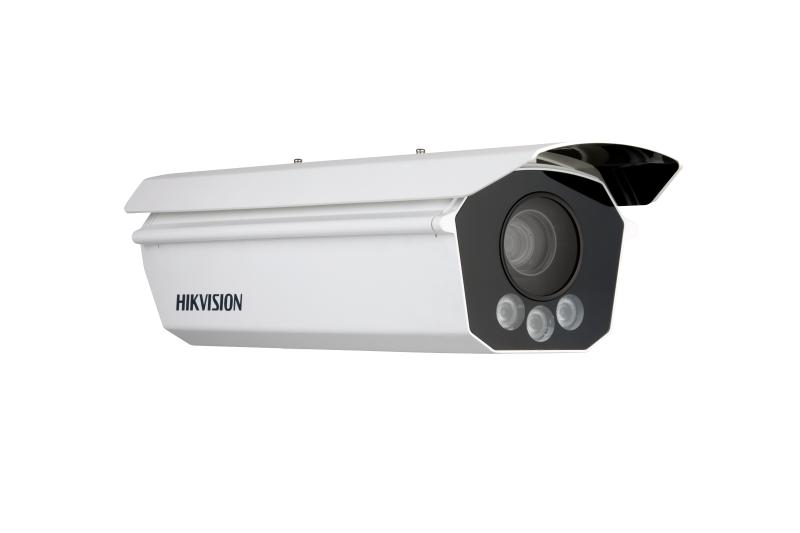

9 MP ANPR Kəsişmə Qaydalarının Pozuntu Qeydiyyat Bölməsi
9 MP ANPR Kəsişmə Qaydalarının Pozuntu Qeydiyyat Bölməsi
Sorğu əsasında
Qiymət sorğusuImage Sensor | 5 MP (2/3” GMOS) |
Max. Resolution | 2464 × 2056 |
Min. Illumination | Color: 0.001 Lux@(F1.4, AGC ON) |
Shutter Time | 50 us-20000 us |
Lens Type | ;Varifocal lens, manual adjustment, 15 to 50 mm |
Focal Length & FOV | 15 to 50 mm, horizontal FOV 42.7° to 13.7°, vertical FOV 23.4° to 7.6°, diagonal FOV 49.7° to 15.8° |
Focus | Manual |
Aperture | F1.4-C |
Built-in Supplement Light Type | White light |
Light Bead | 3 |
Built-in Supplement Light Range | Up to 30 m |
External Supplement Light | Strobe and flash light |
Main Stream | ;50 Hz: 50 fps (2464 × 2056, 2448 × 2048, 2048 × 1536, 1920 × 1080, 704 × 576);60 Hz: 30 fps (2464 × 2056, 2448 × 2048, 2048 × 1536, 1920 × 1080, 704 × 576) |
Sub-Stream | ;50 Hz: 50 fps (2448 × 2048, 2048 × 1536, 1920 × 1080, 704 × 576);60 Hz: 30 fps (2448 × 2048, 2048 × 1536, 1920 × 1080, 704 × 576) |
Third Stream | ;50 Hz: 50 fps (2048 × 1536, 1280 × 720, 704 × 576);60 Hz: 30 fps (2048 × 1536, 1280 × 720, 704 × 576) |
Video Compression | Main stream: H.265/H.264/MJPEG;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.264 Type | Baseline profile/Main profile/High profile |
H.265 Type | Main profile |
Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IPv4, IPv6, UDP, SNMP, 802.1X, QoS |
Simultaneous Live View | Up to 6 channels |
API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
User/Host | Up to 32 users;3 user levels: administrator, operator and user |
Security | Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5) |
Network Storage | MicroSD/TF card (512 GB), local storage and CVR, NVR, ANR |
Client | iVMS-4200 (Only for live view and LPR information search),Hik-Central Master,Hik-Central Pro,HikCentral Master Lite |
Web Browser | IE8-IE11, plug-in free live view supported |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser. |
Day/Night Switch | Auto/Scheduled/Triggered by alarm in |
SNR | 60 dB |
Image Enhancement | BLC, HLC, 3D DNR |
Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format. |
Ethernet Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces |
On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
Alarm | 2 input interfaces (T1, SYNC), 7 output interfaces |
RS-485 | 3 RS-485 interfaces (half duplex, HIKVISION) |
RS-232 | 1 RS-232 interface |
USB | 1 USB 2.0 interface |
Basic Event | HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception |
Coverage | Up to 2 lanes |
Trigger Mode | External I/O trigger/Radar trigger/Video trigger |
Smart Function | License plate recognition;Vehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection |
LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,;Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,;Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,;America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,;Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,;Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%,Vehicle moving direction recognition accuracy > 98.5%,LPR accuracy > 98%,Mistaken capture rate < 2% |
No License Plate Detection | Supported |
Motorcycle LPR | Supported |
Vehicle Type | Car/Van/Bus/Truck/Light Truck/SUV(MPV)/Pickup/Pedestrian/Motorcycle/Tricycle |
Vehicle Color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black |
Vehicle Manufacturer | 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu,;Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO |
License Plate Color Recognition | Customized to support |
Driving on Lane Line Detection | Supported (only strobe light mode) |
Lane Change Detection | Yes (only strobe light mode) |
Wrong-way Driving Detection | Supported |
Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
Capture Speed Range | 10 to 320 km/h |
Operating System | Linux |
Power | AC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block |
Material | Aluminum alloy |
Dimension | 500.5 mm × 175.7 mm × 141.1 mm (19.7″ × 6.7″ × 5.5″) |
Package Dimension | 677 mm × 357 mm × 224 mm (26.6″ × 14″ × 8.8″) |
Weight | Approx. 5.13 kg (11.31 lb.) |
With Package Weight | Approx. 7.4 kg (16.3 lb.) |
Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing) |
Storage Condition | -30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (Non-condensing) |
General Function | three streams, heartbeat, password protection, watermark |
Heater | Supported |
EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
Safety | CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017 |
Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
Protection | IK10: IEC 62262:2002,IP66: IEC 60529-2013 |
