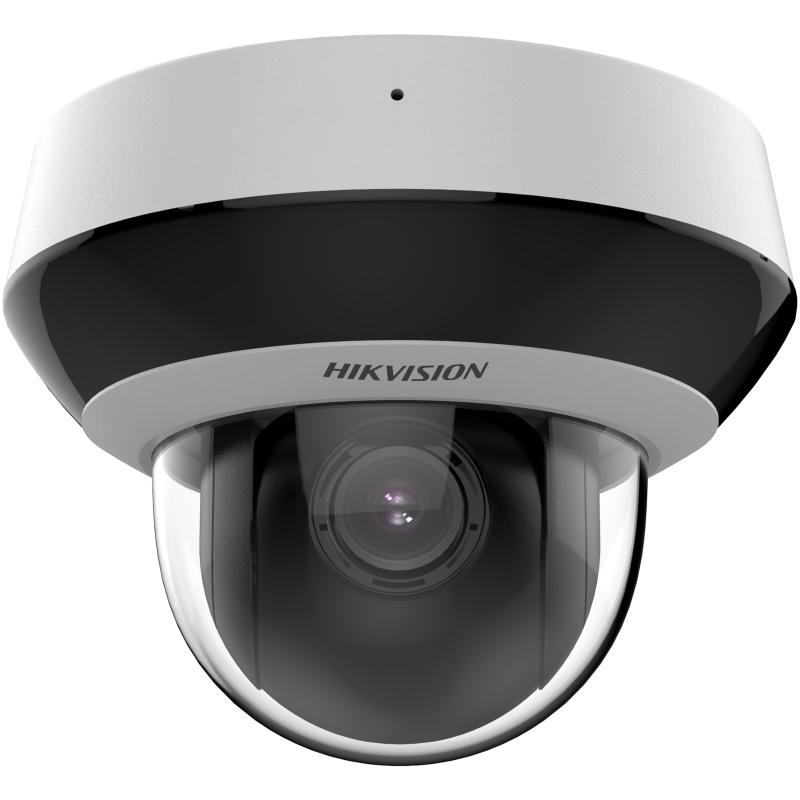

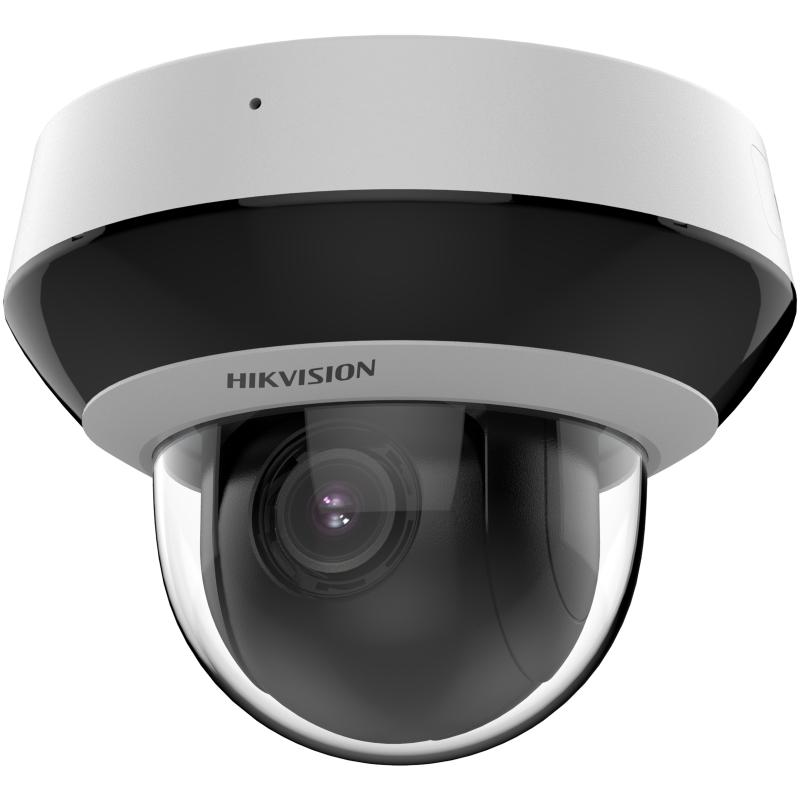

TandemVu 4MP+4MP 10X PoE PTZ Şəbəkə Kamerası
TandemVu 4MP+4MP 10X PoE PTZ Şəbəkə Kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor 1/2.8″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR
- Shutter Speed1/1 s to 1/30,000 s
- Day & NightIR cut filter
- Zoom4x optical, 16x digital
- Slow ShutterYes
- Lens
- Focal Length2.8 to 12 mm, 4 × Optical
- FOVHorizontal field of view: 99.4° to 30.6°, vertical field of view: 51.8° to 17.2°, diagonal field of view: 120° to 35.1°
- FocusAuto, semi-auto, manual
- ApertureMax. F1.8
- Zoom SpeedApprox. 2 s
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeIR Distance: up to 20 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- PTZ
- Movement Range (Pan)0° to 355°
- Movement Range (Tilt)0° to 90°
- Pan SpeedPan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
- Proportional PanYes
- Presets300
- Park ActionPreset,patrol scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled Taskpatrol scan,Preset,dome reboot,dome adjust
- Power-off MemoryYes
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed regions for main stream
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
- Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.726)
- Audio Sampling Rate8 kHz,16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live ViewUp to 6 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/HostUp to 32 users; 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserChrome80+、Firefox80+、Safari13+、Edge89+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR＞52dB
- DefogDigital Defog
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone1 built-in microphone, picking upsounds in the radius up to 5 meters
- Built-in Speaker1 built-in speaker, with effective distance reaching max. 10 meters
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
- ResetYes
- Power Output12 VDC, max. 60 mA
- Event
- Basic EventMotion detection, video tampering alarm, exception
- Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection
- Linkagenotify surveillance center,audible warning,trigger recording,send email,Upload to FTP/NAS/memory card
- General
- Power12 VDC, Max. 9.2 W; PoE (802.3af)
- DimensionØ130.7mm × 103.6 mm (Ø5.15″ × 4.00″)
- Weight: Approx. 560 g (1.23 lb.),With Package Weight: Approx. 780 g (1.72 lb.)
- Operating Condition-20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
- General FunctionMirror, password protection
- Approval
- ProtectionIP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection
