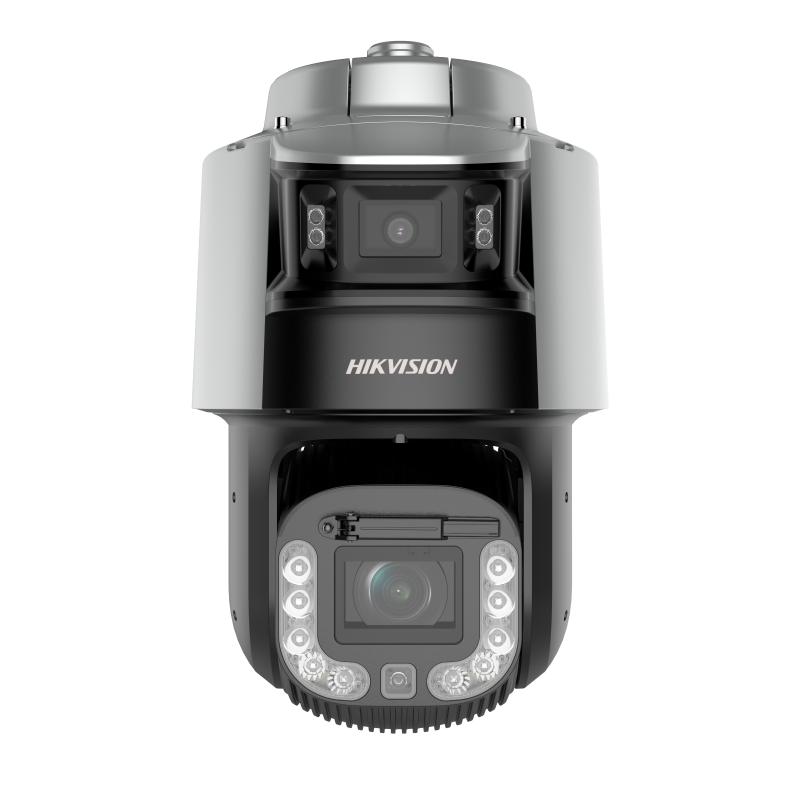

Hikvision DS-2SF8C848MXG2/LM-EL(W)(Y)/14

[Bullet channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.2″ Progressive Scan CMOS

[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light,
[PTZ channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (FF1.6, AGC ON), 0 lux with IR

1/25 s to 1/30000 s

Yes

[Bullet channel] Color, [PTZ channel] IR cut filter

[PTZ channel] 48 × optical, 16 × digital

[Bullet channel] 2688 × 1520, [PTZ channel] 3840 × 2160

Auto,semi-auto,manual

[Bullet channel] No, [PTZ channel] approx. 1.5 s

[Bullet channel] 4 mm, [PTZ channel] 6.25 to 300 mm

[Bullet channel] horizontal field of view: 89° ± 5°, vertical field of view: 45° ± 5°, diagonal field of view: 107° ± 5°, [PTZ channel] horizontal field of view: 59.1° to 2°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3°

[Bullet channel] F1.0, [PTZ channel] F1.6

[Bullet channel] White Light and IR, [PTZ channel] IR

[Bullet channel] White Light: up to 40 m, IR: up to 80 m
[PTZ channel] Laser Distance: up to 500 m

Yes

[PTZ channel] 0° to 360°

[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°

[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s

[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

[Bullet channel] No, [PTZ channel] Yes

300

8 patrols, up to 32 presets for each patrol

4 pattern scans, record time over 10 minutes for each scan

Yes

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan

Yes

Yes

Yes

Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

[Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440), 60 Hz: 30 fps (2688 × 1520, 2560 × 1440)
[PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2688 × 1520), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (3840 × 2160, 2688 × 1520), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.

[Bullet channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

[Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG

32 Kbps to 16 Mbps

Baseline profile,Main profile,High profile

Main profile

H.264 and H.265 encoding

8 fixed regions for each stream

G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM

64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)

8 kHz,16 kHz,32 kHz,48 kHz

Yes

ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP

Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2

NAS (NFS, SMB/CIFS),auto network replenishment (ANR)

IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP

Up to 20 channels

Up to 32 users. 3 user levels: administrator, operator, and user

iVMS-4200,HikCentral Pro,Hik-Connect

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+；
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Model type for AI Open Platform trained algorithm loading: high-performance model (small model), enhanced high-performance model (hybrid small-large model), and ultra-high-precision model (large model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 1 target. The device runs up to 2 small models or 1 large model at the same time.

Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR, Segmentation, Image Comparison. Supports simultaneous independent operation of 2 models. Supports video analysis and image analysis.
Algorithm type for AI Open Platform enhanced high-performance model (hybrid small-large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications). Supports video real-time analysis.
Algorithm type for AI Open Platform ultra-high-precision model (large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR. Supports image scheduled analysis and I/O-triggered analysis.
Supports algorithm orchestration for comparison. Supports importing user-defined orchestration packages (3 operator nodes, 5 logic nodes) for scenario-based application deployment.

Region target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, area status change detection, line crossing target detection, line crossing target counting, OCR trigger, full analysis rule, combined rule

Up to 16 rules. Supports moving target filtering and shield region setting.

Day,night,auto,schedule

3D DNR,HLC,BLC,EIS

[Bullet channel] 120 dB, [PTZ channel] 140 dB

Digital defog

EIS (Built-in gyroscope to improve EIS performance)

Yes

[Bullet channel] No, [PTZ channel] Yes

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Yes

[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

≥ 52 dB

No

Yes

No

1 RJ45 100M self-adaptive Ethernet port

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .

7 input(s), 2 output(s)

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Yes

Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
VCA range: [Bullet channel] up to 60m(nighttime)/100m(daytime), [PTZ channel] Wide: up to 70m(nighttime)/100m(daytime), Tele: up to 400m
*Result based on standard setup and test environment

This function is based on the large model technology combined with image classification detection. It can automatically detect and identify scene categories in the detection area, including road, intersection, toll station, petrol station, open-air square, vehicle entrance and exit, and person entrance and exit, etc. The PTZ camera will rotate 360° to capture and label the scenes.For automatically recognize the scene information of captured image.- Real-time detection mode: the PTZ camera completes the full-scene capture, detection, and recognition output within 10 minutes in 360°.- Scheduled detection mode: the scheduled time can be set, and pictures can be collected every day or week. The collected pictures will be stored in eMMC, and the detection results will be output at 2 AM by default.The detection results and labels can be uploaded as alarms, and the alarm should include the camera IP address, port No., channel No., capture time, upload time, picture, PTZ coordinates, label ID, label name, and OCR information, as well as the coordinates of each OCR.

[PTZ channel & bullet channel] alarm input and output, exception,[PTZ channel] video tampering alarm

unattended baggage detection,object removal detection,people gathering detection,loitering detection,fast moving detection,parking detection

[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan), [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording

[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle

Detects up to 30 faces simultaneously,
Uploads face with background and closed-up face pictures

Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,
Recognizes face identity via face modeling, grading and comparing to those in face library

Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Supports detecting the level of people density in the configured area,[PTZ channel]: no, [Panoramic channel]: yes

Manual tracking, auto-tracking 3.0

Manual tracking, auto tracking, tracking takeover, linked tracking capture

Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.

password reset via e-mail,mirror,IP address filter,three streams

36 VDC± 25%, max. 90 W (Max. 75 W, including max. 16.2 W for light and max. 8 W for heater)
PoE 802.3bt, type3, class6, max. 90 W (Max. 75 W, including max. 16.2 W for light and max. 8 W for heater)

-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)

No

Yes

ADC12

Ø290 mm × 453.2 mm (Ø11.42″ × 17.84″)

Approx. 11.5 kg (25.35 lb.)

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)

CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)

CE-RoHS (2011/65/EU and its amendment (EU)2015/863)

IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line

Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No
