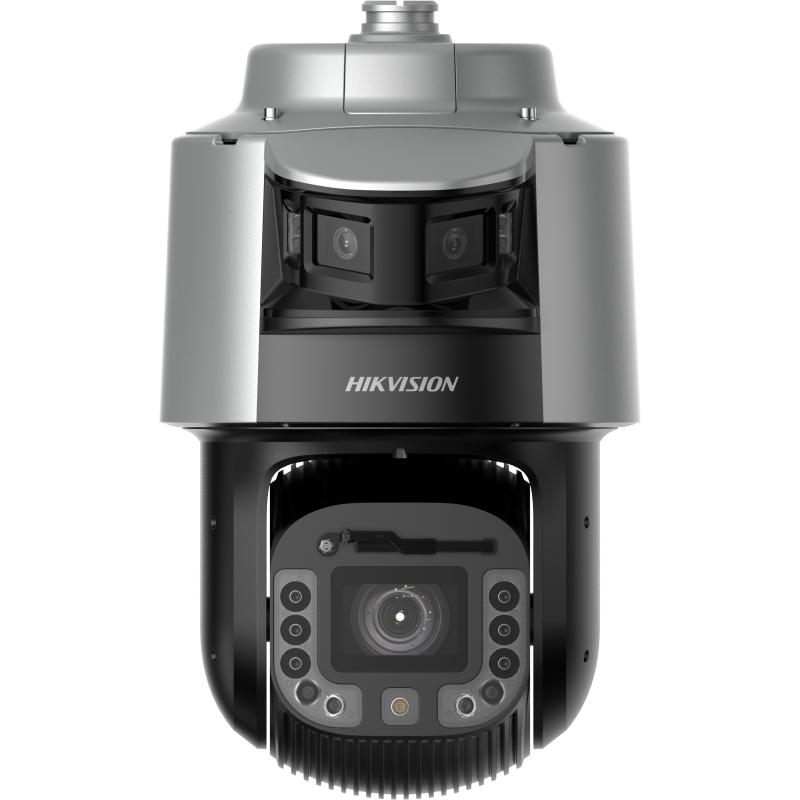

Hikvision DS-2SF8C425MXG-ELW/26

Artikul: HC-DS-2SF8C425MXG-ELW/26

Hikvision DS-2SF8C425MXG-ELW/26 — TandemVu 8C seriya Panoramic 4 MP 25X DarkFighter IP Speed Dome kamera kamera

Image Sensor: [Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
Min. Illumination: [PTZ channel] Color: 0.0005 Lux @ (F1.3, AGC ON), B/W: 0.0001 Lux @ (F1.3, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.005 Lux @ (F1.4, AGC ON), B/W: 0.001 Lux @ (F1.4, AGC ON), 0 Lux with light
Shutter Speed: 1 s to 1/30000 s
Slow Shutter: Yes
Day & Night: [Panoramic channel] Color, [PTZ channel] IR cut filter
Zoom: [PTZ channel] 25 × optical, 16 × digital
Max. Resolution: [Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440
FOV: [Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°

Sürətli çatdırılma

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor
[Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
Min. Illumination

[PTZ channel] Color: 0.0005 Lux @ (F1.3, AGC ON), B/W: 0.0001 Lux @ (F1.3, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.005 Lux @ (F1.4, AGC ON), B/W: 0.001 Lux @ (F1.4, AGC ON), 0 Lux with light
Shutter Speed
1 s to 1/30000 s
Slow Shutter
Yes
Day & Night
[Panoramic channel] Color, [PTZ channel] IR cut filter
Zoom
[PTZ channel] 25 × optical, 16 × digital
Max. Resolution
[Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440

Lens
FOV
[Panoramic channel] horizontal field of view: 190° ± 5°°, vertical field of view: 80° ± 5°, [PTZ channel] horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 65.8° to 3.5°
Focus
Auto,semi-auto,manual
Zoom Speed
[Panoramic channel] No, [PTZ channel] approx. 5.6 s
Focal Length
[Panoramic channel] 2.8 mm, [PTZ channel] 6 to 150 mm
Aperture
[Panoramic channel] F1.0, [PTZ channel] F1.6

Illuminator
Supplement Light Range
[Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
Smart Supplement Light
Yes

PTZ
Movement Range (Pan)
360° endless
Movement Range (Tilt)
[Panoramic channel] 12° to 24°, [PTZ channel] -20° to 90°
Pan Speed
[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
Tilt Speed
[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s,[Panoramic channel] tilt speed configurable
Proportional Pan
[Panoramic channel] No, [PTZ channel] Yes
Presets
300
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
Power-off Memory
Yes
Park Action
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Preset Freezing
Yes
Scheduled Task
Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

Video
Main Stream
[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[Panoramic channel] 50 Hz: 25 fps (3680 × 1656，3632 × 1632), 60 Hz: 30 fps (3680 × 1656，3632 × 1632)
Sub-Stream
[PTZ channel] 50 Hz: 25 fps (704 × 576，640 × 480，352 × 288), 60 Hz: 30 fps (704 × 576，640 × 480，352 × 288),[Panoramic channel] 50 Hz: 25 fps (1200 × 536、960×432), 60 Hz: 30 fps (1200 × 536、960×432)
Third Stream
[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline profile,Main profile,High profile
H.265 Type
Main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream

Audio
Audio Compression
G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate
32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
Audio Sampling Rate
8 kHz,16 kHz,32 kHz,48 kHz
Environment Noise Filtering
Yes

Network
API
ISUP,ISAPI,SDK,ONVIF
Network Storage
NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Protocols
IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator, and user
Security
Password protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
Client
iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser
IE 10+, Chrome 57+, Firefox 52+, Safari 12+

Wide Dynamic Range (WDR)
[Panoramic channel] 120 dB, [PTZ channel] 120 dB
Day/Night Switch
Day,night,auto,schedule
Image Enhancement
HLC,3D DNR
Privacy Mask
[Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Defog
Digital defog
Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
Regional Exposure
Yes
Regional Focus
[Panoramic channel] No, [PTZ channel] Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters Switch
Yes
SNR
≥ 52 dB

Supplement Detection
Satellite Positioning
No
Gyroscope
Yes
Compass
No

Interface
Ethernet Interface
1 RJ45 100M self-adaptive Ethernet port
On-board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Alarm
7 input(s), 2 output(s)
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
RS-485
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset
Yes

Event
Basic Event
[PTZ channel & panoramic channel] alarm input and output, exception,[PTZ channel] video tampering alarm
Smart Event
[Panoramic channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
Linkage
[Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking
[PTZ channel] yes
Smart Linkage
Manual tracking, tracking takeover, linked tracking capture

Deep Learning Function
Multi-Target-Type Detection
[PTZ channel] Supports simultaneous detection and capture of human body and face
Perimeter Protection
PTZ and Panoramic channel both support

General
General Function
mirror,password protection
Power
36 VDC ± 25%, max. 60 W,
Hi-PoE,including max. 6 W for heater and max. 3 W for supplement light of panoramic channel, and max. 6 W for heater and max. 12 W for supplement light of PTZ channel
Operating Condition
-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
Wiper
Yes
Demist
Yes
Material
ADC12
Dimension
Ø290 mm × 453.2 mm (Ø11.42″ × 17.84″)
Approx. 10.5 kg ( 23.15 lb.)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection,IK10 (IEC 62262:2002)
