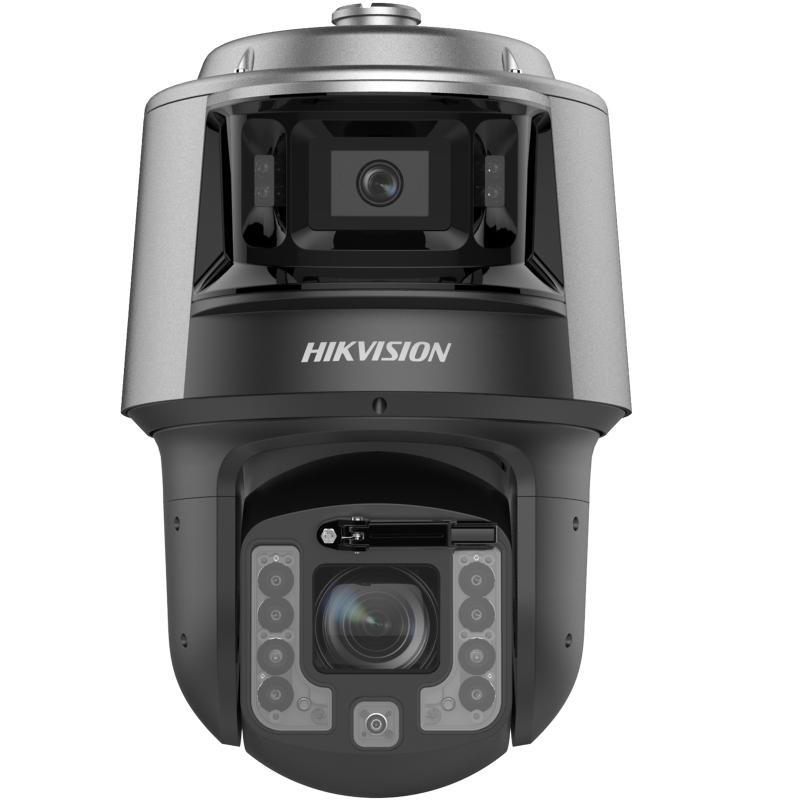

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16 MP 180° Panoramik və PTZ Kamera
16 MP 180° Panoramik və PTZ Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor[Panoramic channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
- Min. Illumination
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR,
[PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
- Shutter Speed1/25 s to 1/30000 s
- Slow ShutterYes
- Day & Night[Bullet channel] Color, [PTZ channel] IR cut filter
- Zoom[PTZ channel] 25 × optical, 16 × digital
- Max. Resolution[Bullet channel] 2688 × 1520, [PTZ channel] 3840 × 2160
- Lens
- FocusAuto,semi-auto,manual
- Zoom Speed[Bullet channel] No, [PTZ channel] approx. 4.8 s
- Focal Length[Bullet channel] 4 mm, [PTZ channel] 5.9 to 147.5 mm
- FOV[Bullet channel] horizontal field of view: 89° ± 5°°, vertical field of view: 45° ± 5°°, diagonal field of view: 107° ± 5°°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
- Aperture[Bullet channel] F1.0, [PTZ channel] F1.5
- Illuminator
- Supplement Light Type[Bullet channel] White light and IR, [PTZ channel] IR
- Supplement Light Range
[Bullet channel] White Light: up to 40 m, IR: up to 80 m
[PTZ channel] IR: up to 400 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan) [PTZ channel] 0° to 360°
- Movement Range (Tilt)[Bullet channel] 7° to 17°, [PTZ channel] -20° to 90°
- Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
- Tilt Speed[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional Pan[Bullet channel] No, [PTZ channel] Yes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Video
- Main Stream
[Bullet channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440), 60 Hz: 30 fps (2688 × 1520, 2560 × 1440)
[PTZ channel] 50 Hz: 50 fps (3840 × 2160, 2688 × 1520), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 60 fps (3840 × 2160,2688 × 1520), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.
- Sub-Stream [Bullet channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream [Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise FilteringYes
- Network
- API ISAPI,SDK,ISUP,ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TLS 1.2
- Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- ClientiVMS-4200,HikCentral Pro,Hik-Connect
- Web Browser
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+；
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- AI Open Platform
- Model SpecificationModel type for AI Open Platform trained algorithm loading: high-performance model (small model), enhanced high-performance model (hybrid small-large model), and ultra-high-precision model (large model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 1 target. The device runs up to 2 small models or 1 large model at the same time.
- Task Type
Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR, Segmentation, Image Comparison. Supports simultaneous independent operation of 2 models. Supports video analysis and image analysis.
Algorithm type for AI Open Platform enhanced high-performance model (hybrid small-large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications). Supports video real-time analysis.
Algorithm type for AI Open Platform ultra-high-precision model (large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR. Supports image scheduled analysis and I/O-triggered analysis.
Supports algorithm orchestration for comparison. Supports importing user-defined orchestration packages (3 operator nodes, 5 logic nodes) for scenario-based application deployment.
- Event TypeRegion target exception status detection, region target number counting, area overlap ratio counting, area overlap ratio exception detection, line crossing target detection, line crossing target counting, full analysis rule, combined rule
- Rule SettingUp to 16 rules. Supports moving target filtering and shield region setting.
- Image
- Day/Night SwitchDay,night,auto,schedule
- Image Enhancement3D DNR,HLC,BLC,EIS
- Wide Dynamic Range (WDR)[Bullet channel] 120 dB, [PTZ channel] 140 dB
- DefogDigital defog
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Regional ExposureYes
- Regional Focus[Bullet channel] No, [PTZ channel] Yes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters SwitchYes
- Privacy Mask[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- SNR≥ 52 dB
- Supplement Detection
- Satellite PositioningNo
- GyroscopeYes
- CompassNo
- Interface
- ResetYes
- Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB .
- Alarm7 input(s), 2 output(s)
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Event
- Basic Event[PTZ channel] video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
- Smart Eventunattended baggage detection,object removal detection,people gathering detection,fast moving detection,loitering detection,parking detection
- Linkage[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Large Models
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
VCA range: [Bullet channel] up to 60m(nighttime)/100m(daytime), [PTZ channel] Wide: up to 70m(nighttime)/100m(daytime), Tele: up to 400m
*Result based on standard setup and test environment
- Scenario-Aware Object DetectionThis function is based on the large model technology combined with image classification detection. It can automatically detect and identify scene categories in the detection area, including road, intersection, toll station, petrol station, open-air square, vehicle entrance and exit, and person entrance and exit, etc. The PTZ camera will rotate 360° to capture and label the scenes.For automatically recognize the scene information of captured image.- Real-time detection mode: the PTZ camera completes the full-scene capture, detection, and recognition output within 10 minutes in 360°.- Scheduled detection mode: the scheduled time can be set, and pictures can be collected every day or week. The collected pictures will be stored in eMMC, and the detection results will be output at 2 AM by default.The detection results and labels can be uploaded as alarms, and the alarm should include the camera IP address, port No., channel No., capture time, upload time, picture, PTZ coordinates, label ID, label name, and OCR information, as well as the coordinates of each OCR.
- Deep Learning Function
- Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle
- Face Capture
Detects up to 30 faces simultaneously,
Uploads face with background and closed-up face pictures
- Face Comparison
Up to 10 face libraries. 30000 faces for each library. 150000 faces in total,
Recognizes face identity via face modeling, grading and comparing to those in face library
- Road Traffic and Vehicle Detection
Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- People DensitySupports detecting the level of people density in the configured area
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking 3.0
- Smart LinkageManual tracking, auto tracking, tracking takeover, linked tracking capture
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- General
- Power
36 VDC± 25%, max. 90 W (Max. 65 W, including max. 15 W for IR and max. 8 W for heater),
PoE 802.3bt, type4, class8, max. 90W (Max. 65W, including max. 15W for IR and max. 8 W for heater)
- General Functionmirror,password protection
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
- WiperYes
- DemistYes
- MaterialADC12
- DimensionØ260 mm × 382.9 mm (Ø10.24″ × 15.07″)
- WeightApprox. 7.8 kg (17.196 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCCE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
- Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
- EnvironmentCE-RoHS (2011/65/EU and its amendment (EU)2015/863)
- ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002)
- Anti-Corrosion ProtectionModel with -Y: NEMA 4X (NEMA 250-2018),Model without -Y: No
