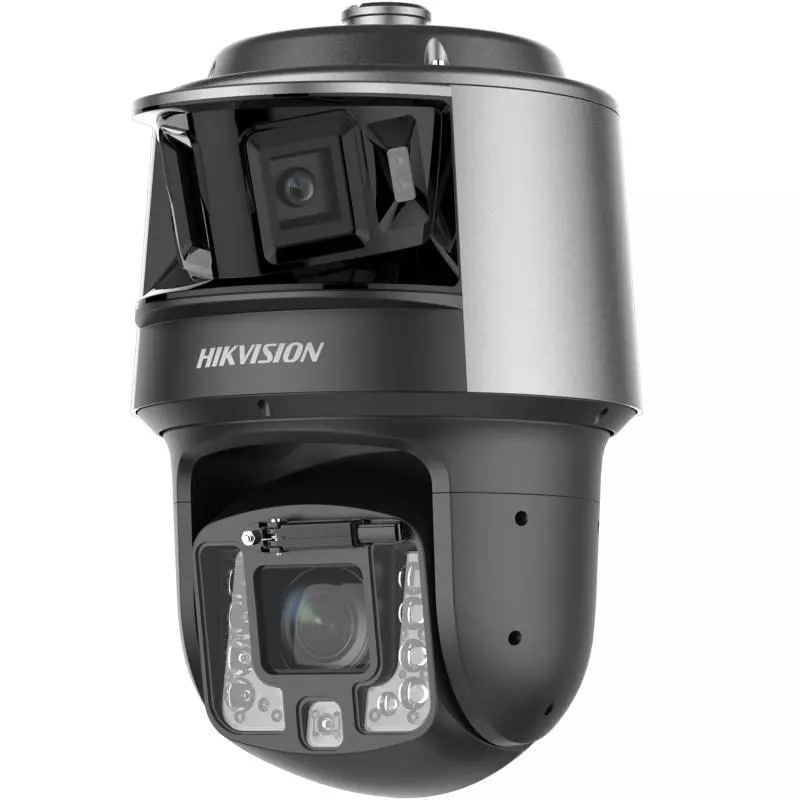

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16 MP 180° Panoramik və PTZ Kamera
16 MP 180° Panoramik və PTZ Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor[Bullet channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
- Min. Illumination
[Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with Light,
[PTZ channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 lux with IR
- Shutter Speed1/25 s to 1/30000 s
- Slow ShutterYes
- Day & Night[Bullet channel] Color, [PTZ channel] IR cut filter
- Max. Resolution[Bullet channel] 5344 × 2256, [PTZ channel] 2688 × 1520
- Lens
- FocusAuto,semi-auto,manual
- Zoom Speed[Bullet channel] No, [PTZ channel] approx. 4.8 s
- Focal Length[Bullet channel] 2.8 mm, [PTZ channel] 12 to 240 mm
- FOV[Bullet channel] horizontal field of view: 190° ± 5°, vertical field of view: 75° ± 5°, diagonal field of view: 195° ± 5°, [PTZ channel] horizontal field of view: 30.7° to 2.8°, vertical field of view: 17.6° to 1.6°, diagonal field of view: 69.18° to 2.35°
- Aperture[Bullet channel] F1.0, [PTZ channel] F1.0
- Illuminator
- Supplement Light Range[Bullet channel] White light: up to 30 m, [PTZ channel] white light: up to 30 m, IR: up to 250 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan) [PTZ channel] 0° to 360°
- Movement Range (Tilt)[Bullet channel] 12° to 24°, [PTZ channel] -20° to 90°
- Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
- Tilt Speed[Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional Pan[Bullet channel] No, [PTZ channel] Yes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
- Video
- Main Stream[Bullet channel] 50 Hz: 25 fps (5344 × 2256，4384 × 1856，3680 × 1656), 60 Hz: 24 fps (3840 × 1080),[PTZ channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440，1920 × 1080，1280 × 960，1280 × 720, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream[Bullet channel] 50 Hz: 25 fps (1336 × 564, 960 × 432), 60 Hz: 25 fps (1336 × 564, 960 × 432),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream[Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile,Main profile,High profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
- Audio Bit Rate16 to 64Kbps (AAC-LC),32 to 192 Kbps (MP2L2)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise FilteringYes
- Network
- APIISUP,ISAPI,SDK,Open Network Video Interface (Profile S, Profile G, Profile T)
- Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels: administrator, operator, and user
- SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
- ClientiVMS-4200,HikCentral Pro,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Day/Night SwitchDay,night,auto,schedule
- Image EnhancementHLC,3D DNR
- Wide Dynamic Range (WDR)[Bullet channel] No, [PTZ channel] 120 dB
- DefogOptical defog
- Image StabilizationEIS
- Regional ExposureYes
- Regional Focus[Bullet channel] No, [PTZ channel] Yes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Image Parameters SwitchYes
- Privacy Mask[Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- SNR≥ 52 dB
- Supplement Detection
- Satellite PositioningNo
- GyroscopeYes
- CompassNo
- Interface
- Ethernet Interface1 RJ45 1000M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Alarm7 input(s), 2 output(s)
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- ResetYes
- Event
- Basic Eventvideo tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,audio except detection
- Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection
- Linkage[Bullet channel] no,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart Tracking[PTZ channel] yes
- Smart Linkagetracking takeover, linked tracking capture, panorama linkage
- Deep Learning Function
- Multi-Target-Type Detection[Bullet channel] no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
- General
- General Functionmirror,password protection
- Power36 VDC ± 25%, max. 60 W
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
- Wiper Model with -W: Yes, Model without -W: No
- DemistYes
- MaterialADC12
- DimensionØ260 mm × 382.69 mm (Ø10.24″ × 15.07″)
- WeightApprox. 7.1 kg (15.65 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCCE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021)
- Safety CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014)
- EnvironmentCE-RoHS (2011/65/EU and its amendment (EU)2015/863)
- ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
- Anti-Corrosion ProtectionModel with -Y: NEMA 4X (NEMA 250-2018),Model without -Y: No
