Hikvision DS-2DP8A440IXG1-LEWF/416(F0)

Artikul: HC-DS-2DP8A440IXG1-LEWF/416(F0)

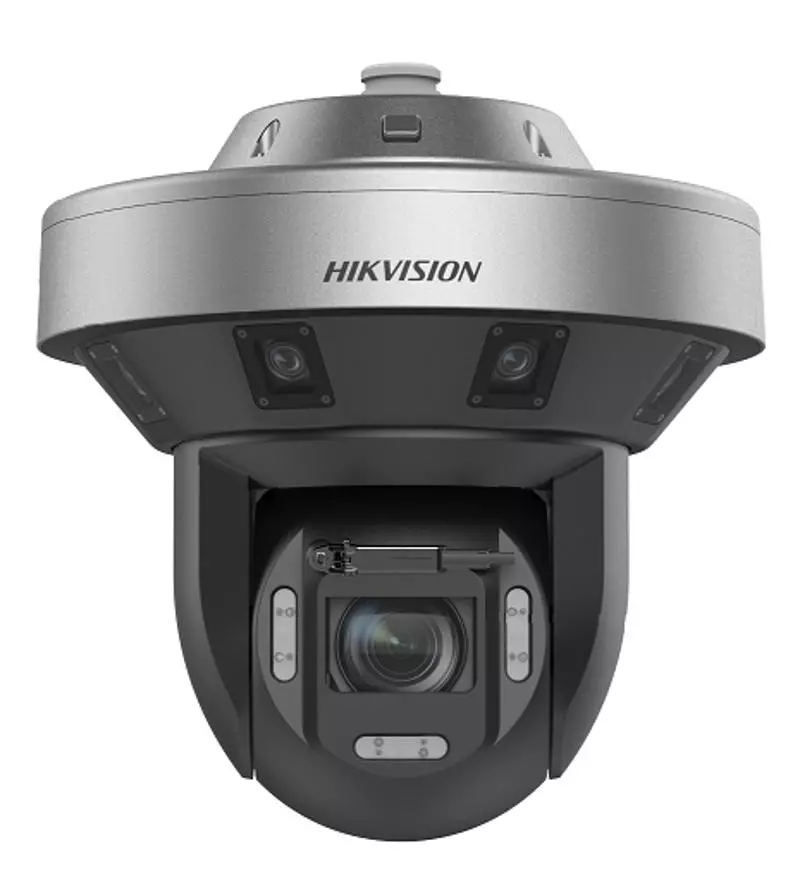

Hikvision DS-2DP8A440IXG1-LEWF/416(F0) — 16MP 180° Panoramic & PTZ kamera with wiper

Image Sensor: [Panoramic channel]: 1/1.8″ progressive scan CMOS, [PTZ channel]: 1/1.8″ progressive scan CMOS
Max. Resolution: 6072 × 2640
Min. Illumination: [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Shutter Speed: 1/30 s to 1/30000 s
Day & Night: IR cut filter
Zoom: [PTZ channel] 40x optical, 16x digital
Slow Shutter: Yes
Focal Length: [Panoramic channel] 2 mm, [PTZ channel] 6 to 240 mm

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Camera
Image Sensor[Panoramic channel]: 1/1.8″ progressive scan CMOS, [PTZ channel]: 1/1.8″ progressive scan CMOS
Max. Resolution6072 × 2640
Min. Illumination[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON);
[PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Shutter Speed1/30 s to 1/30000 s
Day & NightIR cut filter
Zoom[PTZ channel] 40x optical, 16x digital
Slow ShutterYes

Lens
Focal Length[Panoramic channel] 2 mm, [PTZ channel] 6 to 240 mm
FOV[Panoramic channel] Horizontal FOV 180°, vertical FOV 110°；[PTZ channel]Horizontal FOV 59.1° to 2°, vertical FOV 34.1° to 1.1°, diagonal FOV 67.1° to 2.3°
FocusAuto, semi-auto, manual, rapid focus
Aperture[Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.2
Zoom Speed[PTZ channel] Approx. 5.6 s

PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-15° to 90° (auto flip)
Pan Speed [Power adaptor]: Pan speed: configurable from 0.1° to 500°/s, preset speed: 500°/s [POE]: Pan speed: configurable from 0.1° to 210°/s, preset speed: 240°/s
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
Tilt Speed [Power adaptor]: Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s [POE]: Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Presets300
Preset FreezingYes
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D PositioningYes
PTZ Status DisplayYes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off MemoryYes

Video
Main Stream[Panoramic channel]：50Hz: 25fps (6072×2640,5520×2400, 4096×1800,3840×1680, 2784×1200) 60Hz: 24fps (6072×2640，5520×2400, 4096×1800，3840×1680, 2784×1200)
[PTZ channel]:50Hz:25fps (2688×1520，2560×1440,1920×1080,1280×960,1280×720) 60Hz:30fps （2688×1520，2560×1440,1920×1080,1280×960,1280×720)
Sub-Stream[Panoramic channel]：50Hz: 25fps (2048×896, 1280×560, 704×320 ) ； 60Hz: 30fps (2048×896, 1280×560, 704×320)
[PTZ channel]:50Hz: 25fps(704×576,640×480,352×288) 60Hz:30fps(704×480,640×480,352×240)
Third Stream[Panoramic channel] No,
[PTZ channel]
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 240)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Sampling RatePCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Network
ProtocolsSSL/TLS,NTP,HTTPS,SNMP,WebSocket,TCP/IP,QoS,PPPoE,IPv6,UDP,DNS,ICMP,802.1X,RTCP,DDNS,RTP,IPv4,RTSP,FTP,WebSockets,IGMP,SFTP,UPnP,DHCP,HTTP,SMTP
Simultaneous Live ViewUp to 20 channels
APIISAPI,EZVIZ,Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISUP,OTAP,SDK
User/HostUp to 32 users. 3 user levels: administrator, operator, and user
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Network StorageNAS (NFS, SMB/CIFS)
ClientHik-Connect,iVMS-4200
Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night SwitchDay, night, auto, scheduled-switch
Wide Dynamic Range (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
SNR≥ 55 dB
Defog[Panoramic channel]: no; [PTZ channel]: optical defog
Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
Image EnhancementBLC, HLC, 3D DNR
Privacy MaskProgrammable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
Regional FocusYes
Regional ExposureYes

Interface
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm7 alarm inputs, 2 alarm outputs
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ResetYes
Fiber Optical1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Event
Smart Eventloitering detection,audio exception detection,intrusion detection,fast moving detection,Line crossing detection,region entrance detection,unattended baggage detection,parking detection,object removal detection,region exiting detection,people gathering detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart TrackingManual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes

Deep Learning Function
People Density[Panoramic channel]: yes ,[PTZ channel]: no
Multi-Target-Type Detection[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
Congestion AlarmYes

General
Power36 VDC ± 20%, max. 120 W,including max. 12 W for IR,PoE(802.3bt) 42.5-57V| 2.12A
DimensionØ427.6 mm × 425.9 mm (Ø16.8″ × 16.7″)
14.6kg
MaterialADC12
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
WiperYes
DemistYes

Approval
SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
