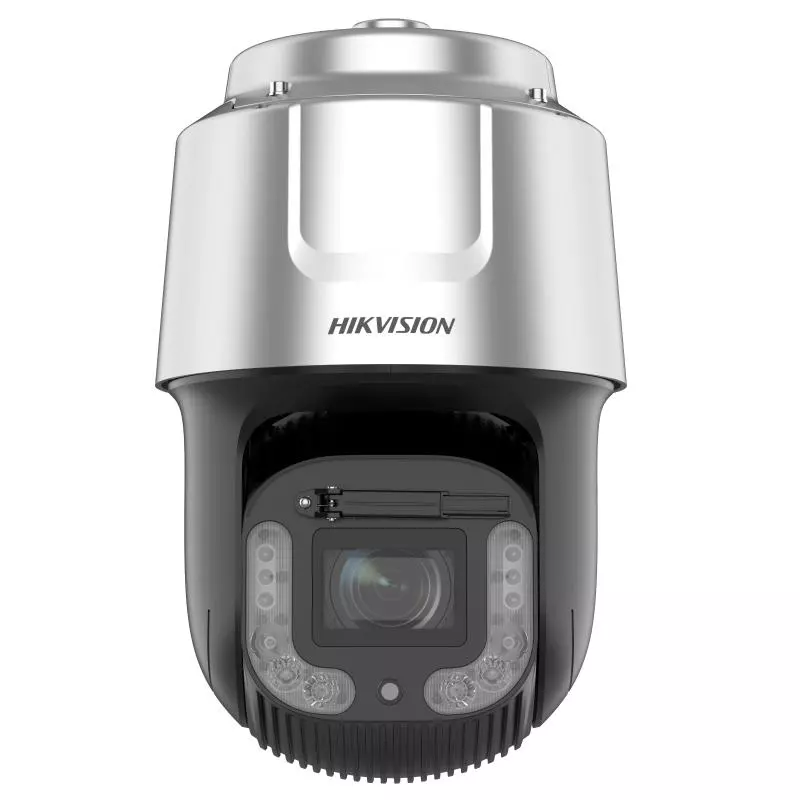

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16 MP 180° Panoramik və PTZ Kamera
16 MP 180° Panoramik və PTZ Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/1.2″ progressive scan CMOS
- Min. IlluminationColor: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with light
- Shutter Speed1/1 s to 1/30,000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom48x optical, 16x digital
- Max. Resolution2688 × 1520
- Lens
- FocusAuto, semi-auto, manual, rapid focus
- Focal Length6.0 mm to 288 mm, 48× Optical
- Zoom SpeedApprox. 1 s (optical, wide-tele)
- FOV
Horizontal field of view: 61.1° to 2.1° (wide-tele),
Vertical field of view: 35.9° to 1.2° (wide-tele),
Diagonal field of view: 68.5° to 2.4° (wide-tele)
- ApertureMax. F1.6
- Illuminator
- Supplement Light TypeLaser
- Supplement Light RangeLaser Distance: up to 500 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°，Smart Pan-Tilt Correction
- Movement Range (Tilt)-20° to 90° (auto flip)，Smart Pan-Tilt Correction
- Pan SpeedPan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Main Stream
50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Target CroppingNo
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
- Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz
- Environment Noise FilteringYes
- Network
- Smooth StreamingYes
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- Network StorageNAS (NFS, SMB/ CIFS), ANR
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP
- APIISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- ClientiVMS-4200,Hik-Connect
- Web BrowserChrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, night, auto, scheduled-switch
- Image EnhancementBLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)150 dB
- DefogOptical defog
- Image StabilizationYes. OIS.
- Regional ExposureYes
- Regional FocusYes
- Privacy MaskUp to 24 masks, polygon region, mosaic mask, mask color configurable
- SNR≥ 52 dB
- Supplement Detection
- GyroscopeYes
- Satellite PositioningNo
- CompassNo
- Interface
- ResetYes
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection
- Smart Eventloitering detection,people gathering detection,fast moving detection,parking detection,unattended baggage detection,object removal detection
- LinkageUpload to FTP/NAS/memory card,trigger alarm output,send email,notify surveillance center,trigger recording
- Large Models
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Perimeter Protection
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
(Wide) VCA range: up to 70 m(nighttime)/100 m(daytime)
(Tele) VCA range: up to 400 m
Result based on standard setup and test environment
- Scenario-Aware Object DetectionThis function is based on the large model technology combined with image classification detection. It can automatically detect and identify scene categories in the detection area, including road, intersection, toll station, petrol station, open-air square, vehicle entrance and exit, and person entrance and exit, etc. The PTZ camera will rotate 360° to capture and label the scenes.For automatically recognize the scene information of captured image.- Real-time detection mode: the PTZ camera completes the full-scene capture, detection, and recognition output within 10 minutes in 360°.- Scheduled detection mode: the scheduled time can be set, and pictures can be collected every day or week. The collected pictures will be stored in eMMC, and the detection results will be output at 2 AM by default.The detection results and labels can be uploaded as alarms, and the alarm should include the camera IP address, port No., channel No., capture time, upload time, picture, PTZ coordinates, label ID, label name, and OCR information, as well as the coordinates of each OCR.
- Deep Learning Function
- Multi-Target-Type Detection
Supports simultaneous detection and capture of human body, face and vehicle,
Gets 7 face features, 13 human body features and 3 vehicle features,Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle
- Face Comparison
Up to 10 face libraries. 30000 faces for each library. 80000 faces in total,
Recognizes face identity via face modeling, grading and comparing to those in face library,
Supports face library encryption
- Road Traffic and Vehicle Detection
Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking 3.0
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- General
- Vandal-proof AlarmNo
- HeaterYes
- WiperYes. Rain-sensing auto control
- De-icingNo
- DemistYes
- General FunctionMirror, password protection, watermark, IP address filter
- Power
36 VDC± 25%, max. 60 W (Max. 50 W, including max. 12 W for light and max. 8 W for heater)
PoE 802.3bt, type3, class6, max. 60W (Max. 50 W, including max. 12 W for light and max. 8 W for heater)
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- DimensionØ 267.4 mm × 431.1 mm (Ø 10.53″ × 16.97″)
- WeightApprox. 9.6 kg (21.16 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
- Safety
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- Anti-Corrosion ProtectionNo
- ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
