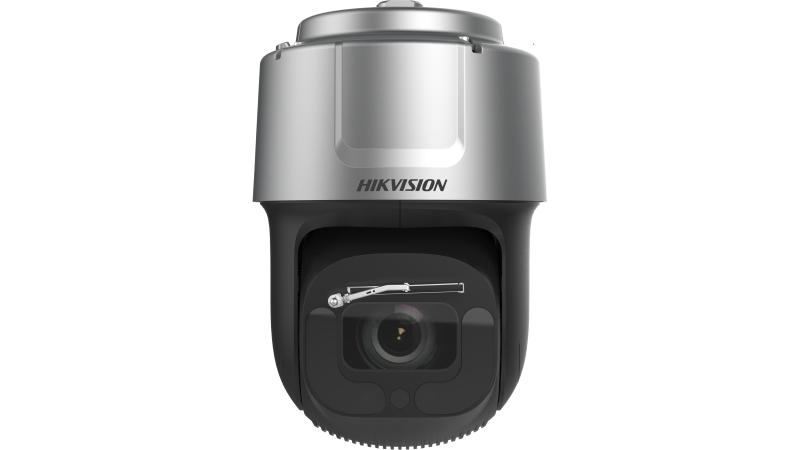

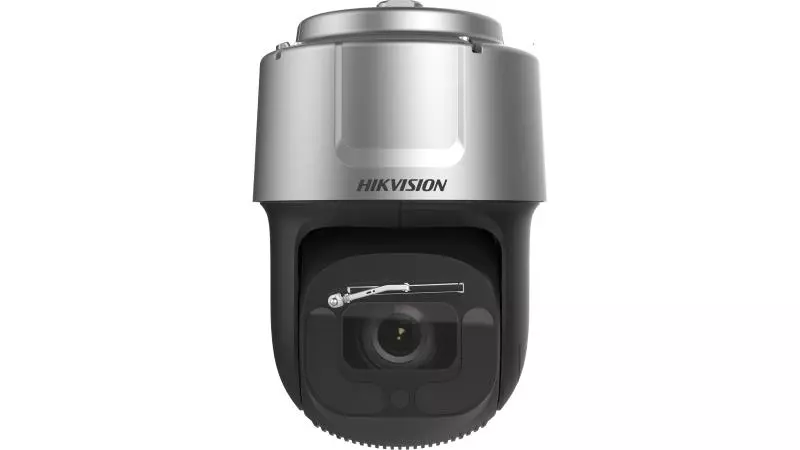

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16 MP 180° Panoramik və PTZ Kamera
16 MP 180° Panoramik və PTZ Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/1.8＂ progressive scan CMOS
- Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1/1s~ 1/30,000s
- Slow Shutteryes
- Focusauto;manual;semi-auto
- Day & NightICR
- Day/Night Switchday;night;auto;scheduled-switch
- BLCyes
- WDR140 dB WDR
- HLCyes
- 3D DNRyes
- Defogyes
- EISYes. Built-in gyroscope to improve EIS performance.
- Regional Exposureyes
- Regional Focusyes
- Image Settingssaturation;brightness;contrast;sharpness
- White Balanceauto;MWB;ATW;indoor;outdoor;fluorescent lamp;sodium lamp
- Digital Zoom16x
- Optical Zoom42x
- Privacy Maskup to 24 masks;mask color configurable;polygon region ;mosaic mask
- DORIDetect(25px/m)：2979.3m
Observe(63px/m)：1182.3m
Recognize(125px/m)：595.9m
Identify(250px/m)：297.9m - SNR≥55dB
- General Functionmirror;password protection;video tampering alarm;watermark;IP address filter
- Optical Defogyes
- Lens
- Focal Length6.0 mm to 252 mm, 42 × Optical
- Zoom Speedapprox. 4.9 s
- FOVHorizontal field of view: 56.6° to 1.7° (wide-tele),
Vertical field of view: 33.7° to 0.9° (wide-tele),
Diagonal field of view: 63.4° to 1.9° (wide-tele) - ApertureF1.2
- Illuminator
- IR Distance500 m
- Smart IRyes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt) -20° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Tilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Proportional Zoomyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off Memoryyes
- Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
- Video
- Max. Resolution2560 × 1440
- Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
50 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) - Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) - Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) - Video CompressionH.265;H.264;MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typebaseline profile;main profile;high profile
- H.265 Typemain profile
- H.264+yes
- H.265+yes
- SVCyes
- ROIdynamic face tracking;fixed region;dynamic license plate tracking
- Audio
- Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
- Audio Bit rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
- Smart Features
- Face CaptureSupport detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- Face Comparisonyes
- Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- Basic Eventmotion detection;video tampering alarm;exception;alarm input and output
- Smart Eventvandal-proof alarm;Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;unattended baggage detection;object removal detection
- Smart Trackingmanual tracking;event tracking;support patrol tracking among multiple detection scenes;auto-tracking
- Smart RecordANR;Dual-VCA
- Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording
- Network
- Network StorageNAS (NFS, SMB/ CIFS)
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- APIOpen-ended API, ONVIF (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- Smooth Streamingyes
- Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Interface
- Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
- Alarm Input7 alarm inputs
- Alarm Output2 alarm outputs
- Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
- Video Output1.0V[p-p]/75Ω;PAL;NTSC;BNC connector
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- General
- Power24 VAC (Max. 60 W, including max. 15 W for IR and max. 8 W for heater), PoE 802.3 bt (Max. 51 W, including max. 15 W for IR and max. 8 W for heater)
- Operating ConditionsTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
- WiperYes. Rain-sensing auto control
- MaterialADC12
- DimensionsΦ 267 mm × 430 mm (Φ 10.51″ × 16.93″)
- Approx. 9.6 kg (21.16 lb.)
- Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Approval
- ProtectionLightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5;IP67 Standard
