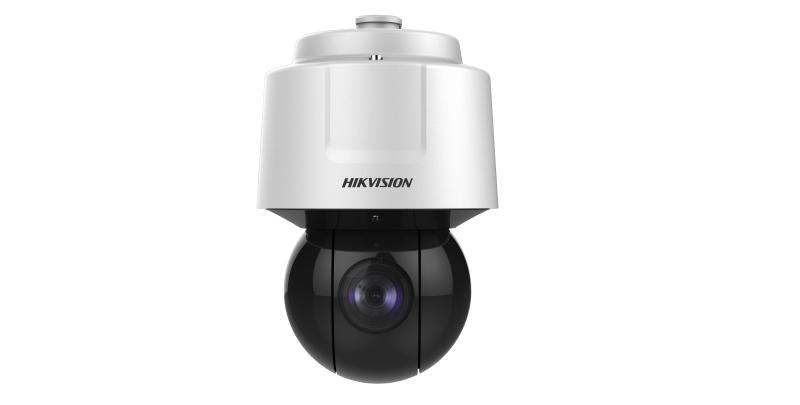

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16 MP 180° Panoramik və PTZ Kamera
16 MP 180° Panoramik və PTZ Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor
1/1.8＂ progressive scan CMOS
- Max. Resolution
2560 × 1440
- Min. Illumination
color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @(F1.2，AGC ON), 0 Lux with IR
- Shutter Speed
1/1 s to 1/30,000 s
- Day & Night
ICR
- Zoom
16x digital
- Slow Shutter
yes
- HLC
yes
- 3D DNR
yes
- Optical Zoom
36x
- DORI
Detect (25 px/m): 2965.5 m
Observe (63 px/m): 1176.8 m
Recognize (125 px/m): 604.1 m
Identify (250 px/m): 302.1 m
- Lens
- Focal Length
6.0 mm to 216 mm, 36× Optical
- FOV
Horizontal field of view: 56.6° to 1.7° (wide-tele),
Vertical field of view: 33.7° to 0.9° (wide-tele),
Diagonal field of view: 63.4° to 1.9° (wide-tele) - Focus
Auto,semi-auto,manual,rapid focus
- Aperture
F1.2
- Zoom Speed
approx. 4.5 s
- PTZ
- Movement Range (Pan)
360°
- Movement Range (Tilt)
-20° to 90° (auto flip)
- Pan Speed
pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
- Tilt Speed
tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
- Proportional Pan
yes
- Presets
300
- Preset Freezing
yes
- Patrol Scan
8 patrols, up to 32 presets for each patrol
- Pattern Scan
4 pattern scans, record time over 10 minutes for each scan
- Park Action
preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
- 3D Positioning
yes
- PTZ Status Display
yes
- Scheduled Task
preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
- Power-off Memory
yes
- Video
- Main Stream
50 Hz: 25 fps (2560×1440, 1920×1080, 1280×960, 1280×720)
60 Hz: 30 fps (2560×1440, 1920×1080, 1280×960, 1280×720) - Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) - Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) - Video Compression
H.265||H.264||MJPEG
- Video Bit Rate
32 Kbps to 16384 Kbps
- H.264 Type
baseline profile||main profile||high profile
- H.265 Type
main profile
- Scalable Video Coding (SVC)
yes
- Region of Interest (ROI)
fixed region
- Audio
- Audio Compression
G.711alaw||G.711ulaw||G.722.1||G.726||MP2L2||PCM
- Audio Bit Rate
64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)
- Network
- Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- Simultaneous Live View
Up to 20 channels
- API
Open-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Ehome||ISUP||ONVIF (Profile S, Profile G, Profile T)
- Smooth Streaming
yes
- User/Host
Up to 32 users. 3 levels: Administrator, Operator and User
- Security
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Network Storage
NAS (NFS, SMB/ CIFS)||ANR
- Client
iVMS-4200||Hik-Connect||Hikcentral
- Web Browser
IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Image
- Day/Night Switch
day, night, auto, scheduled-switch
- Wide Dynamic Range (WDR)
140 dB WDR
- SNR
≥52dB
- Defog
yes
- Image Stabilization
EIS (Built-in gyroscope to improve EIS performance)
- Image Enhancement
BLC, HLC, 3D DNR
- Privacy Mask
up to 24 masks||polygon region ||mosaic mask ||mask color configurable
- Regional Focus
yes
- Regional Exposure
yes
- Interface
- Video Output
1.0V[p-p]/75Ω||PAL||NTSC||BNC connector
- Ethernet Interface
RJ45, self-adaptive 10M/100M Ethernet port
- On-board Storage
Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω - Alarm
7 alarm inputs, 2 alarm outputs
- RS-485
HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic Event
motion detection||video tampering alarm||alarm input and output||exception
- Smart Event
intrusion detection||line crossing detection||region entrance detection||region exiting detection||parking detection||unattended baggage detection||object removal detection||vandal-proof alarm||audio exception detection
- Linkage
Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Smart Tracking
manual tracking||event tracking||auto-tracking
- Deep Learning Function
- Face Capture
Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face.
- Road Traffic
Support vehicle detection (license plate number,vehicle model, and vehicle color recognition)
- General
- Power
24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater)
- Dimension
⌀ 231.1 mm × 355.6 mm (⌀ 9.10″ × 14″)
-
Approx. 6 kg (13.23 lb.)
- Operating Condition
Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
- General Function
mirror, password protection, watermark, IP address filter
- Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015) - Safety
UL (UL 62368-1)
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1) - Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006) - Protection
Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5||IP67 Standard||IK10
- Anti-Corrosion Protection
NEMA 4X
