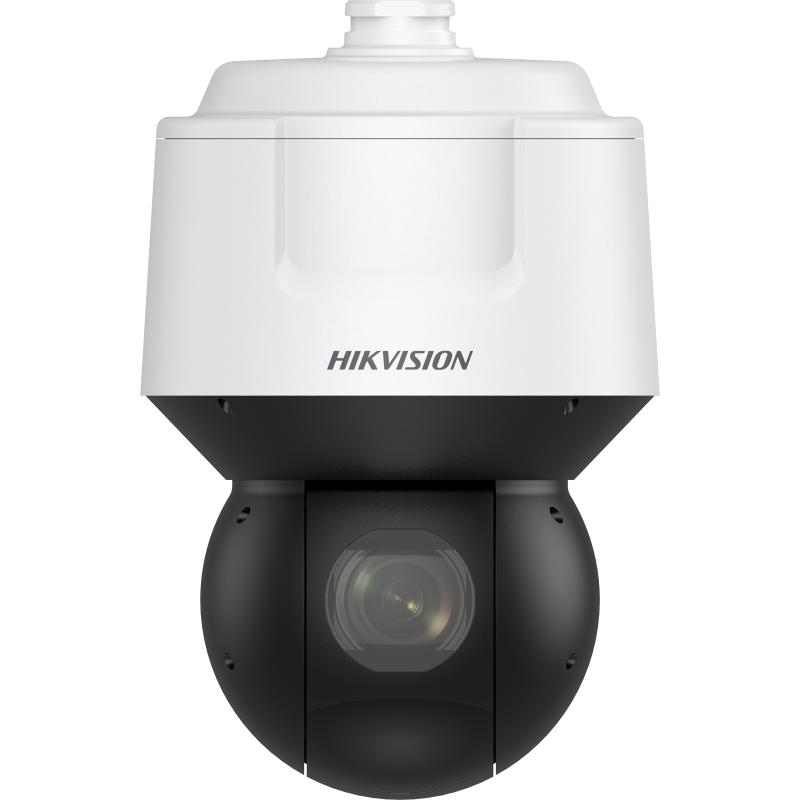

Hikvision DS-2DP8A440IXG-LEF/416(F0)(B)
16 MP 180° Panoramik və PTZ Kamera
16 MP 180° Panoramik və PTZ Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Min. Illumination[Panoramic channel] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)
- Shutter Speed1/1 s to 1/30,000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom[PTZ channel] 25 × optical, 16 × digital
- Max. Resolution2688 × 1520
- Lens
- FocusAuto, semi-auto, manual, rapid focus
- Focal Length5 to 125 mm
- Zoom SpeedApprox. 4.5 s
- FOVHorizontal field of view: 57.7° to 2.9°, vertical field of view: 33.2° to 1.6°, diagonal field of view: 65.2° to 3.3°
- ApertureMax. F1.6
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeIR distance: up to 250 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-20° to 90°,auto flip
- Pan SpeedPan speed: configurable from 0.1° to 300°/s, preset speed: 400°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 200°/s, preset speed 300°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Main Stream
50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),
60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Target CroppingNo
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
- Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16KHz, 32KHz, 48KHz
- Environment Noise FilteringYes
- Network
- Smooth StreamingYes
- Network StorageNAS (NFS, SMB/ CIFS), ANR
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- APIISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- ClientHikCentral, iVMS-4200, Hik-Connect
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Wireless (Mobile Communication)
- SIMNo
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR)120 dB
- Day/Night SwitchDay, night, auto, scheduled-switch
- Image EnhancementBLC, HLC, 3D DNR
- DefogDigital defog
- Image StabilizationYes. Built-in gyroscope to improve EIS performance.
- Regional ExposureYes
- Regional FocusYes
- Privacy MaskUp to 24 masks, polygon region, mosaic mask, mask color configurable
- SNR≥ 52 dB
- Supplement Detection
- GyroscopeYes
- Satellite PositioningNo
- CompassNo
- Interface
- ResetYes
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Video OutputNo
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Perimeter ProtectionLine crossing detection, region entrance detection, intrusion detection, region exiting detection
- Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking
- General
- Vandal-proof AlarmNo
- HeaterYes
- WiperNo
- De-icingNo
- DemistYes
- General FunctionMirror, password protection, watermark, IP address filter
- Power36 VDC± 25%, max. 60 W (Max. 45 W, including max. 7 W for IR and max. 8 W for heater)PoE 802.3bt, type3, class5, max. 45W (Max. 45 W, including max. 7 W for IR and max. 8 W for heater)
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing)
- DimensionØ 218.4 mm × 324.2 mm (Ø 8.6″ × 12.76″)
- Approx. 5.1 kg (11.24 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC VoC (ICES-003: Issue 6, 2019),KC (KN 32: 2015, KN 35: 2015)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013),IK10 (IEC 62262:2002)
