Hikvision DS-2DF6225X-AEL

Artikul: HC-DS-2DF6225X-AEL

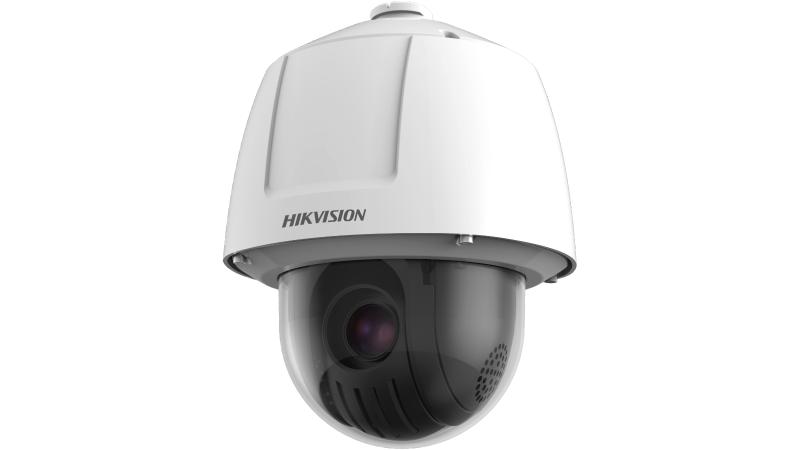

Hikvision DS-2DF6225X-AEL — 6-inch 2 MP 25X DarkFighter IP Speed Dome kamera kamera

FOV: Horizontal field of view: 59.8° to 2.8° (wide-tele),Vertical field of view: 33.6° to 1.6° (wide-tele),Diagonal field of view: 68.6° to 3.2° (wide-tele)
Zoom Speed: Approx. 3.7 s (optical lens, wide-tele)
Working Distance: 10 mm to 1500 mm (wide-tele)
Aperture Range: F1.5 to F3.4
Focal Length: 5.7 mm to 142.5 mm, 25× optical zoom
Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution: 1920 × 1080
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Lens
FOVHorizontal field of view: 59.8° to 2.8° (wide-tele),Vertical field of view: 33.6° to 1.6° (wide-tele),Diagonal field of view: 68.6° to 3.2° (wide-tele)
Zoom SpeedApprox. 3.7 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.5 to F3.4
Focal Length5.7 mm to 142.5 mm, 25× optical zoom

Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution1920 × 1080
Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),

Camera Module
Image Sensor1/1.9″ progressive scan CMOS
Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Shutter Time1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom16×
Privacy Mask24 programmable polygon privacy masks
Focus ModeAuto/Semi-automatic/Manual
WDR120 dB
Rapid FocusYes

PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
Movement Range (Tilt)From -15° to 90°
Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
Proportional ZoomYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemoryYes
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
