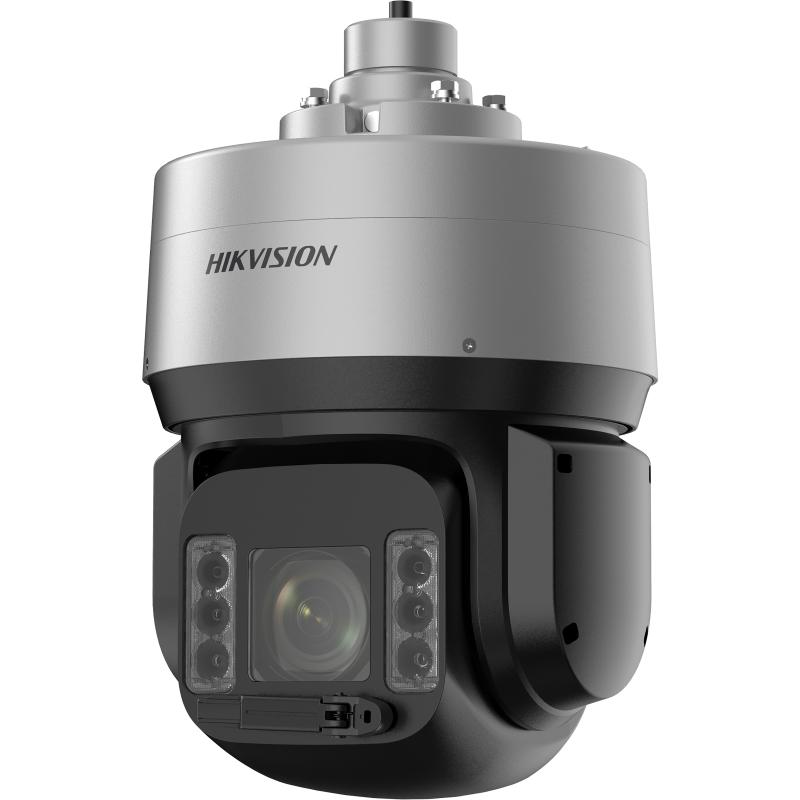

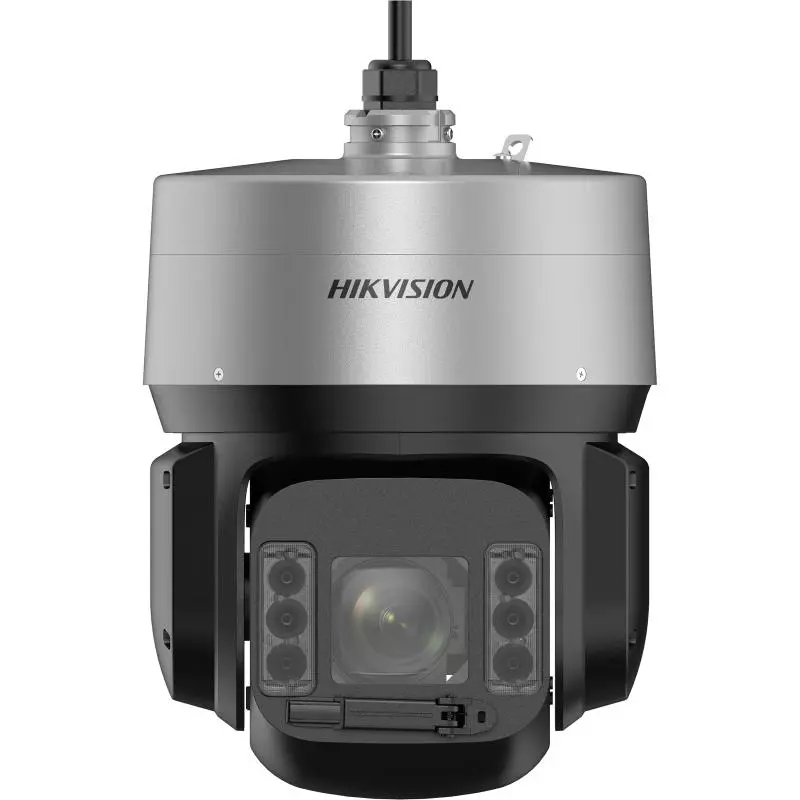

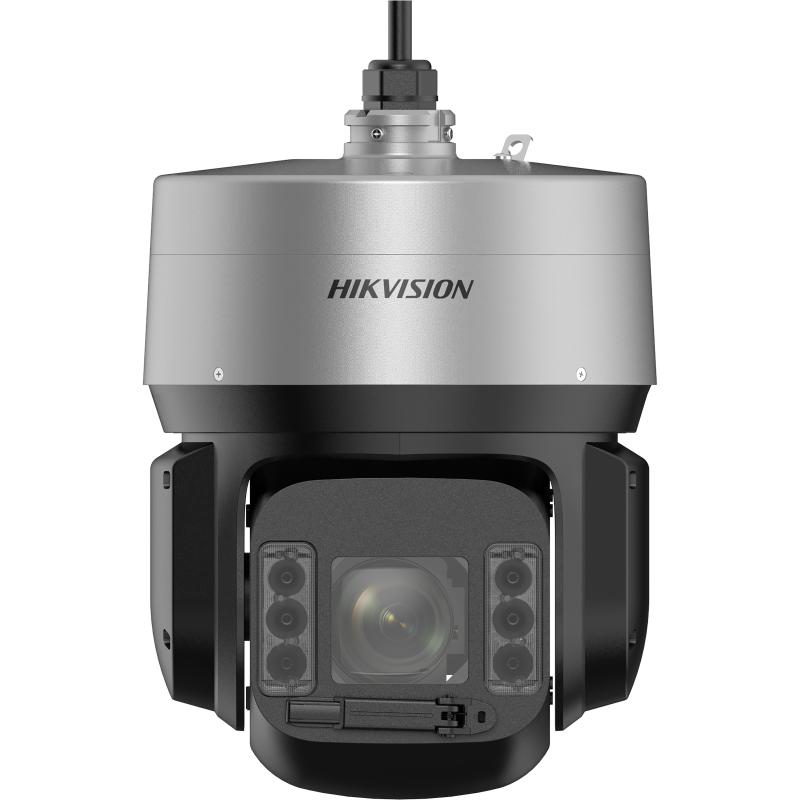

5 düymlük 2 meqapikselli DarkFighter 25X IR Yerləşdirmə Sistemi
5 düymlük 2 meqapikselli DarkFighter 25X IR Yerləşdirmə Sistemi
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/1.8＂ progressive scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0005 Lux @ (F1.5, AGC ON),B/W: 0.0001 Lux @ (F1.5, AGC ON),0 Lux with IR
- Shutter Speed1/30 s to 1/30,000 s
- Day & NightICR
- Zoom25 × optical,16 × digital
- Slow Shutteryes
- Lens
- Focal Length5.9mm to 147.5 mm
- FOVHorizontal field of view: 58.8° to 3.1°, vertical field of view: 34.4° to 1.7°, diagonal field of view: 66.0° to 3.5°
- FocusAuto,semi-auto,manual,rapid focus
- ApertureF1.5
- Zoom SpeedApprox. 4.8 s
- Illuminator
- Supplement Light RangeIR distance: up to 200 m,White light distance: up to 50 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-20° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 210°/s, preset speed: 210°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 150°/s
- Proportional Panyes
- Presets300
- Preset Freezingyes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Park ActionPreset,patrol scan
- 3D Positioningyes
- PTZ Status Displayyes
- Scheduled TaskPreset,patrol scan,dome reboot,dome adjust,aux output
- Power-off Memoryyes
- Video
- Main Stream
50 Hz: up to 75 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: up to 90 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only.
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 Typebaseline profile||main profile||high profile
- H.265 Typemain profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)fixed region
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC-LC)
- Network
- ProtocolsTCP/IP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,SNMP,QoS,IPv4/IPv6,UDP,ISUP,SSL/TLS,WebSocket,WebSockets,ARP,SRTP,ICMP,IGMP
- Simultaneous Live ViewUp to 20 channels
- API ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- SecurityPassword protection,complicated password,HTTPS encryption,watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- Network StorageNAS (NFS, SMB/CIFS)
- ClientiVMS-4200,Hik-Connect,HikCentral Pro
- Web BrowserChrome 57.0+, Firefox 52.0+, Safari 11+
- AI Open Platform
- Model Specification
Up to 4 models,
Model type: detection model, classification model, mixed model (detection model and classification model)
- Wireless (Mobile Communication)
- Mobile Communication Type4G
- Frequency824 MHz~960 MHz，1710 MHz~2170 MHz，2300 MHz~2400 MHz，2500 MHz~2690 MHz
- SIMnano SIM
- Image
- Day/Night Switchday, night, auto, scheduled-switch
- SNR≥52dB
- DefogOptical defog
- Wide Dynamic Range (WDR)150 dB
- Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional Focusyes
- Regional Exposureyes
- Interface
- Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
- Alarm7 alarm inputs, 2 alarm outputs
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 TB .
- Event
- Basic EventMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,smart tracking,audible warning
- Deep Learning Function
- Perimeter ProtectionLine crossing detection, region entrance detection, intrusion detection, region exiting detection
- Linkage and Tracking
- Smart TrackingManual tracking, auto-tracking 3.0
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- General
- Power
36 VDC± 25%, max. 60 W (Max. 36 W, including max. 6.4 W for IR and max. 8 W for heater)
PoE 802.3bt, type4, class7, max. 60W (Max. 36 W, including max. 6.4 W for IR and max. 8 W for heater)
- DimensionØ214.9 mm × 288.3 mm (Ø8.5″ × 11.3″)
- Approx. 6.1 kg (13.45 lb.)
- Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95%
- General Functionmirror, password protection, watermark, IP address filter
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- HeaterYes
- WiperYes
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
- SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
- Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
