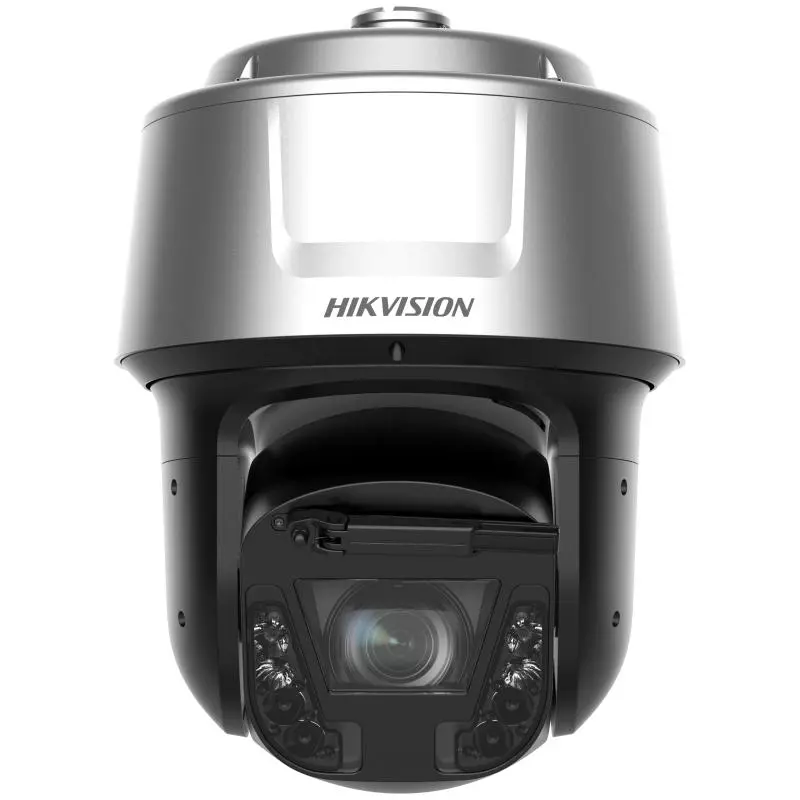

5 düymlük 2 meqapikselli DarkFighter 25X IR Yerləşdirmə Sistemi
5 düymlük 2 meqapikselli DarkFighter 25X IR Yerləşdirmə Sistemi
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/1.8″ progressive scan CMOS
- Min. IlluminationColor: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed1/1 s to 1/30,000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom42x optical, 16x digital
- Max. Resolution2688 × 1520
- Lens
- FocusAuto/manual/semi – auto
- Focal Length6.0 mm to 252 mm, 42× Optical
- Zoom SpeedApprox. 4.5 s (optical, wide-tele)
- FOVHorizontal field of view: 59.1° to 2.0°(wide-tele),
vertical field of view: 34.1° to 1.1°(wide-tele),
diagonal field of view: 67.1° to 2.3°(wide-tele) - ApertureMax. F1.2
- Illuminator
- Supplement Light TypeHybrid(IR + White Light)
- Supplement Light RangeIR Distance: up to 350 m, White Light Distance: up to 80 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°, Smart Pan-Tilt Correction
- Movement Range (Tilt)-20° to 90° (auto flip)，Smart Pan-Tilt Correction
- Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- DORI
- O2DCPVSWide: Overview: 103.4 m, Outline: 51.7 m, Discern: 25.9 m, Perceive: 16.6 m, Characterize: 8.3 m, Validate: 4.1 m, Scrutinize: 1.4 m
Tele: Overview: 4344.8 m, Outline: 2172.4 m, Discern: 1086.2 m, Perceive: 695.2 m, Characterize: 347.6 m, Validate: 173.8 m, Scrutinize: 57.9 m
The OODPCVS values are calculated using pixel densities for different use cases as recommended by the IEC/EN 62676-4: 2025 standard. IEC 62676-4:2025 describes the planning, design, installation, testing, commissioning, and maintaining of video surveillance systems (VSS) comprising image capture device(s), interconnection(s) and image handling device(s), for use in security applications within private or public spaces.
- Video
- Main Stream50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)
*High frame rate is supported under monitoring mode only. - Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) - Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG - Video Bit Rate32 Kbps~16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Target CroppingNo
- Audio
- Audio CompressionG.711/MP3/MP2L2/G.722.1/G.726/AAC-LC/PCM
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/8~320 Kbps(MP3)/32~192 Kbps(MP2L2)/16 Kbps(G.722.1)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise FilteringYes
- Network
- Smooth StreamingYes
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- Network StorageNAS (NFS, SMB/ CIFS), ANR
- ProtocolsQoS,IPv4,SFTP,RTSP,RTCP,DHCP,SMTP,802.1X,IPv6,PPPoE,UPnP,RTP,SNMP,WebSocket,HTTP,DDNS,FTP,WebSockets,NTP,ICMP,SSL/TLS,UDP,HTTPS,DNS,IGMP,TCP/IP
- APIISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- ClientHikCentral, iVMS-4200, Hik-Connect
- Web BrowserPlug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchSchedule,Night,Day,Auto
- Image EnhancementBLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)150 dB WDR
- DefogOptical defog
- Image StabilizationYes. Built-in gyroscope to improve EIS performance.
- Regional ExposureYes
- Regional FocusYes
- Privacy Mask24 programmable polygon privacy masks,mask color or mosaic configurable
- SNR≥ 52 dB
- Supplement Detection
- GyroscopeYes
- Satellite PositioningNo
- CompassNo
- Interface
- ResetYes
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Video Output1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic Eventalarm input and output,Motion detection,exception(HDD full,HDD error,network disconnected,IP address conflict,illegal login,abnormal restart), video tampering alarm
- Linkageaudible warning,trigger alarm output,trigger recording,notify surveillance center,send email,Upload to FTP/NAS/memory card
- Deep Learning Function
- Intelligent Transportation SystemTraffic Violation Evidence Collection: illegal parking, reverse driving, over lane line detection, continuous lane change, motor vehicle on non-motor vehicle lane, U-turn, slalom driving, illegal lane change, and queue jumping.
Traffic Data Collection: Traffic Flow.
Road incident detection: (1) Road incident detection for highways and elevated roads: fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection; (2) Road incident detection for urban roads: congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection
Supports general highway incident detection：supports pothole detection, crack detection, and alligator cracking detection
- General
- Vandal-proof AlarmNo
- HeaterYes
- WiperYes
- De-icingNo
- DemistYes
- General Functionpassword reset via email,third stream,mirror,IP address filter,Anti-flicker, heartbeat, flash log, pixel counter, password protection, one-key reset, watermark
- Power36 VDC± 25%, max. 60 W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater)
PoE 802.3bt, type3, class6, max. 60W (Max. 50 W, including max. 10 W for IR and max. 8 W for heater) - Operating ConditionTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- DimensionØ 260 mm × 336.7 mm (Ø 10.24″ × 13.26″)
- Approx. 6.8 kg (14.99 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015); - SafetyCB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017) - EnvironmentCE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006) - Anti-Corrosion ProtectionNEMA 4X
- ProtectionIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
