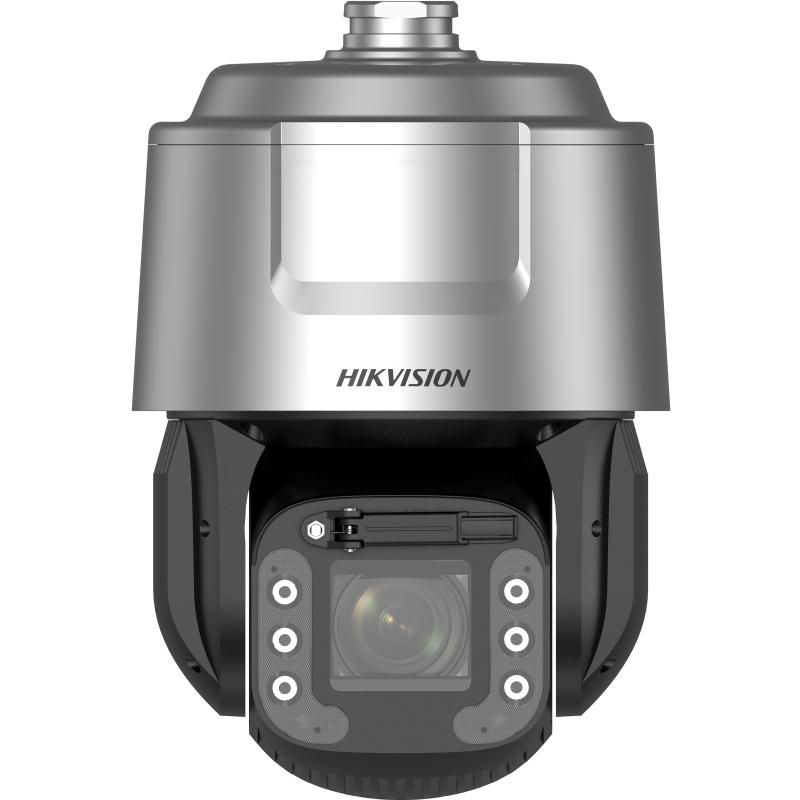

5 düymlük 2 meqapikselli DarkFighter 25X IR Yerləşdirmə Sistemi
5 düymlük 2 meqapikselli DarkFighter 25X IR Yerləşdirmə Sistemi
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/1.8″ progressive scan CMOS
- Min. IlluminationColor: 0.0005 Lux @ (F1.5, AGC ON),B/W: 0.0001 Lux @ (F1.5, AGC ON),0 Lux with light
- Shutter Speed1/30 s to 1/30000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom32x optical, 16x digital
- Max. Resolution2688 × 1520
- Lens
- FocusAuto,semi-auto,manual
- Focal Length6.0 mm to 192 mm
- Zoom SpeedApprox. 5 s
- FOVHorizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
- ApertureMax. F1.5
- Illuminator
- Supplement Light TypeHybrid
- Supplement Light RangeIR Distance: up to 200 m, White Light Distance: up to 30 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90°,auto flip
- Pan SpeedPan speed: configurable from 0.1° to 130°/s; preset speed: 130°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-off MemoryYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Main Stream
50 Hz: 25fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Target CroppingNo
- Audio
- Audio CompressionG.711,MP3,MP2L2,G.722.1,G.726,PCM,AAC-LC
- Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
- Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16KHz, 32KHz, 48KHz
- Environment Noise FilteringYes
- Network
- ProtocolsSSL/TLS,ISUP,WebSocket,WebSockets,ARP,SRTP,IPv4,IPv6,TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP
- Smooth StreamingYes
- Network StorageNAS (NFS, SMB/ CIFS), ANR
- APIISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 levels: Administrator, Operator and User
- SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- ClientHikCentral, iVMS-4200, Hik-Connect
- Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- Wireless (Mobile Communication)
- Mobile Communication Type4G
- Frequency
EU:
TDD-LTE: Band38/40/41,
FDD-LTE: Band 1/3/5/7/8/20/28,WCDMA/HSPA+:Band1/5/8
LA:
TDD-LTE: Band38/40,
FDD-LTE: Band 1/2/3/4/5/7/8/12/17/28/66,WCDMA/HSPA+:Band1/2/3/4/5/8
- StandardTDD-LTE/FDD-LTE/WCDMA/HSPA+
- SIMNo
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR)150 dB
- Day/Night Switchschedule,auto,night,Day
- Image EnhancementBLC, HLC, 3D DNR
- DefogDigital defog
- Image StabilizationYes. Built-in gyroscope to improve EIS performance.
- Regional ExposureYes
- Regional FocusYes
- Privacy MaskUp to 24 masks, polygon region, mosaic mask, mask color configurable
- SNR≥ 52 dB
- Supplement Detection
- GyroscopeYes
- Satellite PositioningNo
- CompassNo
- Interface
- ResetYes
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB
- Alarm7 inputs, 2 outputs
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Video OutputNo
- RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Event
- Basic Eventalarm input and output,Motion detection,exception(HDD full,HDD error,network disconnected,IP address conflict,illegal login,abnormal restart), video tampering alarm
- Linkageaudible warning,trigger alarm output,trigger recording,notify surveillance center,send email,Upload to FTP/NAS/memory card
- Deep Learning Function
- Intelligent Transportation System
Traffic Violation Evidence Collection: illegal parking, reverse driving, over lane line detection, continuous lane change, motor vehicle on non-motor vehicle lane, U-turn, slalom driving, illegal lane change, and queue jumping.
Traffic Data Collection: Traffic Flow.
Road incident detection: (1) Road incident detection for highways and elevated roads: fallen object detection, pedestrian detection, congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection; (2) Road incident detection for urban roads: congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection
Supports general highway incident detection：supports pothole detection, crack detection, and alligator cracking detection
- General
- General FunctionIP address filter,mirror,password reset via email,third stream
- Vandal-proof AlarmNo
- HeaterYes
- Wiper Model with -W: Yes, Model without -W: No
- De-icingNo
- DemistYes
- Power
12 VDC, 3.33 A, Max. 20 W
Low power local recording scenario in daylight: 3.75 W (4G proactive mode, no preview, supplement light off)
Average power consumption for the device with 4G preview and real-time transmission round-the-clock: 5.1 W (4G preview, no supplement light during the day, supplement light on at night, 5.05 W for 14 hours during the day, 5.95W for 10 hours at night)
- Operating ConditionTemperature: -30°C to 65°C (-22°F to 149°F), Humidity: ≤ 95%
- DimensionØ 218.4 mm × 324.2 mm (Ø 8.6″ × 12.76″)
- Approx. 4.2 kg (9.26 lb.)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Approval
- RFCE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),RCM (AS/NZS CISPR 32: 2015)
- Safety
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
