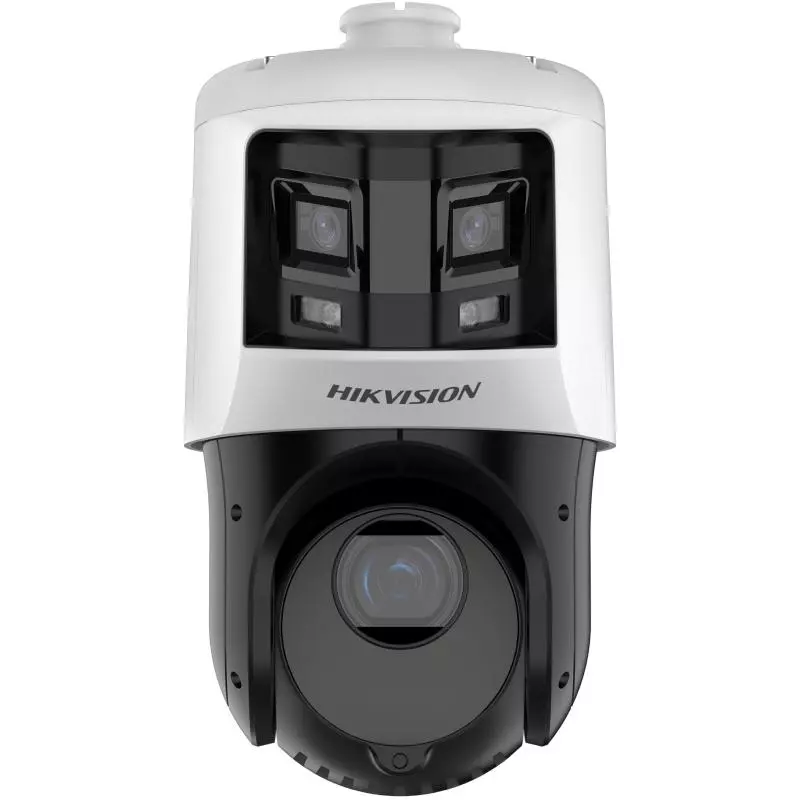

Hikvision DS-2SE4C425MWG-E/26(F0)

Image Sensor

[Bullet channel]: 1/2.5″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS

Max. Resolution

[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440

Min. Illumination

[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;;[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1 s to 1/30,000 s

Day & Night

ICR

Zoom

[PTZ channel] 25 × optical, 16 × digital

Slow Shutter

yes

Focal Length

[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical

FOV

[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;;[PTZ channel]: ;Horizontal field of view: 55° to 2.4° (wide-tele),;Vertical field of view: 33° to 1.4° (wide-tele),;Diagonal field of view: 61.5° to 2.8° (wide-tele)

Focus

semi-auto||manual||auto

Aperture

[Bullet channel]: F1.0; [PTZ channel]: F1.6

Zoom Speed

[PTZ channel]: approx. 3.6 s

Supplement Light Type

[PTZ channel]: IR; [Bullet channel]: White Light

Supplement Light Range

[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m

Smart Supplement Light

Yes

Movement Range (Pan)

360°

Movement Range (Tilt)

-15° to 90° (auto flip)

Pan Speed

pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s

Tilt Speed

tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Pan

yes

Presets

300

Preset Freezing

yes

Patrol Scan

8 patrols, up to 32 presets for each patrol

Pattern Scan

4 pattern scans

Park Action

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan

3D Positioning

yes

PTZ Status Display

yes

Scheduled Task

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output

Power-off Memory

yes

Main Stream

[Bullet channel];50 Hz：25 fps（3632 × 1632，3680 × 1656）;60 Hz：30 fps（3632 × 1632，3680 × 1656）;[PTZ channel];50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）;60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

Sub-Stream

[Bullet channel];50 Hz：25 fps（1200 × 536，960 × 432）;60 Hz：30 fps（1200 × 536，960 × 432）;[PTZ channel];50 Hz：25 fps（704 × 576，640 × 480，352 × 288）;60 Hz：30 fps（704 × 480，640 × 480，352 × 240）

Third Stream

[Bullet channel];No;[PTZ channel];50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288）;60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）

Video Compression

H.265||H.264||MJPEG

Video Bit Rate

32 kbps to 16384 kbps

H.264 Type

baseline profile||main profile||high profile

H.265 Type

main profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

8 fixed regions for each stream

Audio Compression

G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3

Audio Bit Rate

MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Audio Sampling Rate

MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps

Environment Noise Filtering

yes

Protocols

IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets

Simultaneous Live View

20

API

ISAPI,SDK,ISUP,ONVIF

User/Host

32

Security

Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter

Network Storage

NAS (NFS, SMB/ CIFS)|| ANR

Client

iVMS-4200||Hik-Connect

Web Browser

IE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+

Image Parameters Switch

Yes

Image Settings

sharpness, saturation, brightness, contrast

Day/Night Switch

day, night, auto, scheduled-switch

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Defog

Digital defog

Image Stabilization

EIS

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

Regional Focus

Yes

Regional Exposure

Yes

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

On-board Storage

Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB

Audio

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω

Alarm

1 alarm input, 1 alarm output

Reset

yes

Basic Event

[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)

Smart Event

[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)

Smart Linkage

Panorama Linkage

Face Capture

Detects up to 5 faces simultaneously,;Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

Power

12VDC, PoE+

Dimension

Ø 166 mm × 375 mm (Ø 6.5″ × 14.7″)

Weight

Approx. 2.4 kg (13.2 lb.)

Material

ADC12

Operating Condition

-30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH

General Function

mirror,watermark,password protection

Demist

Demist by heating the glass

Power Consumption andCurrent

Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light

Protection

IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
