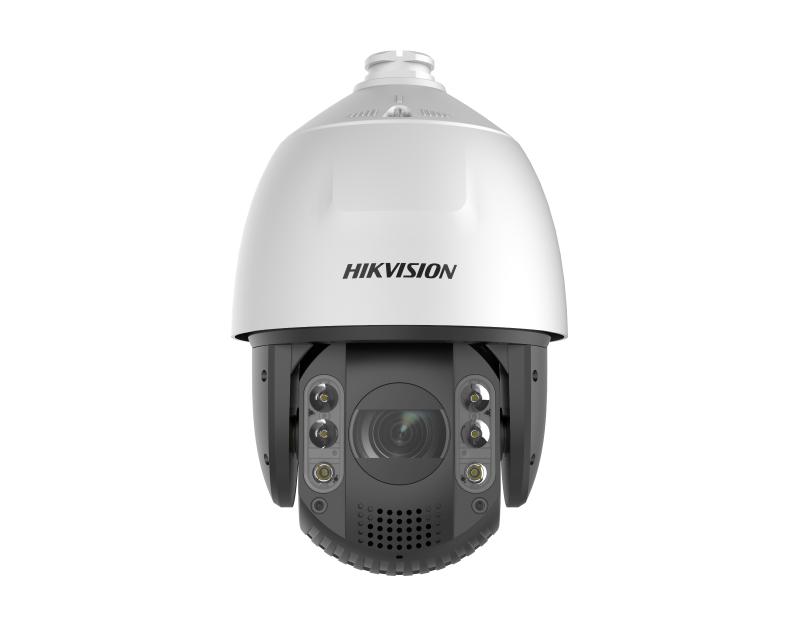

DarkFighter ilə təchiz olunmuş 4 MP 25X IR+White Light şəbəkə Speed Dome kamera
DarkFighter ilə təchiz olunmuş 4 MP 25X IR+White Light şəbəkə Speed Dome kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/2.5″ progressive scan CMOS
- Max. Resolution3200 × 1800
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1/1 s to 1/30000 s
- Slow ShutterYes
- Day & NightIR cut filter
- Zoom32x optical, 16x digital
- Lens
- Focal Length5.5 mm to 176 mm
- Zoom SpeedApprox. 2.7 s
- FOV
Horizontal field of view: 60.7° to 2.2° (wide-tele),
Vertical field of view: 35.9° to 1.2° (wide-tele),
Diagonal field of view: 68.4° to 2.6° (wide-tele)
- ApertureMax. F1.6
- Focus Auto, semi-auto, manual
- Illuminator
- Supplement Light RangeIR Distance: up to 200 m
- Supplement Light TypeIR
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional PanYes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-off MemoryYes
- Park ActionPreset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Preset FreezingYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Video
- Main Stream
50Hz:25fps (3200×1800,2560×1440,1920×1080,1280×960,1280×720);
60Hz:24fps (3200×1800,2560×1440,1920×1080,1280×960,1280×720)
- Sub-Stream
50Hz:25fps (704×576,640×480,352×288);
60Hz:24fps (704×480,640×480,352×240)
- Third Stream
50Hz: 10fps (704×576,640×480,352×288);
60Hz: 10fps (704×480,640×480,352×240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users, 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+
- Image
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Wide Dynamic Range (WDR)True WDR
- DefogDigital defog
- Image StabilizationEIS
- Regional ExposureYes
- Regional FocusYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- SNR> 52 dB
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Alarm2 inputs, 1 output
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- ResetYes
- Built-in Speaker1 built-in speaker with effective distance reaching max. 30 meters
- Event
- Basic EventMotion detection, video tampering alarm, exception, alarm input and output
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Smart TrackingManual tracking, auto-tracking
- Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Face Capture
Supports Detects up to 5 faces simultaneously;
Supports best shot and quick shot for capture mode
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
36 VDC, max. 30 W (including max. 9 W for IR and max. 2 W for heater);
Hi-PoE
- Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- DemistYes
- MaterialADC12
- DimensionØ 220 mm × 363.3 mm (Ø 8.66″ × 13.91″)
- Approx. 5 kg (11.03 lb.)
- Approval
- ProtectionIP67 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
- EMC
CE-EMC (EN 55032:2015+A11:2020+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021);
IC (ICES-003: Issue 7: 2020);
- Safety
CB (IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017);
LOA (SANS IEC60950-1)
- Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
