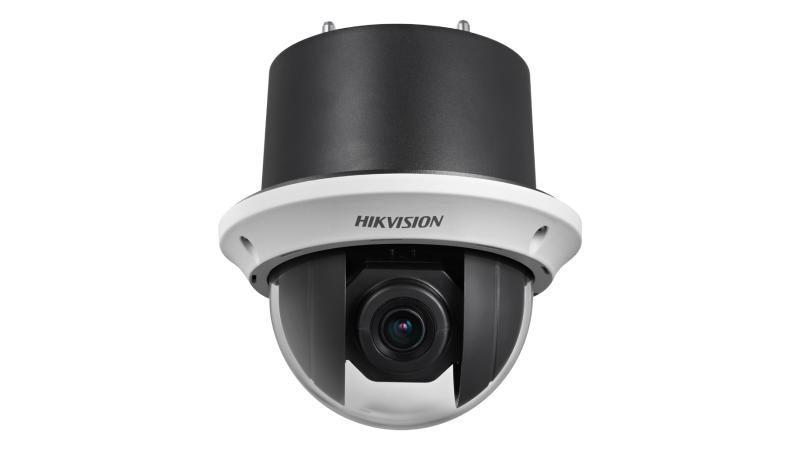

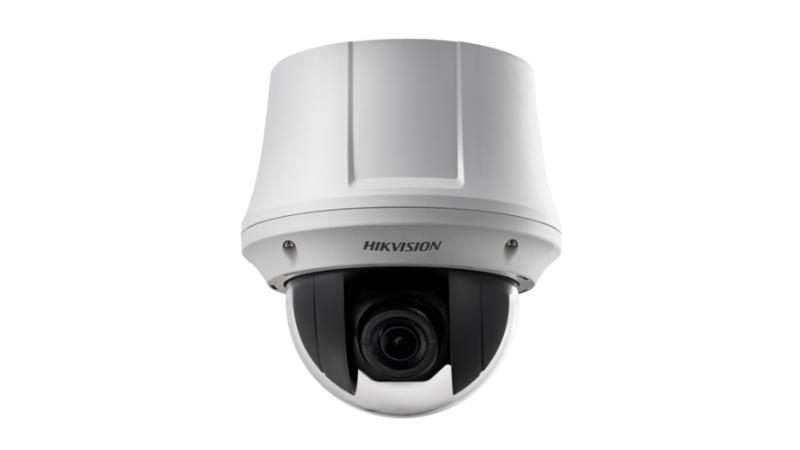

DarkFighter 15X 4 düymlük 2MP IR Analoq Sürətli Günbəz Kamerası
DarkFighter 15X 4 düymlük 2MP IR Analoq Sürətli Günbəz Kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
- Shutter Speed
PAL: 1/1 s to 1/30,000 s
NTSC: 1/1 s to 1/30,000 s
- Day & NightIR cut filter
- Zoom15 × optical, 16 × digital
- Lens
- Focal Length4.8 mm to 72 mm, 15 × optical
- FOV
Horizontal FOV: 57.6° to 4° (wide to tele)
Vertical FOV: 34.4° to 2.2° (wide to tele)
Diagonal FOV: 64.5° to 4.6° (wide to tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom SpeedApprox. 2.4 s (optical, wide to tele)
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)-5° to 90° (auto flip)
- Pan Speed
Pan manual speed: 0.1° to 100°/s
Pan preset speed: 100°/s
- Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
- Proportional PanRotation speed can be adjusted automatically according to zoom multiples
- Presets256
- Preset FreezingYes
- Patrol Scan10 patrols, up to 32 presets for each patrol
- Pattern Scan5 patterns, record time over 10 minutes for each scan
- Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None
- Scheduled TaskPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
- Power-off MemoryYes
- Video
- Frame Rate
50 Hz: 25 fps @(1920 × 1080)
60 Hz: 30 fps @(1920 × 1080)
- Network
- ProtocolsUTC protocol (or HIKVISION-C protocol in previous DVR)
- Image
- Image SettingsAGC, white balance
- Wide Dynamic Range (WDR)≥ 120 dB
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask8 programmable privacy masks
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
- Alarm2 alarm inputs, 1 alarm output
- RS-485
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
- General
- Power12 VDC, max. 12 W
- Dimension
DS-2AE4225TG-3 (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5″ × 7.1″)
DS-2AE4225TG-3 (In-ceiling): Ø 165 × 168 mm (Ø 6.5 × 6.6″)”
- Approx. 2 kg (4.41 lb.)
- Operating Condition-10° C to 50° C (14° F to 122° F). Humidity 90% or less
- LanguageEnglish
- Approval
- ProtectionTVS 4,000 V lightning protection, surge protection and voltage transient protection
