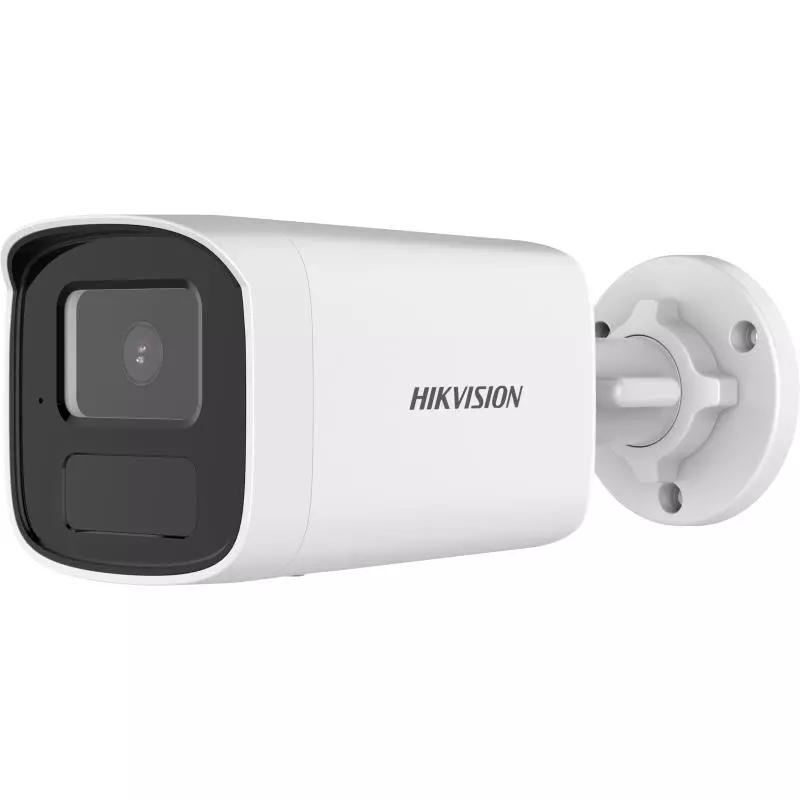

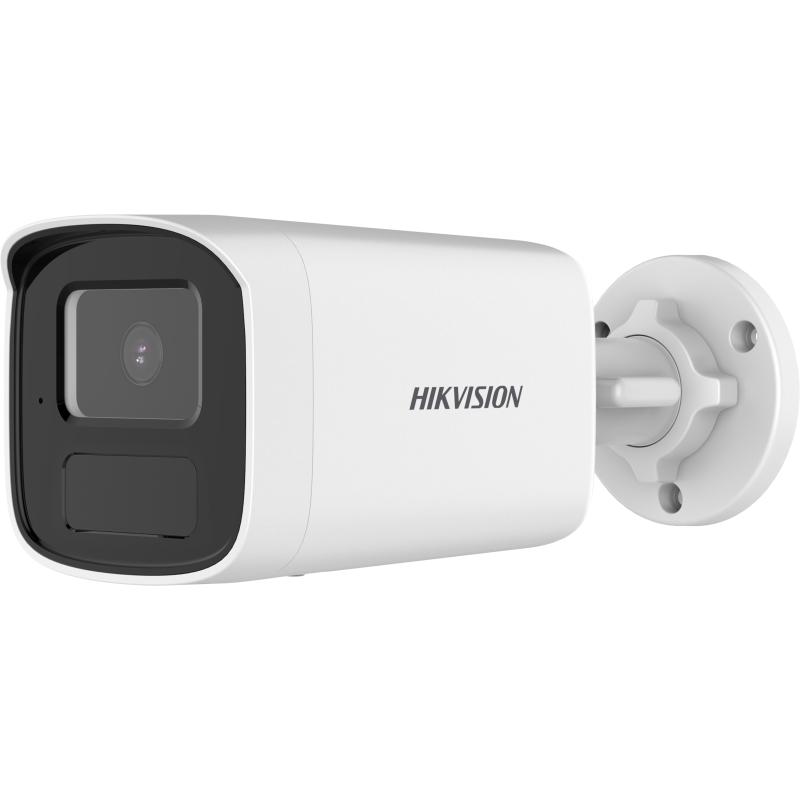

Qiymət sorğusu- Camera
- Image Sensor1/2.7″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100, 000 s
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
- Lens
- Focal Length & FOV2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133°
4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 109°
6 mm, horizontal FOV 56°, vertical FOV 29°, diagonal FOV 65° - Lens MountM12
- ApertureF1.6
- O2DCPVS
- DORI2.8 mm: D: 43 m, O: 17 m, R: 9 m, I: 5 m
4 mm: D: 53 m, O: 21 m, R: 11 m, I: 6 m
6 mm: D: 86 m, O: 34 m, R: 17 m, I: 9 m
- Illuminator
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720) - Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) - Third Stream50 Hz: 1 fps (640 × 360)
60 Hz: 1 fps (640 × 360) - Video Compression Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 - Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps(AAC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web BrowserPlug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in MicrophoneYes
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
- Reset KeyYes
- Event
- Basic Event Motion detection, video tampering alarm, exception
- Smart EventLine crossing detection, intrusion detection
- LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture;
- General
- Power12 VDC ± 25%, 0.55 A, max. 6.5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.14 A, max. 8.5 W - MaterialMetal & Plastic
- Dimension83.7 mm × 80.7 mm × 205.6 mm (3.3″ × 3.2″× 8.1″)
- Package Dimension260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″)
- Approx. 430 g (0.95 lb.)
- With Package WeightApprox. 648 g (1.42 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMCFCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
KC (KN 32: 2015, KN 35: 2015) - SafetyUL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005) - EnvironmentCE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006) - ProtectionIP67 (IEC 60529-2013)
