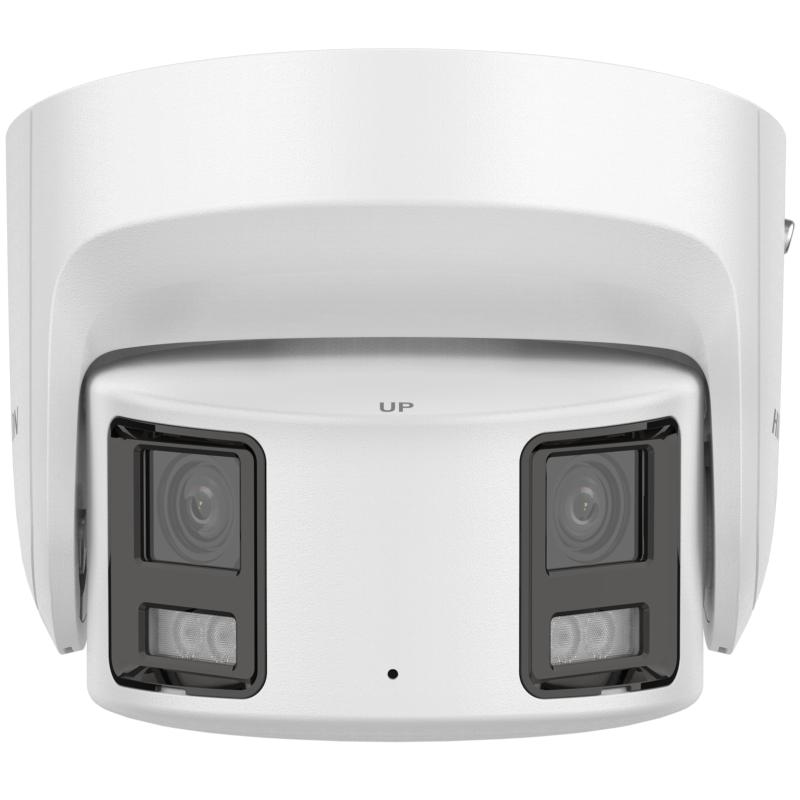

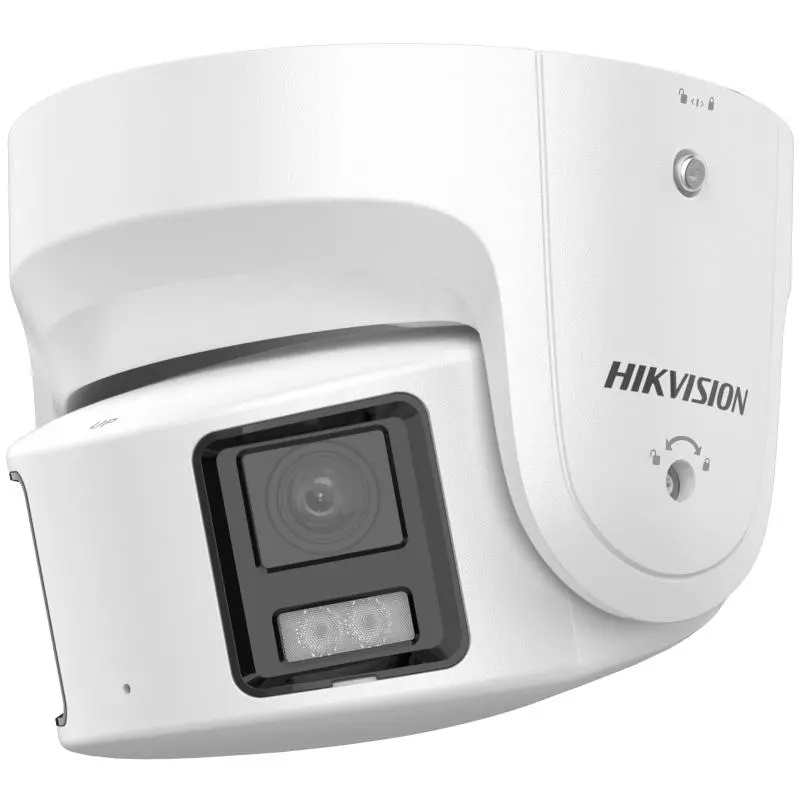

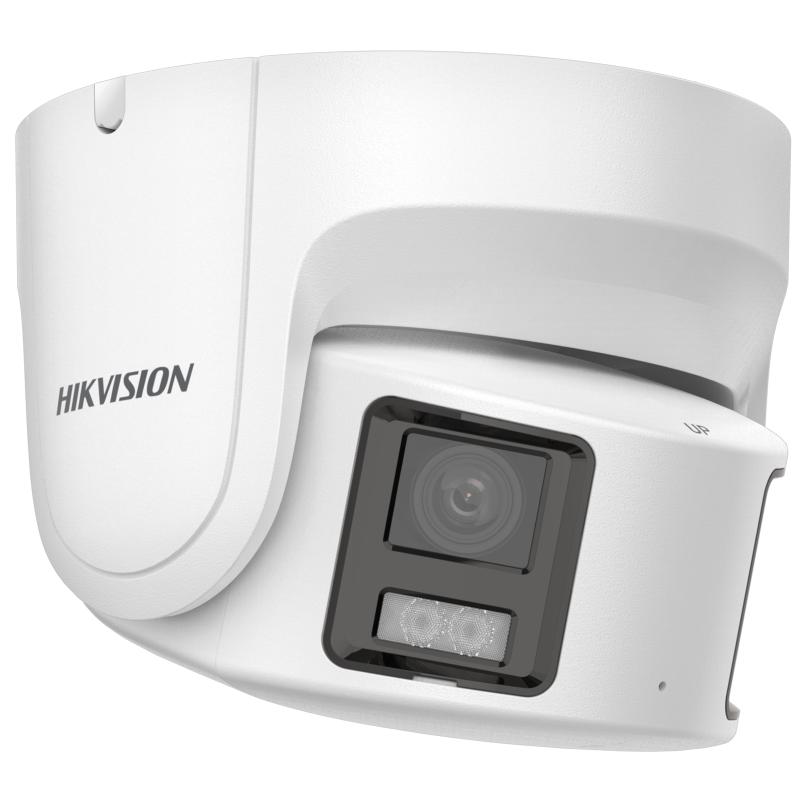

Hikvision DS-2CD3387G2P-LSU/SL

Image Sensor

2 × 1/1.8″ Progressive Scan CMOS

Max. Resolution

5120 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Angle Adjustment

Pan: 0° to 30°,tilt: -75° to 75°

Lens Type

Fixed focal lens, dual lens: 4 mm

Focal Length & FOV

4 mm, horizontal FOV 180° ± 10°, vertical FOV 44°

Lens Mount

M16

Iris Type

Fixed

Aperture

F1.0

Depth of Field

3.6 m to ∞

DORI

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Supplement Light Type

White Light

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

Main Stream

When WDR is On:;50 Hz: 12.5 fps (5120 × 1440);60 Hz: 15 fps (5120 × 1440);When WDR is Off:;50 Hz: 20 fps (5120 × 1440);60 Hz: 20 fps (5120 × 1440)

Sub-Stream

When WDR is On:;50 Hz: 12.5 fps (1920 × 536, 960 × 272);60 Hz: 15 fps (1920 × 536, 960 × 272);When WDR is Off:;50 Hz: 20 fps (1920 × 536, 960 × 272);60 Hz: 20 fps (1920 × 536, 960 × 272)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11 ,;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

130 dB

SNR

≥ 52 dB

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

8 rectangular privacy masks

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes

Built-in Speaker

Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC, 1 A)

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception

Smart Event

;Scene change detection,audio exception detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle)

Power

12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,;PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

Material

Base: metal, cover: metal

Dimension

;Ø155 mm × 155.7 mm (Ø6.1 × 6.1″)””

Package Dimension

230 mm × 230 mm × 230 mm (9″” × 9″” × 9″”)

Weight

Approx. 1110 g (2.4 lb.)

With Package Weight

Approx. 1900 g (4.2 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English
