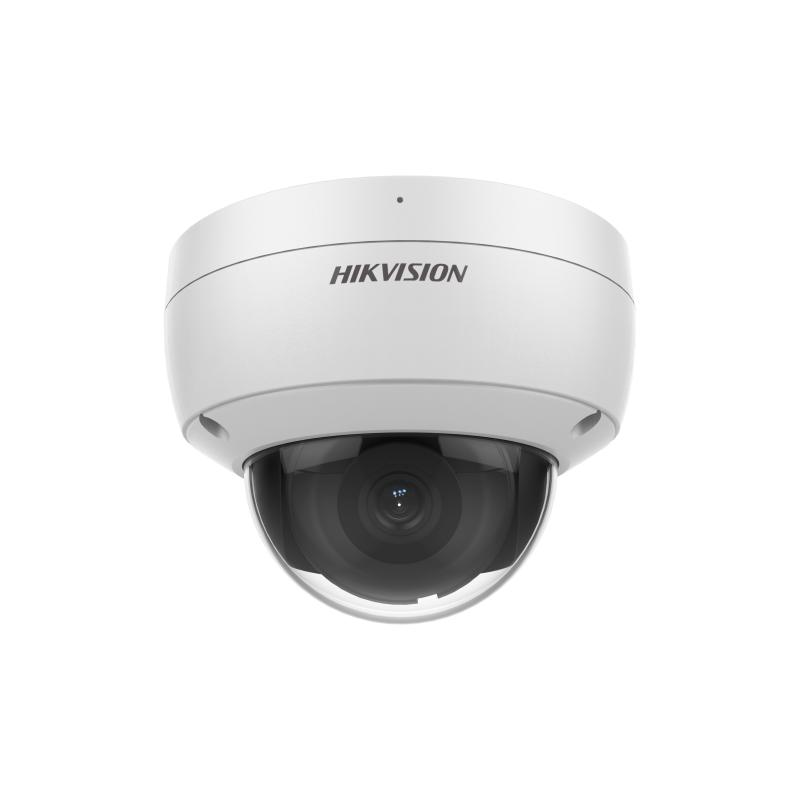

Hikvision DS-2CD3156G2-IS(U)

1/2.7″ Progressive Scan CMOS

2592 × 1944

Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR

1/3 s to 1/100,000 s

IR cut filter

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Fixed focal lens, 2.8, 4, and 6 mm optional

2.8 mm, horizontal FOV 98°, vertical FOV 72°, diagonal FOV 131°
4 mm, horizontal FOV 80°, vertical FOV 58°, diagonal FOV 104°
6 mm, horizontal FOV 51°, vertical FOV 37°, diagonal FOV 66°

M12

Fixed

F1.4

2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m
6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m

IR

Up to 40 m

Yes

850 nm

50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (2592 × 1944)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
*Fourth stream is supported under certain settings.

Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG
*Third stream and fourth stream are supported under certain settings.

32 Kbps to 16 Mbps

Baseline Profile/Main Profile/High Profile

Main Profile

CBR/VBR

H.264 and H.265 encoding

5 fixed regions for main stream and sub-stream

Yes

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Yes

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP

Up to 6 channels

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Up to 32 users. 3 user levels: administrator, operator and user

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

iVMS-4200, Hik-Connect, Hik-Central

Plug-in required live view: IE 10+
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Yes

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day, Night, Auto, Schedule

120 dB

≥ 52 dB

BLC, HLC, 3D DNR

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

-U: Yes

1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 2.5 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

1 input, 1 output (max. 12 VDC, 30 mA)

Yes

12 VDC, max. 100 mA (supported by all power supply types)

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Unattended baggage detection, object removal detection, scene change detection, audio exception detection

Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Yes

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

12 VDC ± 25%, 0.6 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W

Ø121.4 mm × 92.2 mm (Ø4.8″ × 3.6″)

150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

Approx. 580 g (1.3 lb.)

Approx. 820 g (1.8 lb.)

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)

UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)

CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
